Wear sleeves (4)

SKF 99180 Wear sleeves

Shaft diameter 44.45 mm

Shaft diameter maximum 44.53 mm

Shaft diameter minimum 44.37 mm

Removable flange outside diameter 52.4 mm

Seal seat width 13.49 mm

Code: 99180

€0.00

(*The price will be determined)

On Request

SKF 99205 Wear sleeves

Shaft diameter 52.4 mm

Shaft diameter maximum 52.4 mm

Shaft diameter minimum 52.25 mm

Removable flange outside diameter 62.71 mm

Seal seat width 19.84 mm

Code: 99205

€0.00

(*The price will be determined)

On Request

SKF 99106 Wear sleeves

Shaft diameter 27 mm

Shaft diameter maximum 27.03 mm

Shaft diameter minimum 26.92 mm

Removable flange outside diameter 33.53 mm

Seal seat width 7.95 mm

Code: 99106

€0.00

(*The price will be determined)

On Request

SKF 99166 Wear sleeves

Shaft diameter 41.91 mm

Shaft diameter maximum 42.01 mm

Shaft diameter minimum 41.83 mm

Removable flange outside diameter 53.01 mm

Seal seat width 11.3 mm

Code: 99166

€0.00

(*The price will be determined)

On Request

SKF 99122 Wear sleeves

Shaft diameter 29.85 mm

Shaft diameter maximum 29.92 mm

Shaft diameter minimum 29.79 mm

Removable flange outside diameter 35.56 mm

Seal seat width 7.95 mm

Code: 99122

€0.00

(*The price will be determined)

On Request

SKF 99227 Wear sleeves

Shaft diameter 57.15 mm

Shaft diameter maximum 57.28 mm

Shaft diameter minimum 57.12 mm

Removable flange outside diameter 64.29 mm

Seal seat width 7.95 mm

Code: 99227

€0.00

(*The price will be determined)

On Request

SKF 99256 Wear sleeves

Shaft diameter 65.1 mm

Shaft diameter maximum 65.18 mm

Shaft diameter minimum 65.02 mm

Removable flange outside diameter 73.43 mm

Seal seat width 19.84 mm

Code: 99256

€0.00

(*The price will be determined)

On Request

SKF 99103 Wear sleeves

Shaft diameter 26.01 mm

Shaft diameter maximum 26.01 mm

Shaft diameter minimum 25.88 mm

Removable flange outside diameter 33.35 mm

Seal seat width 8 mm

Code: 99103

€0.00

(*The price will be determined)

On Request

SKF 99210 Wear sleeves

Shaft diameter 53.98 mm

Shaft diameter maximum 54.05 mm

Shaft diameter minimum 53.92 mm

Removable flange outside diameter 61.52 mm

Seal seat width 12.7 mm

Code: 99210

€0.00

(*The price will be determined)

On Request

SKF 99167 Wear sleeves

Shaft diameter 42.88 mm

Shaft diameter maximum 42.95 mm

Shaft diameter minimum 42.8 mm

Removable flange outside diameter 48.41 mm

Seal seat width 7.95 mm

Code: 99167

€0.00

(*The price will be determined)

On Request

SKF 99190 Wear sleeves

Shaft diameter 47.63 mm

Shaft diameter maximum 47.7 mm

Shaft diameter minimum 47.55 mm

Removable flange outside diameter 55.96 mm

Seal seat width 4.45 mm

Code: 99190

€0.00

(*The price will be determined)

On Request

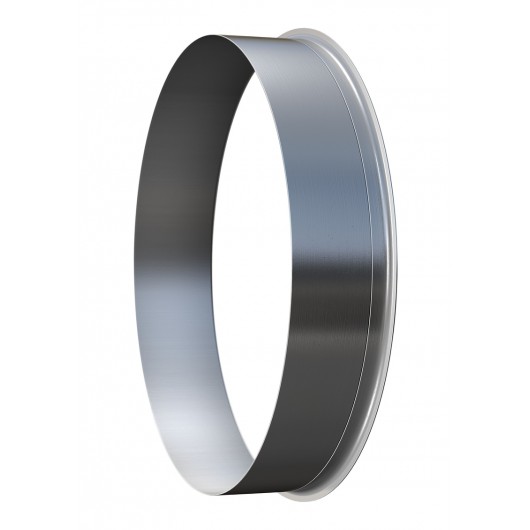

SKF 99123 Wear sleeves

Shaft diameter 30.96 mm

Shaft diameter maximum 31.04 mm

Shaft diameter minimum 30.89 mm

Removable flange outside diameter 39.7 mm

Seal seat width 7.95 mm

Code: 99123

€0.00

(*The price will be determined)

On Request

SKF 99286 Wear sleeves

Shaft diameter 72.87 mm

Shaft diameter maximum 72.95 mm

Shaft diameter minimum 72.8 mm

Removable flange outside diameter 80.98 mm

Seal seat width 19.84 mm

Code: 99286

€0.00

(*The price will be determined)

On Request

SKF 99229 Wear sleeves

Shaft diameter 56.64 mm

Shaft diameter maximum 56.72 mm

Shaft diameter minimum 56.57 mm

Removable flange outside diameter 64.29 mm

Seal seat width 12.7 mm

Code: 99229

€0.00

(*The price will be determined)

On Request

SKF 99259 Wear sleeves

Shaft diameter 65.99 mm

Shaft diameter maximum 66.07 mm

Shaft diameter minimum 65.91 mm

Removable flange outside diameter 75.95 mm

Seal seat width 19.84 mm

Code: 99259

€0.00

(*The price will be determined)

On Request

SKF 99156 Wear sleeves

Shaft diameter 39.67 mm

Shaft diameter maximum 39.75 mm

Shaft diameter minimum 39.6 mm

Removable flange outside diameter 47.22 mm

Seal seat width 14.3 mm

Code: 99156

€0.00

(*The price will be determined)

On Request

SKF 99141 Wear sleeves

Shaft diameter 31.5 mm

Shaft diameter maximum 31.57 mm

Shaft diameter minimum 31.42 mm

Removable flange outside diameter 39.12 mm

Seal seat width 8 mm

Code: 99141

€0.00

(*The price will be determined)

On Request

SKF 99324 Wear sleeves

Shaft diameter 82.55 mm

Shaft diameter maximum 82.7 mm

Shaft diameter minimum 82.55 mm

Removable flange outside diameter 90.81 mm

Seal seat width 15.11 mm

Code: 99324

€0.00

(*The price will be determined)

On Request

SKF 99242 Wear sleeves

Shaft diameter 61.93 mm

Shaft diameter maximum 62 mm

Shaft diameter minimum 61.85 mm

Removable flange outside diameter 71.83 mm

Seal seat width 12.7 mm

Code: 99242

€0.00

(*The price will be determined)

On Request

SKF 99299 Wear sleeves

Shaft diameter 76.02 mm

Shaft diameter maximum 76.1 mm

Shaft diameter minimum 75.95 mm

Removable flange outside diameter 85.09 mm

Seal seat width 20.65 mm

Code: 99299

€0.00

(*The price will be determined)

On Request

SKF 99059 Wear sleeves

Shaft diameter 15.01 mm

Shaft diameter maximum 15.06 mm

Shaft diameter minimum 14.96 mm

Removable flange outside diameter 19.05 mm

Seal seat width 5 mm

Code: 99059

€0.00

(*The price will be determined)

On Request

SKF 99179 Wear sleeves

Shaft diameter 45.24 mm

Shaft diameter maximum 45.31 mm

Shaft diameter minimum 45.16 mm

Removable flange outside diameter 53.98 mm

Seal seat width 16.94 mm

Code: 99179

€0.00

(*The price will be determined)

On Request

SKF 99273 Wear sleeves

Shaft diameter 69.67 mm

Shaft diameter maximum 69.75 mm

Shaft diameter minimum 69.6 mm

Removable flange outside diameter 77.85 mm

Seal seat width 19.84 mm

Code: 99273

€0.00

(*The price will be determined)

On Request

SKF 99168 Wear sleeves

Shaft diameter 42.88 mm

Shaft diameter maximum 42.93 mm

Shaft diameter minimum 42.77 mm

Removable flange outside diameter 48.41 mm

Seal seat width 14.3 mm

Code: 99168

€0.00

(*The price will be determined)

On Request

SKF 99125 Wear sleeves

Shaft diameter 31.75 mm

Shaft diameter maximum 31.83 mm

Shaft diameter minimum 31.67 mm

Removable flange outside diameter 38.1 mm

Seal seat width 7.95 mm

Code: 99125

€0.00

(*The price will be determined)

On Request

SKF 99230 Wear sleeves

Shaft diameter 56.64 mm

Shaft diameter maximum 56.72 mm

Shaft diameter minimum 56.57 mm

Removable flange outside diameter 64.29 mm

Seal seat width 19.84 mm

Code: 99230

€0.00

(*The price will be determined)

On Request

SKF 99192 Wear sleeves

Shaft diameter 48.56 mm

Shaft diameter maximum 48.64 mm

Shaft diameter minimum 48.49 mm

Removable flange outside diameter 56.36 mm

Seal seat width 9.53 mm

Code: 99192

€0.00

(*The price will be determined)

On Request

SKF 99260 Wear sleeves

Shaft diameter 66.68 mm

Shaft diameter maximum 66.75 mm

Shaft diameter minimum 66.6 mm

Removable flange outside diameter 77.39 mm

Seal seat width 12.7 mm

Code: 99260

€0.00

(*The price will be determined)

On Request

SKF 99108 Wear sleeves

Shaft diameter 27.66 mm

Shaft diameter maximum 27.71 mm

Shaft diameter minimum 27.61 mm

Removable flange outside diameter 35.71 mm

Seal seat width 7.95 mm

Code: 99108

€0.00

(*The price will be determined)

On Request

SKF 99243 Wear sleeves

Shaft diameter 61.93 mm

Shaft diameter maximum 62 mm

Shaft diameter minimum 61.82 mm

Removable flange outside diameter 71.83 mm

Seal seat width 19.84 mm

Code: 99243

€0.00

(*The price will be determined)

On Request

SKF 99143 Wear sleeves

Shaft diameter 36.53 mm

Shaft diameter maximum 36.53 mm

Shaft diameter minimum 36.37 mm

Removable flange outside diameter 45.24 mm

Seal seat width 14.3 mm

Code: 99143

€0.00

(*The price will be determined)

On Request

SKF 99878 Wear sleeves

Shaft diameter 51.99 mm

Shaft diameter maximum 51.99 mm

Shaft diameter minimum 51.82 mm

Removable flange outside diameter 62.71 mm

Seal seat width 12.7 mm

Code: 99878

€0.00

(*The price will be determined)

On Request
