DURBAL DSIL 10 T/K M10x1,25 Rod ends, maintenance free

DURBAL DSIL 10 T/K M10x1,25 Rod ends,...

Bore diameter 10 mm
Housing length total 57 mm
Diameter Head 28 mm
Thread G M10x1.25
Code: DSIL 10 T/K M10x1,25
Price €0.00
(*The price will be determined)
  On Request
DURBAL DSIL 05 T/K M4 Rod ends, maintenance free

DURBAL DSIL 05 T/K M4 Rod ends,...

Bore diameter 5 mm
Housing length total 36 mm
Diameter Head 18 mm
Thread G M4
Code: DSIL 05 T/K M4
Price €0.00
(*The price will be determined)
  On Request

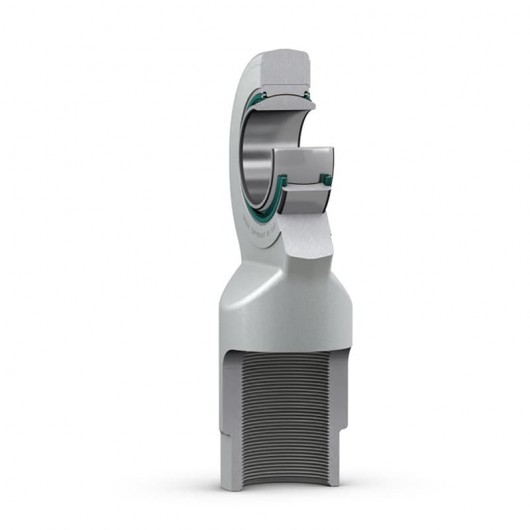

SKF SI 60 TXE-2LS Rod ends

SKF SI 60 TXE-2LS Rod ends

Bore diameter 60 mm
Centre height housing from end of shank 225 mm
Housing length total 296 mm
Width bearing inner ring 44 mm
Width housing eye 39 mm
Diameter Head 137 mm
Thread G M60x4
Code: SI 60 TXE-2LS
Price €0.00
(*The price will be determined)
  On Request
SKF SIKB 14 F Rod ends

SKF SIKB 14 F Rod ends

Bore diameter 14 mm
Centre height housing from end of shank 57 mm
Housing length total 77 mm
Width bearing inner ring 19 mm
Width housing eye 14.5 mm
Diameter Head 37 mm
Thread G M14
Code: SIKB 14 F
Price €59.96
*Prices with vat
  On Request
SKF SIKB 12 F/VZ019 Rod ends

SKF SIKB 12 F/VZ019 Rod ends

Bore diameter 12 mm
Centre height housing from end of shank 50 mm
Housing length total 68 mm
Width bearing inner ring 16 mm
Width housing eye 12.5 mm
Diameter Head 33 mm
Thread G M12x1.25
Code: SIKB 12 F/VZ019
Price €37.56
*Prices with vat
  On Request
SKF SIKB 12 F Rod ends

SKF SIKB 12 F Rod ends

Bore diameter 12 mm
Centre height housing from end of shank 50 mm
Housing length total 68 mm
Width bearing inner ring 16 mm
Width housing eye 12.5 mm
Diameter Head 33 mm
Thread G M12
Code: SIKB 12 F
Price €35.54
*Prices with vat
  On Request
SKF SIKB 10 F/VZ019 Rod ends

SKF SIKB 10 F/VZ019 Rod ends

Bore diameter 10 mm
Centre height housing from end of shank 43 mm
Housing length total 59 mm
Width bearing inner ring 14 mm
Width housing eye 11.5 mm
Diameter Head 29 mm
Thread G M10x1.25
Code: SIKB 10 F/VZ019
Price €35.86
*Prices with vat
  On Request
SKF SIKB 10 F Rod ends

SKF SIKB 10 F Rod ends

Bore diameter 10 mm
Centre height housing from end of shank 43 mm
Housing length total 59 mm
Width bearing inner ring 14 mm
Width housing eye 11.5 mm
Diameter Head 29 mm
Thread G M10
Code: SIKB 10 F
Price €31.05
*Prices with vat
  On Request
SKF SIA 50 TXE-2LS Rod ends

SKF SIA 50 TXE-2LS Rod ends

Bore diameter 50 mm
Centre height housing from end of shank 160 mm
Housing length total 219 mm
Width bearing inner ring 35 mm
Width housing eye 31 mm
Diameter Head 114 mm
Thread G M45x3
Code: SIA 50 TXE-2LS
Price €521.35
*Prices with vat
  On Request
SKF SIA 45 TXE-2LS Rod ends

SKF SIA 45 TXE-2LS Rod ends

Bore diameter 45 mm
Centre height housing from end of shank 145 mm
Housing length total 199 mm
Width bearing inner ring 32 mm
Width housing eye 28 mm
Diameter Head 104 mm
Thread G M42x3
Code: SIA 45 TXE-2LS
Price €481.88
*Prices with vat
  On Request
SKF SIA 40 TXE-2LS Rod ends

SKF SIA 40 TXE-2LS Rod ends

Bore diameter 40 mm
Centre height housing from end of shank 142 mm
Housing length total 191 mm
Width bearing inner ring 28 mm
Width housing eye 24 mm
Diameter Head 94 mm
Thread G M39x3
Code: SIA 40 TXE-2LS
Price €343.56
*Prices with vat
  On Request
SKF SI 8 C Rod ends

SKF SI 8 C Rod ends

Bore diameter 8 mm
Centre height housing from end of shank 36 mm
Housing length total 50 mm
Width bearing inner ring 8 mm
Width housing eye 6.5 mm
Diameter Head 25 mm
Thread G M8
Code: SI 8 C
Price €41.36
*Prices with vat
  On Request
SKF SI 70 TXE-2LS Rod ends

SKF SI 70 TXE-2LS Rod ends

Bore diameter 70 mm
Centre height housing from end of shank 265 mm
Housing length total 349 mm
Width bearing inner ring 49 mm
Width housing eye 43 mm
Diameter Head 162 mm
Thread G M72x4
Code: SI 70 TXE-2LS
Price €0.00
(*The price will be determined)
  On Request
SKF SI 6 C Rod ends

SKF SI 6 C Rod ends

Bore diameter 6 mm
Centre height housing from end of shank 30 mm
Housing length total 43 mm
Width bearing inner ring 6 mm
Width housing eye 4.5 mm
Diameter Head 22 mm
Thread G M6
Code: SI 6 C
Price €60.80
*Prices with vat
  On Request
SKF SIKB 16 F/VZ019 Rod ends

SKF SIKB 16 F/VZ019 Rod ends

Bore diameter 16 mm
Centre height housing from end of shank 64 mm
Housing length total 87 mm
Width bearing inner ring 21 mm
Width housing eye 15.5 mm
Diameter Head 43 mm
Thread G M16x1.5
Code: SIKB 16 F/VZ019
Price €77.05
*Prices with vat
  On Request
SKF SI 50 TXE-2LS Rod ends

SKF SI 50 TXE-2LS Rod ends

Bore diameter 50 mm
Centre height housing from end of shank 195 mm
Housing length total 254 mm
Width bearing inner ring 35 mm
Width housing eye 31 mm
Diameter Head 114 mm
Thread G M52x3
Code: SI 50 TXE-2LS
Price €482.90
*Prices with vat
  On Request
