SKF H 217 Adapter sleeves

SKF H 217 Adapter sleeves

Product Code: H 217
Part/No: 043485
Brand: SKF
Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB lock washer.
Easy to install
Complete with lock nut
Complete with locking device
€191.37
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 75 mm
Outside diameter 85 mm
Width 50 mm
Performance
Basic dynamic load rating 50
Basic static load rating 18
Properties
Thread designation M85x2
Holes for oil injection Without
Holes for oil injection 2 Without
Taper 1:12
Logistics
Pack gross weight 1.092 kg
eClass name Counternut
EAN 7316577008411
Product net weight 0.91 kg

Related Products

4 other products in the same category:

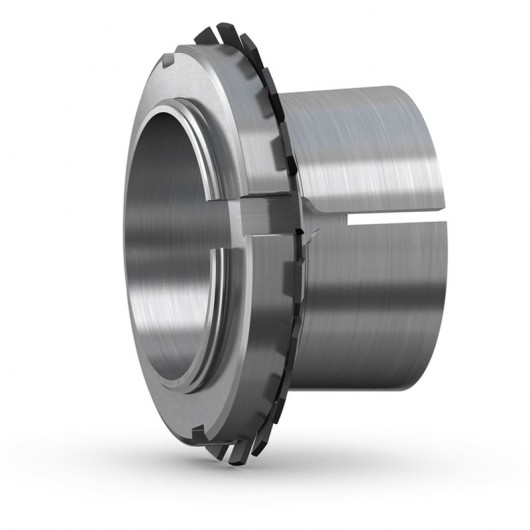

SKF H 2336 Adapter sleeves
