SKF H 3148 Adapter sleeves

SKF H 3148 Adapter sleeves

Product Code: H 3148
Part/No: Eshop012247
Brand: SKF

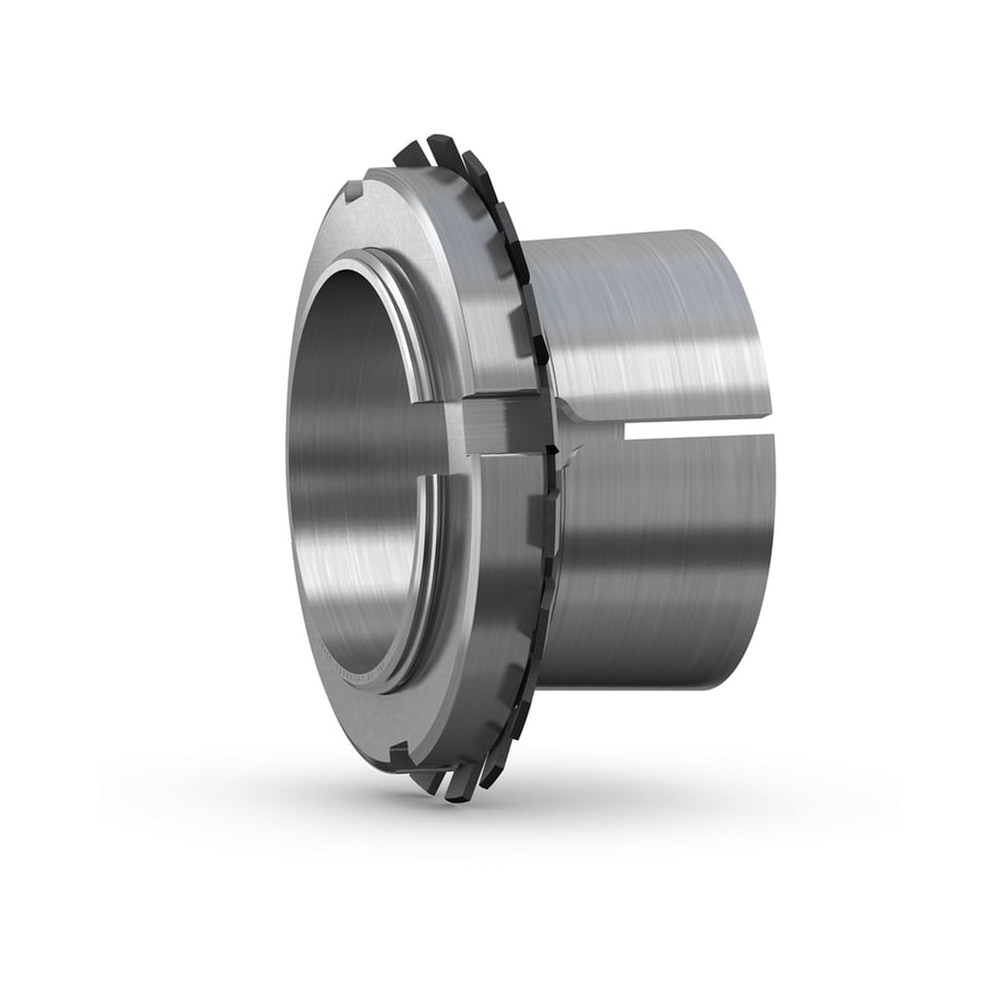

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a HM .. T lock nut and a MB lock washer.
Easy to install
Complete with lock nut
Complete with locking device
€3,178.22
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 220 mm
Outside diameter 240 mm
Width 172 mm
Performance
Basic dynamic load rating 172
Basic static load rating 37
Properties
Thread designation Tr 240x4
Holes for oil injection Without
Holes for oil injection 2 Without
Taper 1:12
Logistics
Pack gross weight 18.6 kg
eClass name Counternut
EAN 7316577009098
Product net weight 14 kg
