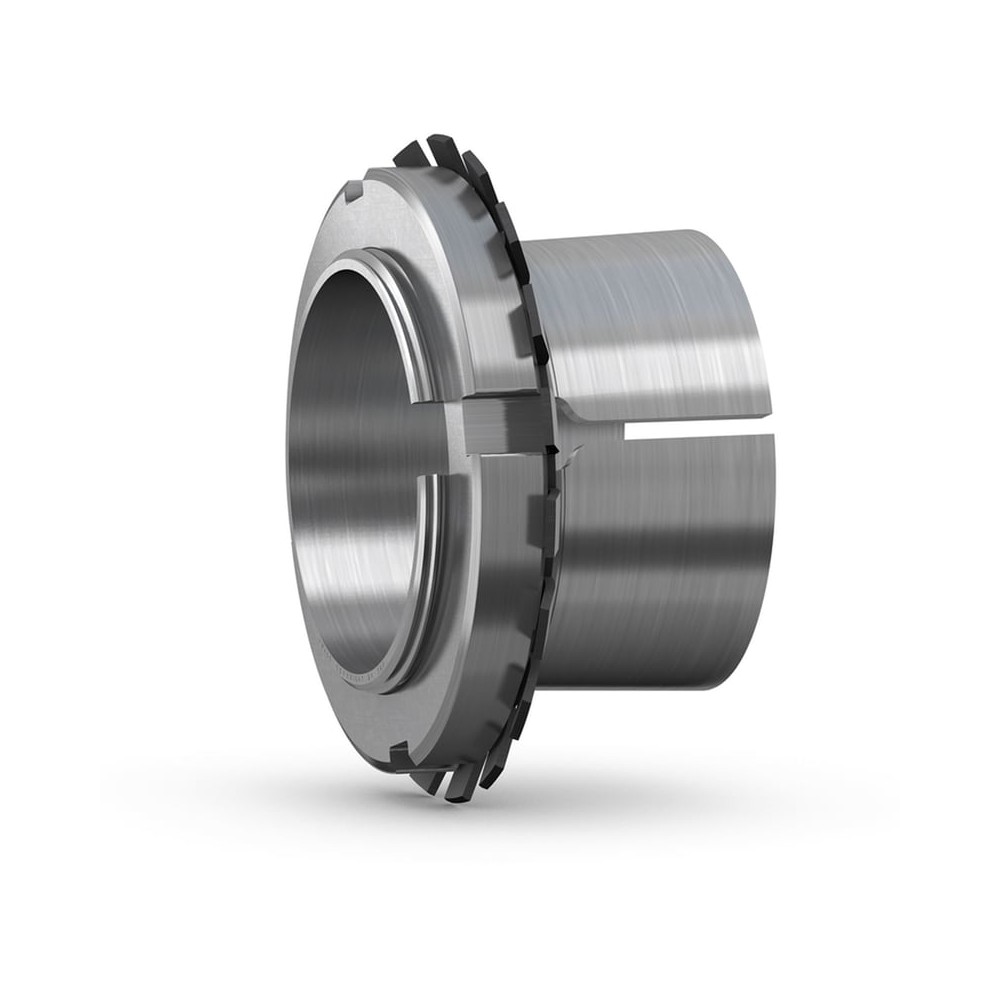

SKF H 317 Adapter sleeves

SKF H 317 Adapter sleeves

Product Code: H 317
Part/No: 043491
Brand: SKF
Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB lock washer.
Easy to install
Complete with lock nut
Complete with locking device
€178.62
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Dimensions
Bore diameter 75 mm
Outside diameter 85 mm
Width 63 mm
Performance
Basic dynamic load rating 63
Basic static load rating 18
Properties
Thread designation M85x2
Holes for oil injection Without
Holes for oil injection 2 Without
Taper 1:12
Logistics
Pack gross weight 1.182 kg
eClass name Counternut
EAN 7316577008572
Product net weight MS 3164
