SKF 7205 BEGA-2RZP Angular contact ball bearings

SKF 7205 BEGA-2RZP Angular contact ball bearings

Product Code: 7205 BEGA-2RZP
Part/No: Eshop008843
Brand: SKF

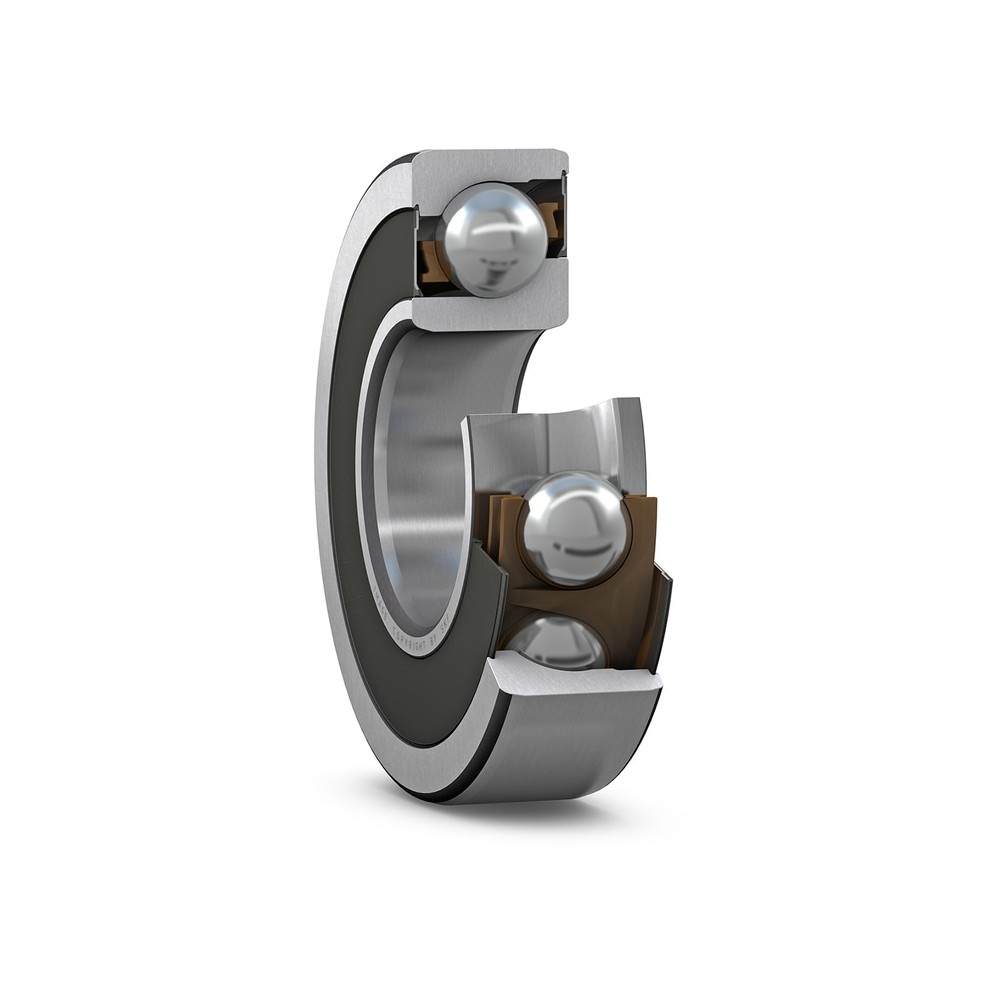

These single row angular contact ball bearings, with 40° contact angle and non-contact seals on both sides, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They have a ball-centred glass-fibre reinforced PA66 cage. They are more suitable than deep groove Ball bearingsfor supporting large axial forces acting in one direction.
40° contact angle
Integral sealing prolongs bearing service life
Glass-fibre reinforced PA66 cage
Accommodate relatively high radial loads and large unilateral axial loads
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 25 mm
Outside diameter 52 mm
Width 15 mm
Performance
Basic dynamic load rating 15.6 kN
Basic static load rating 10 kN
Limiting speed 12,000 r/min
Reference speed 16,000 r/min
Properties
Contact angle 40 °
SKF performance class SKF Explorer
Sealing type Noncontact
Sealing Seal on both sides
Cage Nonmetallic
Locating feature bearing outer ring None
Lubricant Grease
Number of rows 1
Relubrication feature Without
Tolerance class Class P6 (P6)
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 133.3 g
eClass name Angular contact ball bearing
EAN 7316577695758
Product net weight 125.7 g
