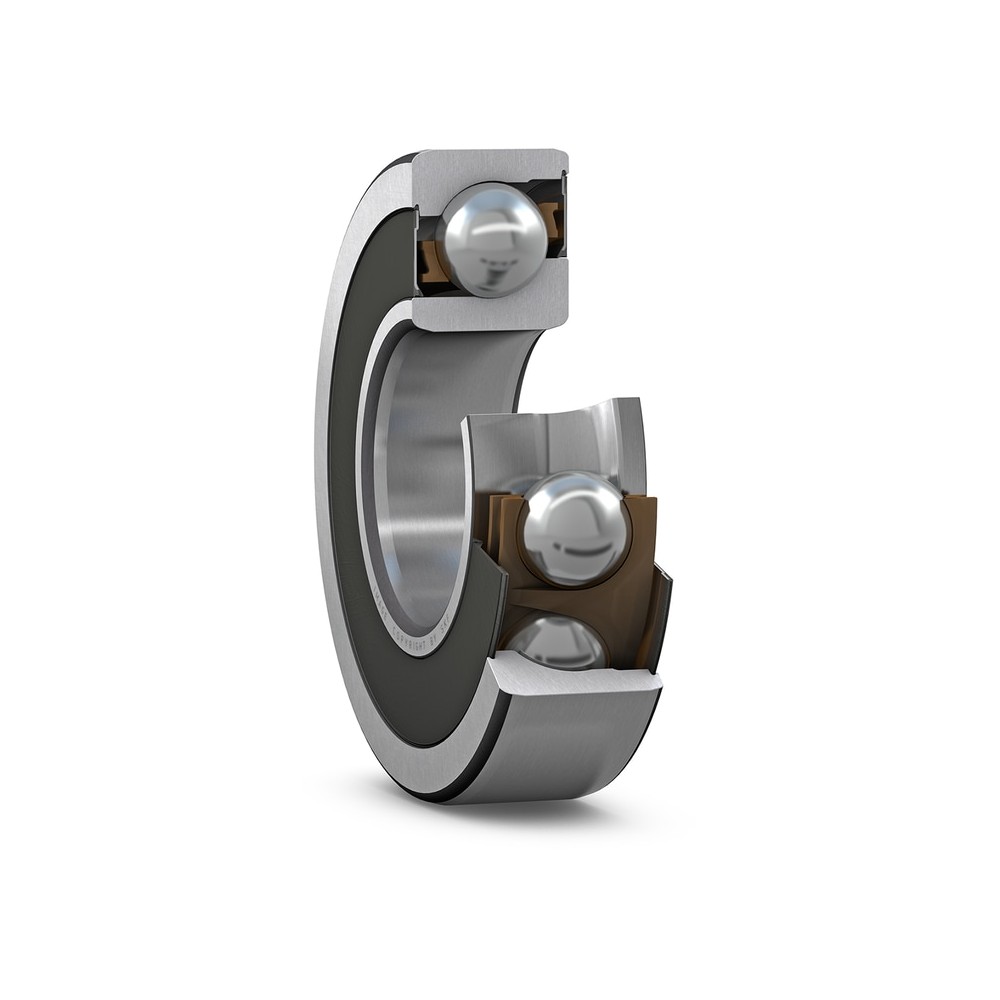

SKF 7306 BE-2RZP/GWF Angular contact ball bearings

SKF 7306 BE-2RZP/GWF Angular contact ball bearings

Product Code: 7306 BE-2RZP/GWF
Part/No: Eshop009260
Brand: SKF
These single row angular contact ball bearings, with 40° contact angle and non-contact seals on both sides, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They have a ball-centred glass-fibre reinforced PA66 cage. They are more suitable than deep groove Ball bearingsfor supporting large axial forces acting in one direction.
40° contact angle
Integral sealing prolongs bearing service life
Glass-fibre reinforced PA66 cage
Accommodate relatively high radial loads and large unilateral axial loads
€142.24
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 30 mm
Outside diameter 72 mm
Width 19 mm
Performance
Basic dynamic load rating 32.5 kN
Basic static load rating 19.3 kN
Limiting speed 9,500 r/min
Reference speed 12,000 r/min
Properties
Contact angle 40 °
Sealing type Noncontact
Sealing Seal on both sides
Cage Nonmetallic
Locating feature bearing outer ring None
Lubricant Grease
Number of rows 1
Relubrication feature Without
Tolerance class Normal
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 345.9 g
eClass name Angular contact ball bearing
EAN 7316574733385
Product net weight 365.5 g
