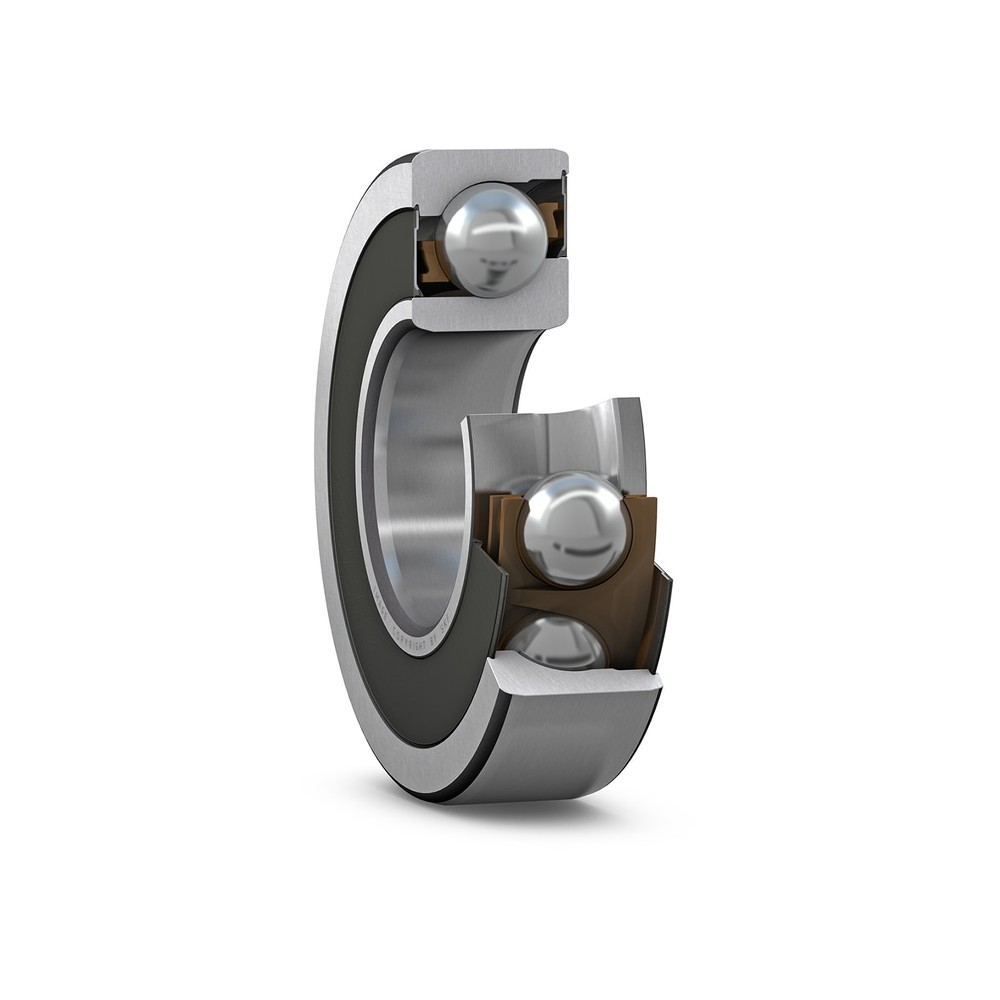

SKF 7307 BE-2RZP Angular contact ball bearings

SKF 7307 BE-2RZP Angular contact ball bearings

Product Code: 7307 BE-2RZP
Part/No: Eshop009268
Brand: SKF
These single row angular contact ball bearings, with 40° contact angle and non-contact seals on both sides, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They have a ball-centred glass-fibre reinforced PA66 cage. They are more suitable than deep groove Ball bearingsfor supporting large axial forces acting in one direction.
40° contact angle
Integral sealing prolongs bearing service life
Glass-fibre reinforced PA66 cage
Accommodate relatively high radial loads and large unilateral axial loads
€148.91
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 35 mm
Outside diameter 80 mm
Width 21 mm
Performance
Basic dynamic load rating 39 kN
Basic static load rating 24.5 kN
Limiting speed 8,500 r/min
Reference speed 11,000 r/min
Properties
Contact angle 40 °
Sealing type Noncontact
Sealing Seal on both sides
Cage Nonmetallic
Locating feature bearing outer ring None
Lubricant Grease
Number of rows 1
Relubrication feature Without
Tolerance class Normal
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 458.9 g
eClass name Angular contact ball bearing
EAN 7316575857431
Product net weight 0.331 kg
