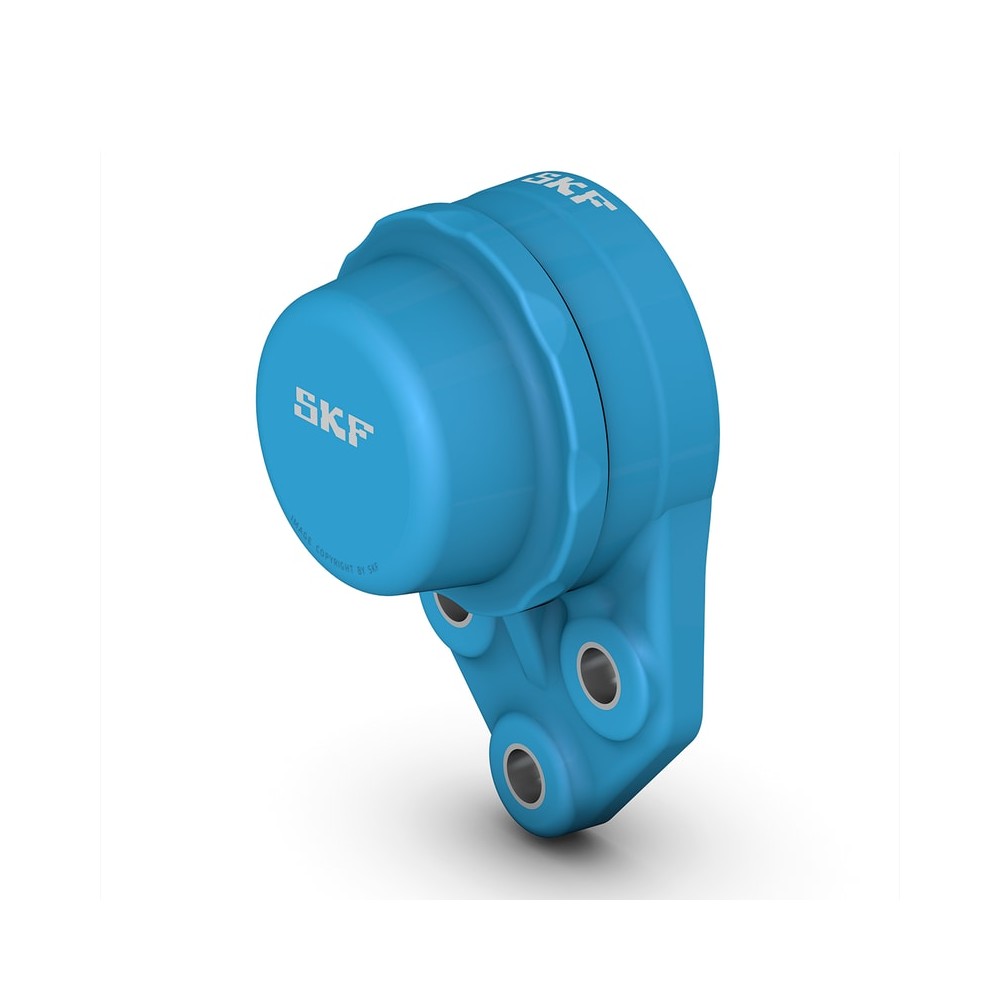

SKF F3BBC 25M-CPSS-DFH Ball bearing units

SKF F3BBC 25M-CPSS-DFH Ball bearing units

Product Code: F3BBC 25M-CPSS-DFH
Part/No: Eshop010897
Brand: SKF
These three-bolt flanged ball bearing units are designed especially for the food and beverage industries. They are chemical resistant, lightweight and strong. The unit consists of an insert bearing, with a narrow inner ring and set screw locking, and is suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a composite housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
Chemical resistant
Lubricated for life with a non-toxic food grade grease
Lightweight
Strong
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 25 mm
Performance
Basic dynamic load rating 11.9 kN
Basic static load rating 7.8 kN
Limiting speed 700 r/min
Properties
Bearing width total 27.3 mm
Housing overall width 29 mm
Housing type Flanged
Sealing type Contact, gutter
Bore type Cylindrical
Lubricant Grease
Material housing Composite for the SKF Food Line
Fastening bolt hole type Plain
Housing type 4 Flanged
Flanged housing type 3bolt bracket
Number of bolt holes for fasteners 3
Relubrication hole Without
Grease fitting Without
Retaining feature inner ring Set screws
Rubber seating ring Without
Sealing bearing Seal on both sides and flinger on one side
Sealing unit End cover and back seal
Coating Without
Material bearing Stainless steel
Logistics
Pack gross weight 0.365 kg
eClass name Bearing with spherical outside surface
EAN 7316577866929
Product net weight 0.25 kg
