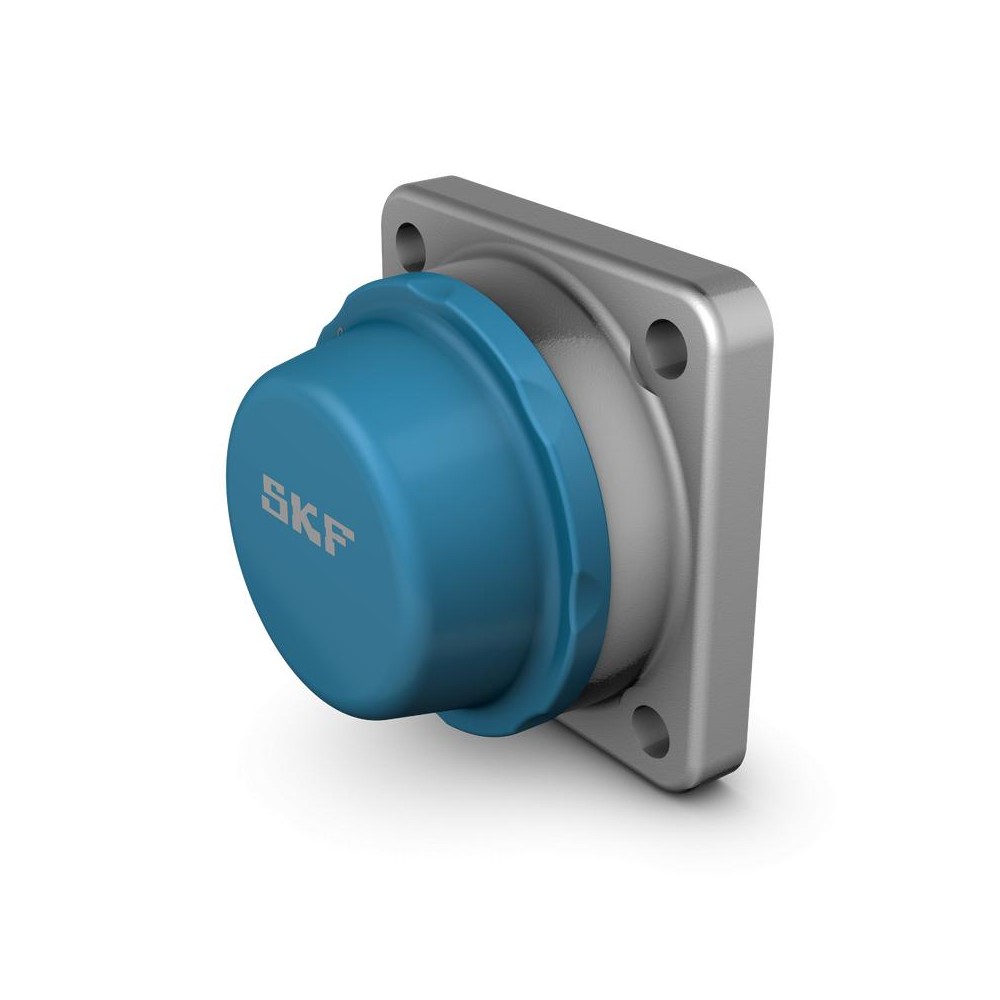

SKF F4BESS 108-CPSS-DFH Ball bearing units

SKF F4BESS 108-CPSS-DFH Ball bearing units

Product Code: F4BESS 108-CPSS-DFH
Part/No: Eshop010936
Brand: SKF
These square flanged ball bearing units are designed especially for the food and beverage industries. They consist of an insert bearing, with a narrow inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a stainless steel housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
Chemical resistant
Strong
Lubricated for life with a non-toxic food grade grease
Designed for high temperatures and speeds
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 38.1 mm
Width total 53.2 mm
Bearing width total 40.7 mm
Housing overall width 38.9 mm
Centre distance between bolt holes 83 mm
Performance
Basic dynamic load rating 24.7 kN
Basic static load rating 19 kN
Limiting speed 500 r/min
Properties
Shaft diameter 38.1 mm
Bore type Cylindrical
Lubricant Grease
Coating Without
Sealing type Contact, gutter
Material bearing Stainless steel
Retaining feature inner ring Set screws
Rubber seating ring Without
Housing type Flanged
Material housing Stainless steel
Relubrication hole Without
Grease fitting Without
Sealing bearing Seal on both sides and flinger on one side
Sealing unit End cover and back seal
Fastening bolt hole type Plain
Number of bolt holes for fasteners 4
Flanged housing type Square
Logistics
EAN code 07316579306935
Product net weight 1.763 kg
eClass name Bearing with spherical outside surface
