SKF F4BSS 35M-YTPSS Ball bearing units

SKF F4BSS 35M-YTPSS Ball bearing units

Product Code: F4BSS 35M-YTPSS
Part/No: Eshop010948
Brand: SKF

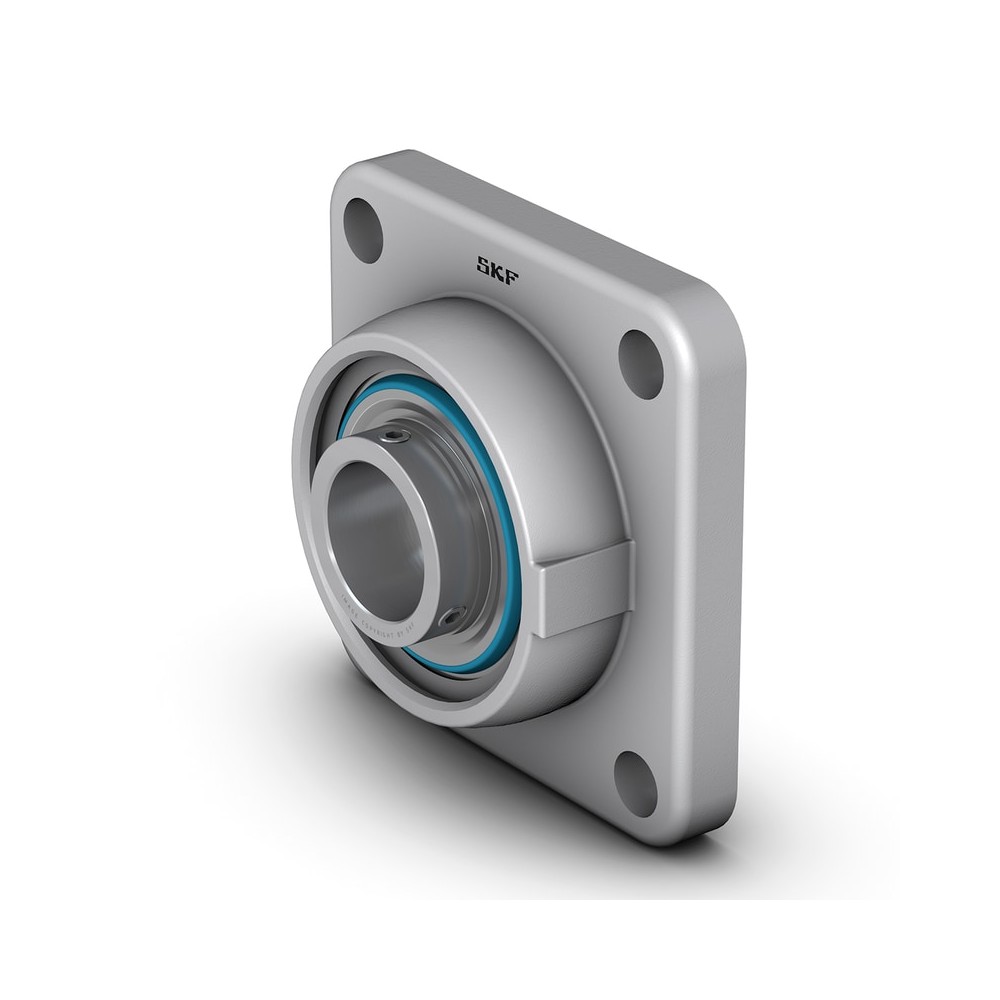

These square flanged ball bearing units are designed especially for the food and beverage industries. They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a stainless steel housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
Chemical resistant
Strong
Lubricated for life with a non-toxic food grade grease
Designed for high temperatures and speeds
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 35 mm
Performance
Basic dynamic load rating 21.6 kN
Basic static load rating 15.3 kN
Limiting speed 3,200 r/min
Properties
Width total 46 mm
Bearing width total 42.9 mm
Centre distance between bolt holes 92.1 mm
Housing overall width 35.7 mm
Note Limiting speed with shaft tolerance h6
Housing type Flanged
Sealing type Contact, gutter
Bore type Cylindrical
Lubricant Grease
Material housing Stainless steel
Fastening bolt hole type Plain
Housing type 4 Flanged
Flanged housing type Square
Number of bolt holes for fasteners 4
Relubrication hole Without
Grease fitting Without
Retaining feature inner ring Set screws
Rubber seating ring Without
Sealing bearing Seal and flinger on both sides
Sealing unit Optional end cover
Coating Without
Material bearing Stainless steel
Logistics
Pack gross weight 1.779 kg
eClass name Bearing with spherical outside surface
EAN 7316577857361
Product net weight 1.35 kg
