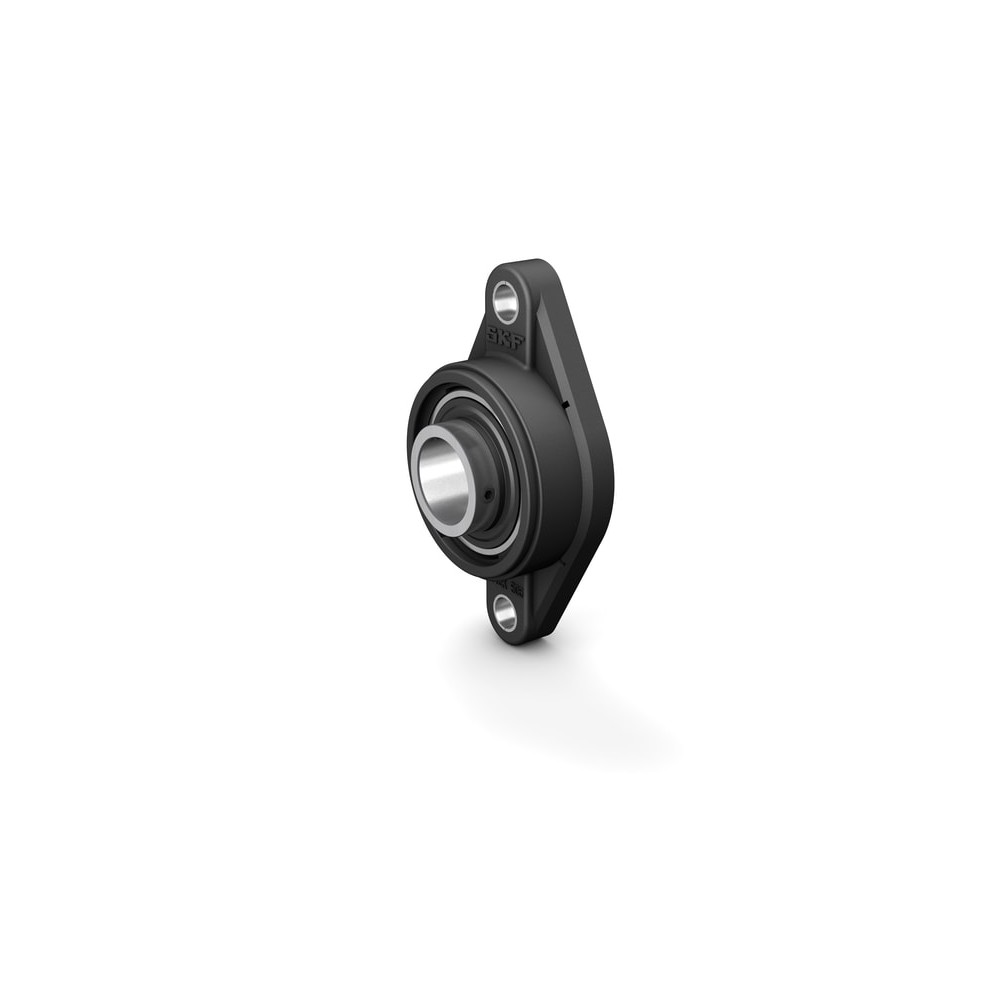

SKF FYTBK 25 TR Ball bearing units

SKF FYTBK 25 TR Ball bearing units

Product Code: FYTBK 25 TR
Part/No: Eshop011558
Brand: SKF
These oval flanged ball bearing units are compliant with ISO standards. The unit consists of an insert bearing, with an extended inner ring and set screw locking, and is suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a composite housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
Chemical resistant
Pre-lubricated for life
Lightweight
Strong
€97.19
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 25 mm
Performance
Basic dynamic load rating 14 kN
Basic static load rating 7.8 kN
Limiting speed 4,300 r/min
Properties
Bearing width total 34.1 mm
Centre distance between bolt holes 99 mm
Housing overall width 30 mm
Note Limiting speed with shaft tolerance h6
Housing type Flanged
Sealing type Contact, multiple
Bore type Cylindrical
Lubricant Grease
Material housing Composite
Fastening bolt hole type Plain
Housing type 4 Flanged
Flanged housing type Oval
Number of bolt holes for fasteners 2
Relubrication hole Without
Grease fitting Without
Retaining feature inner ring Set screws
Rubber seating ring Without
Sealing bearing Seal and flinger on both sides
Sealing unit Optional end cover
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 310 g
eClass name Bearing with spherical outside surface
EAN 7316570175011
Product net weight 236.3 g
