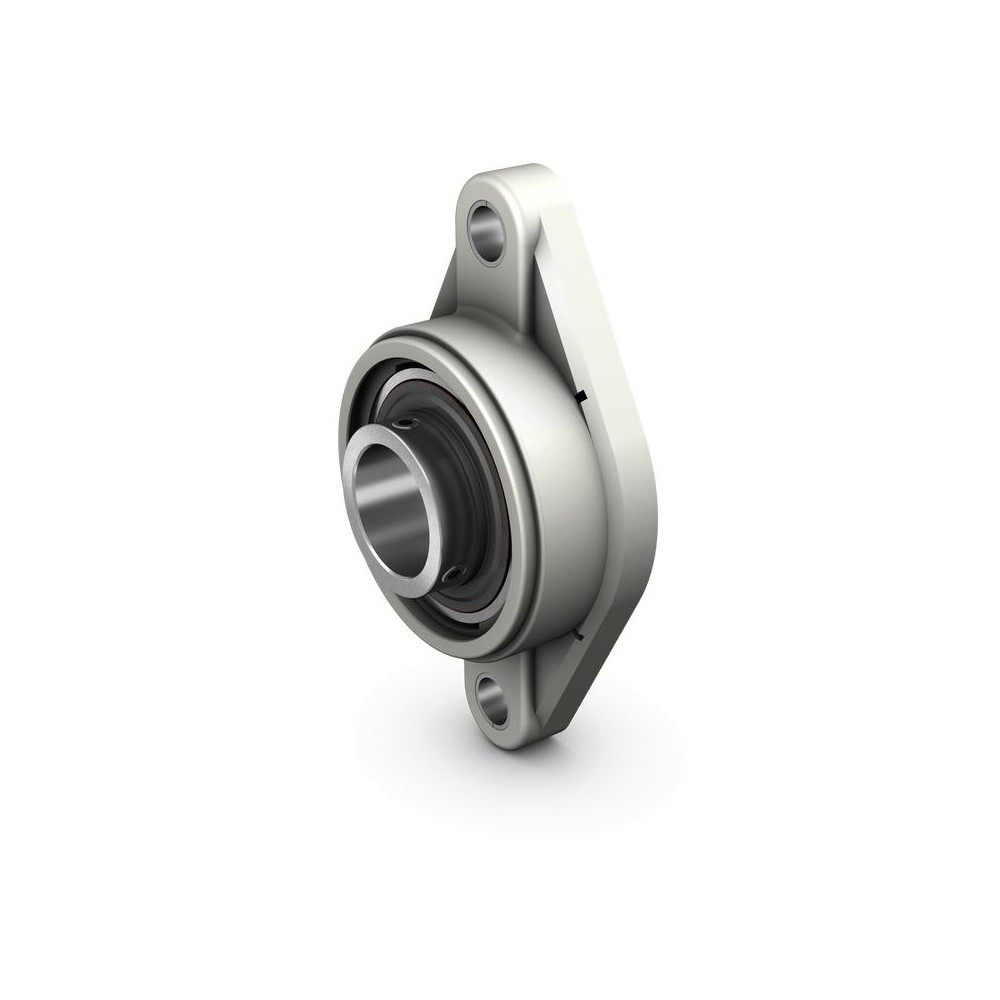

SKF FYTWK 30 NYTH/VZ1A2 Ball bearing units

SKF FYTWK 30 NYTH/VZ1A2 Ball bearing units

Product Code: FYTWK 30 NYTH/VZ1A2
Part/No: Eshop011603
Brand: SKF
These oval flanged ball bearing units are designed especially for the food and beverage industries. They are chemical resistant, lightweight and strong. The unit consists of an insert bearing, with an extended inner ring and set screw locking, and is suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a composite housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
Chemical resistant
Lubricated for life with a non-toxic food grade grease
Lightweight
Strong
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 30 mm
Performance
Basic dynamic load rating 16.3 kN
Basic static load rating 11.2 kN
Limiting speed 3,800 r/min
Properties
Bearing width total 38.1 mm
Centre distance between bolt holes 116.5 mm
Housing overall width 33 mm
Note Limiting speed with shaft tolerance h6
Housing type Flanged
Sealing type Contact, multiple
Bore type Cylindrical
Lubricant Grease
Material housing Composite for the SKF Food Line
Fastening bolt hole type Plain
Housing type 4 Flanged
Flanged housing type Oval
Number of bolt holes for fasteners 2
Relubrication hole Without
Grease fitting With
Retaining feature inner ring Set screws
Rubber seating ring Without
Sealing bearing Seal and flinger on both sides
Sealing unit Optional end cover
Coating Without
Material bearing Stainless steel
Logistics
Pack gross weight 0.486 kg
eClass name Bearing with spherical outside surface
EAN 7316575120115
Product net weight 304.6 g
