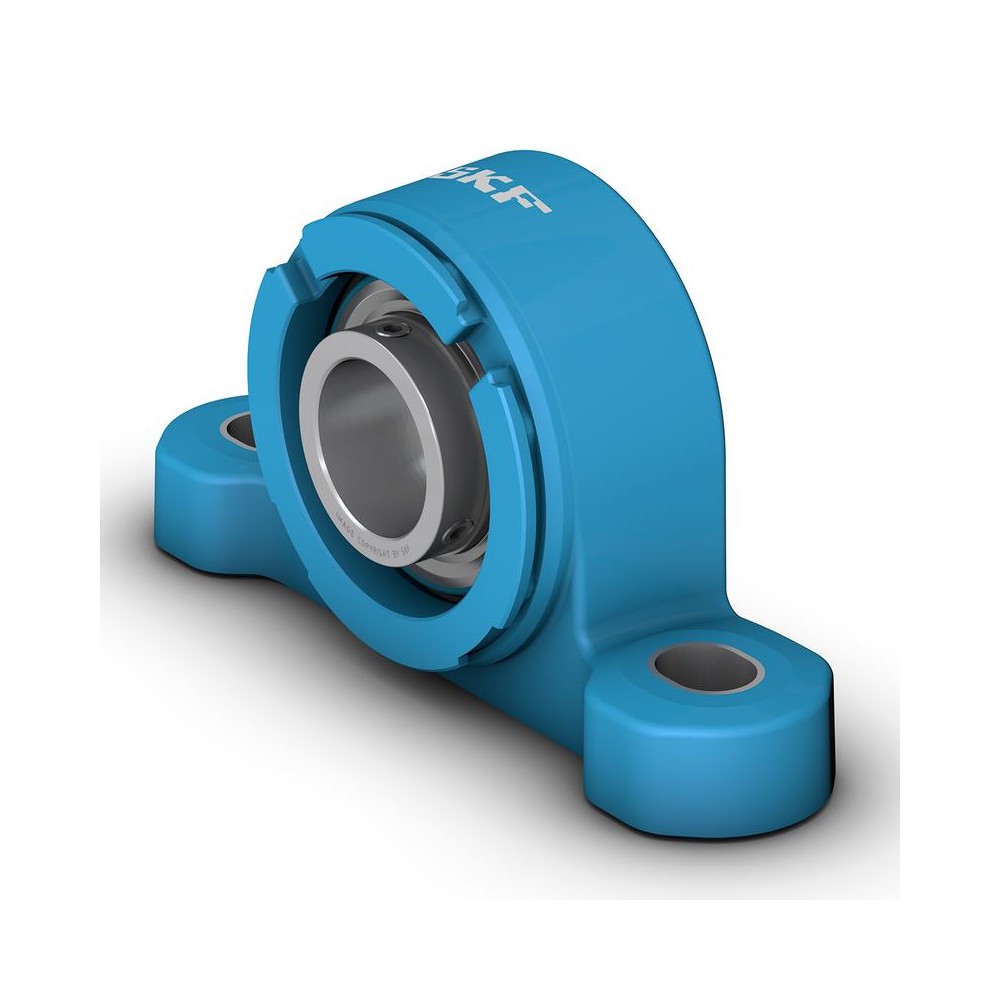

SKF P2BC 25M-TPZM Ball bearing units

SKF P2BC 25M-TPZM Ball bearing units

Product Code: P2BC 25M-TPZM
Part/No: Eshop016967
Brand: SKF
Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a composite housing that is lightweight but robust and has excellent corrosion resistance. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.
Designed for a constant and alternating rotation
Excellent corrosion resistance
Lightweight
Recyclable
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 25 mm
Performance
Basic dynamic load rating 14 kN
Basic static load rating 7.8 kN
Limiting speed 4,300 r/min
Properties
Centre height pillow block 36.5 mm
Bearing width total 34.1 mm
Centre distance between bolt holes 105 mm
Housing overall width 36 mm
Note Limiting speed with shaft tolerance h6
Housing type Pillow block
Sealing type Contact, gutter
Bore type Cylindrical
Lubricant Grease
Material housing Composite for the SKF Food Line
Fastening bolt hole type Plain
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole Without
Grease fitting Without
Retaining feature inner ring Set screws
Rubber seating ring Without
Sealing bearing Seal and flinger on both sides
Sealing unit Optional end cover
Coating Zinccoated bearing
Material bearing Bearing steel
Logistics
Pack gross weight 0.391 kg
eClass name Bearing with spherical outside surface
EAN 7316577859150
Product net weight 268.5 g
