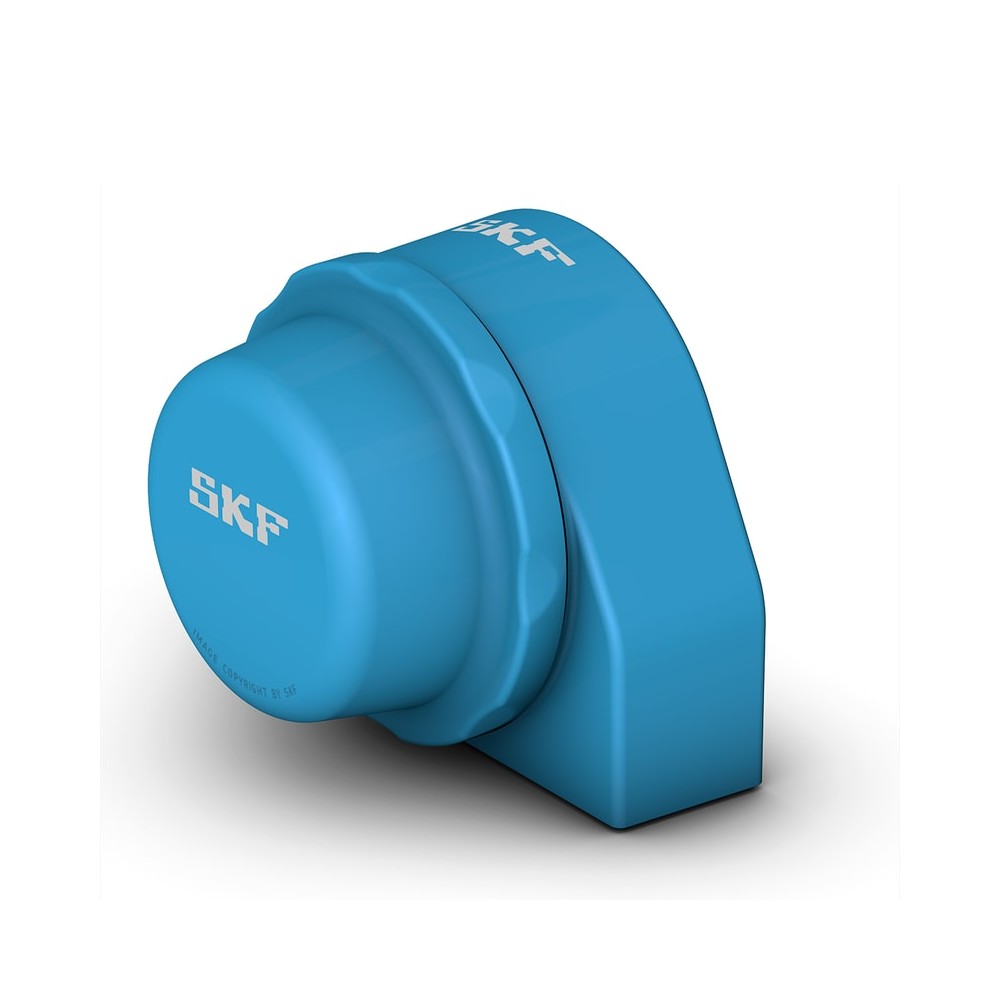

SKF P2BTC 40M-CPSS-DFH Ball bearing units

SKF P2BTC 40M-CPSS-DFH Ball bearing units

Product Code: P2BTC 40M-CPSS-DFH
Part/No: Eshop017007
Brand: SKF
Short base pillow (plummer) block ball bearing units consist of an insert bearing mounted in a composite housing. It has threads for attachment bolts and is suitable for applications with both constant and alternating directions of rotation. It has a narrow inner ring and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.
Designed for a constant and alternating rotation
Excellent corrosion resistance
Lightweight
Recyclable
€255.68
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 40 mm
Bearing width total 40.7 mm
Housing overall width 33 mm
Centre height pillow block 49.2 mm
Centre distance between bolt holes 89 mm
Performance
Basic dynamic load rating 24.7 kN
Basic static load rating 19 kN
Limiting speed 500 r/min
Properties
Shaft diameter 40 mm
Bore type Cylindrical
Lubricant Grease
Coating Without
Sealing type Contact, gutter
Material bearing Stainless steel
Retaining feature inner ring Set screws
Rubber seating ring Without
Housing type Pillow block
Material housing Composite for the SKF Food Line
Relubrication hole Without
Grease fitting Without
Sealing bearing Seal on both sides and flinger on one side
Sealing unit End cover and back seal
Fastening bolt hole type Threaded
Number of bolt holes for fasteners 2
Logistics
EAN code 07316577859341
Product net weight 0.876 kg
eClass name Bearing with spherical outside surface
