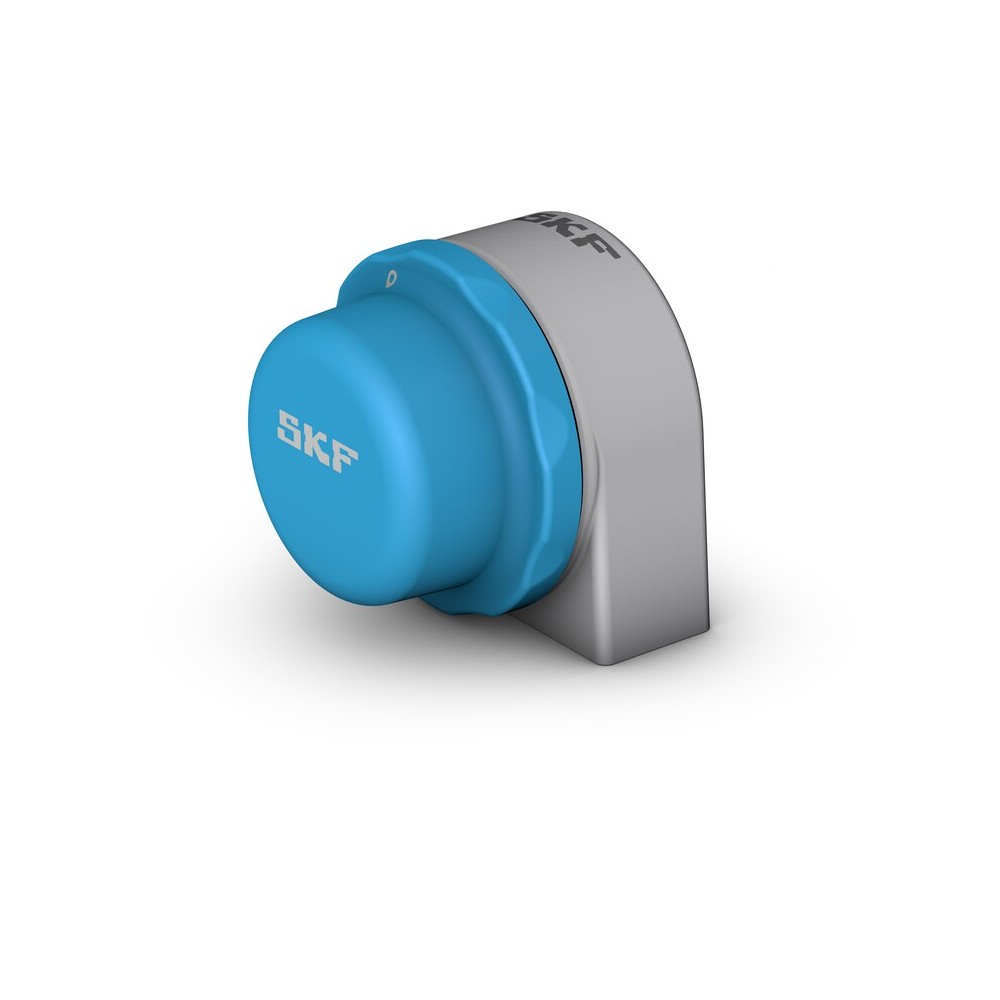

SKF P2BTSS 30M-CPSS-DFH Ball bearing units

SKF P2BTSS 30M-CPSS-DFH Ball bearing units

Product Code: P2BTSS 30M-CPSS-DFH
Part/No: Eshop017016
Brand: SKF
Pillow (plummer) block bearing units consisting of an insert bearing mounted in a composite or cast metal housing that can be bolted to a support surface. In addition to being part of a unit, some pillow block housings for insert bearings are available as separate components. The SKF assortment includes units that are compliant with several industrial standards and meet many requirements.
Ready to mount
Lubricated and sealed bearings
Quick locking on the shaft
Large variety of housing shapes, housing materials, and locking methods
Concentric locking options for high speeds and low vibration
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 30 mm
Performance
Basic dynamic load rating 16.3 kN
Basic static load rating 11.2 kN
Limiting speed 700 r/min
Properties
Centre height pillow block 42.9 mm
Bearing width total 31.2 mm
Centre distance between bolt holes 76.2 mm
Housing overall width 28 mm
Housing type Pillow block
Sealing type Contact, gutter
Bore type Cylindrical
Lubricant Grease
Material housing Stainless steel
Fastening bolt hole type Threaded
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole Without
Grease fitting Without
Retaining feature inner ring Set screws
Rubber seating ring Without
Sealing bearing Seal on both sides and flinger on one side
Sealing unit End cover and back seal
Coating Without
Material bearing Stainless steel
Logistics
Pack gross weight 1.1 kg
eClass name Bearing with spherical outside surface
EAN 7316581144105
Product net weight 0.463 kg
