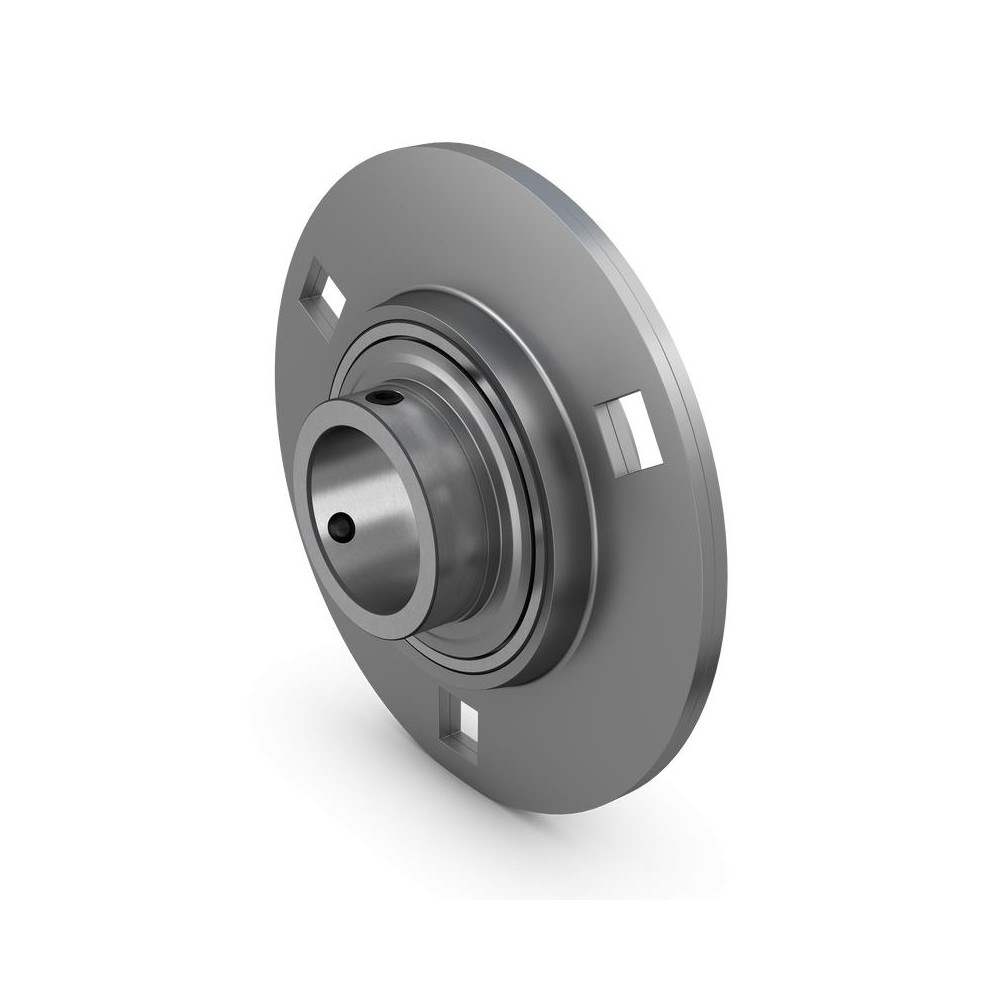

SKF PF 20 TF Ball bearing units

SKF PF 20 TF Ball bearing units

Product Code: PF 20 TF
Part/No: Eshop017751
Brand: SKF
Round flanged ball bearing units with pressed steel housing consist of an insert bearing mounted in a pressed steel housing that can be bolted to a machine wall or frame. In addition to being part of a unit, housings and insert bearings are available as separate components. The SKF assortment includes ball bearing units compliant with several industrial standards, meeting many requirements regarding bolt patterns and mechanisms for locking onto on the shaft.
Ready to mount
Sealed bearings lubricated for life
Quick locking on the shaft
Large variety of housing shapes, housing materials, and locking methods
Concentric locking options for high speeds and low vibration
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 20 mm
Performance
Basic dynamic load rating 12.7 kN
Basic static load rating 6.55 kN
Limiting speed 8,500 r/min
Properties
Bearing width total 31 mm
Housing overall width 16 mm
Pitch diameter of bolt holes of round and triangle flange type housing 71.4 mm
Note Limiting speed with shaft tolerance h6
Housing type Flanged
Sealing type Contact, standard
Bore type Cylindrical
Lubricant Grease
Material housing Pressed steel
Fastening bolt hole type Plain
Housing type 4 Flanged
Flanged housing type Round
Number of bolt holes for fasteners 3
Relubrication hole Without
Grease fitting Without
Retaining feature inner ring Set screws
Rubber seating ring Without
Sealing bearing Seal and flinger on both sides
Sealing unit Without
Coating Zinccoated housing
Material bearing Bearing steel
Logistics
Pack gross weight 0.33 kg
eClass name Bearing with spherical outside surface
EAN 7316570247800
Product net weight 0.11 kg
