SKF SY 1. FM Ball bearing units

SKF SY 1. FM Ball bearing units

Product Code: SY 1. FM
Part/No: Eshop019903
Brand: SKF

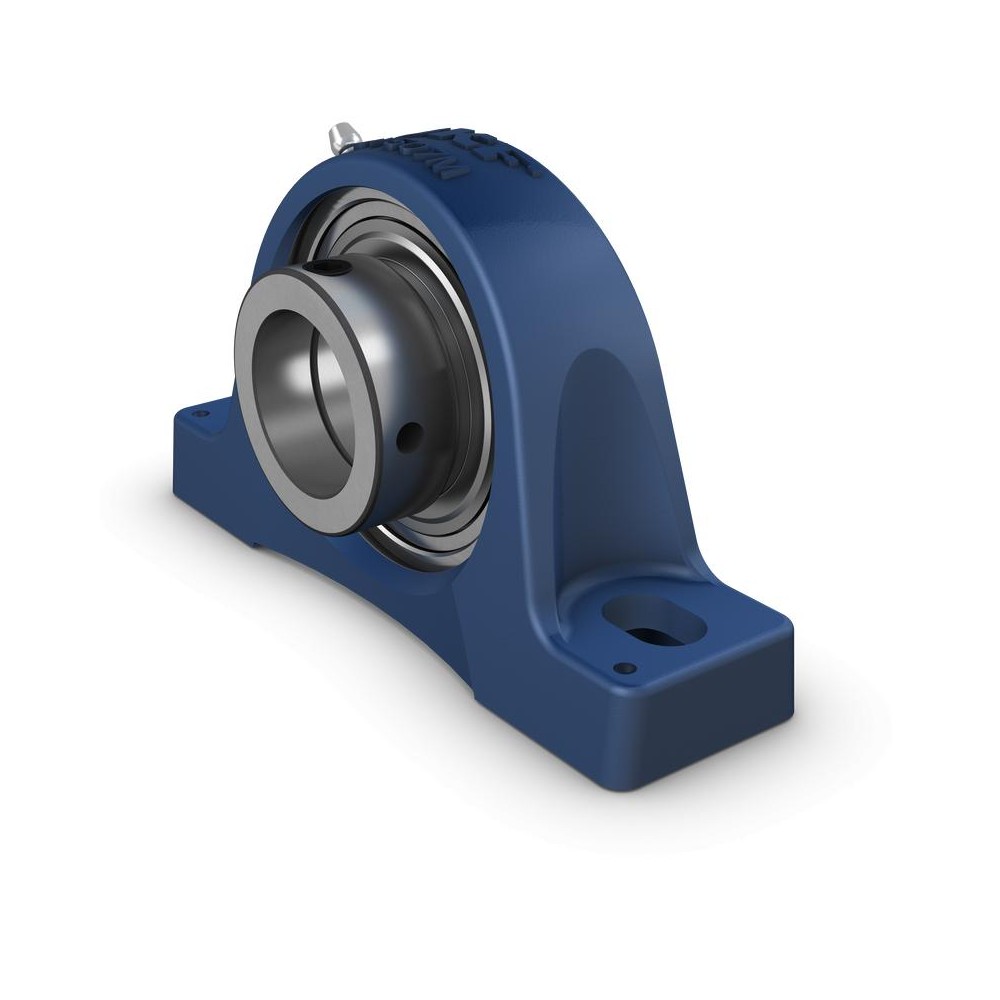

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is intended for use in applications where the direction of rotation is constant. It has a narrow inner ring and is locked onto the shaft by an eccentric locking collar, making it easy to mount.
Strong
Ready to mount
Lubricated and sealed bearing
Designed for rotation in one direction
Accommodate static initial misalignment
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 25.4 mm
Performance
Basic dynamic load rating 14 kN
Basic static load rating 7.8 kN
Limiting speed 7,000 r/min
Properties
Centre height pillow block 36.5 mm
Bearing width total 31 mm
Centre distance between bolt holes 102 mm
Housing overall width 36 mm
Note Limiting speed with shaft tolerance h6
Housing type Pillow block
Sealing type Contact, standard
Bore type Cylindrical
Lubricant Grease
Material housing Cast iron
Fastening bolt hole type Plain
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole With
Grease fitting With
Retaining feature inner ring Eccentric collar
Rubber seating ring Without
Sealing bearing Seal on both sides
Sealing unit Optional end cover
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 0.733 kg
eClass name Bearing with spherical outside surface
EAN 7316576615283
Product net weight 0.367 kg
