SKF SY 1. TF/VA228 Ball bearing units

SKF SY 1. TF/VA228 Ball bearing units

Product Code: SY 1. TF/VA228
Part/No: Eshop019907
Brand: SKF

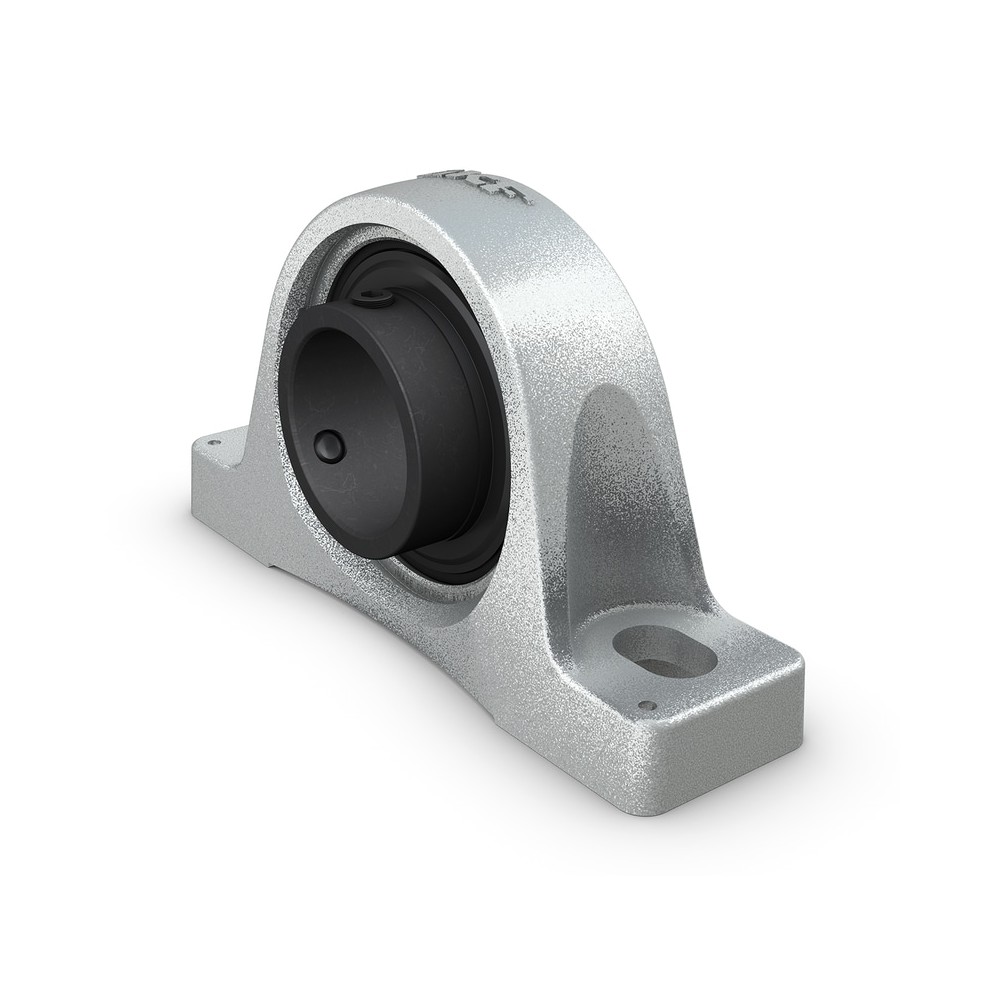

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is suitable for high temperature applications, and for both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.
Strong
For high temperature applications
Designed for a constant and alternating rotation
Ready to mount
Lubricated and sealed bearing
Quick locking onto the shaft
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 25.4 mm
Performance
Basic dynamic load rating 14 kN
Basic static load rating 7.8 kN
Limiting speed 230 r/min
Properties
Centre height pillow block 36.5 mm
Bearing width total 34.1 mm
Centre distance between bolt holes 102 mm
Housing overall width 36 mm
Maximum operating temperature 350 °C
Housing type Pillow block
Sealing type Noncontact
Bore type Cylindrical
Lubricant Solid lubricant
Material housing Cast iron
Fastening bolt hole type Plain
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole Without
Grease fitting Without
Retaining feature inner ring Set screws
Rubber seating ring Without
Sealing bearing Shield and flinger on both sides
Sealing unit Without
Coating Zinccoated housing and manganese phosphate coated bearing
Material bearing High temperature steel
Logistics
Pack gross weight 0.765 kg
eClass name Rolling bearing, glide bearing, rocker bearing (other, non-classified)
EAN 7316571381084
Product net weight 0.708 kg
