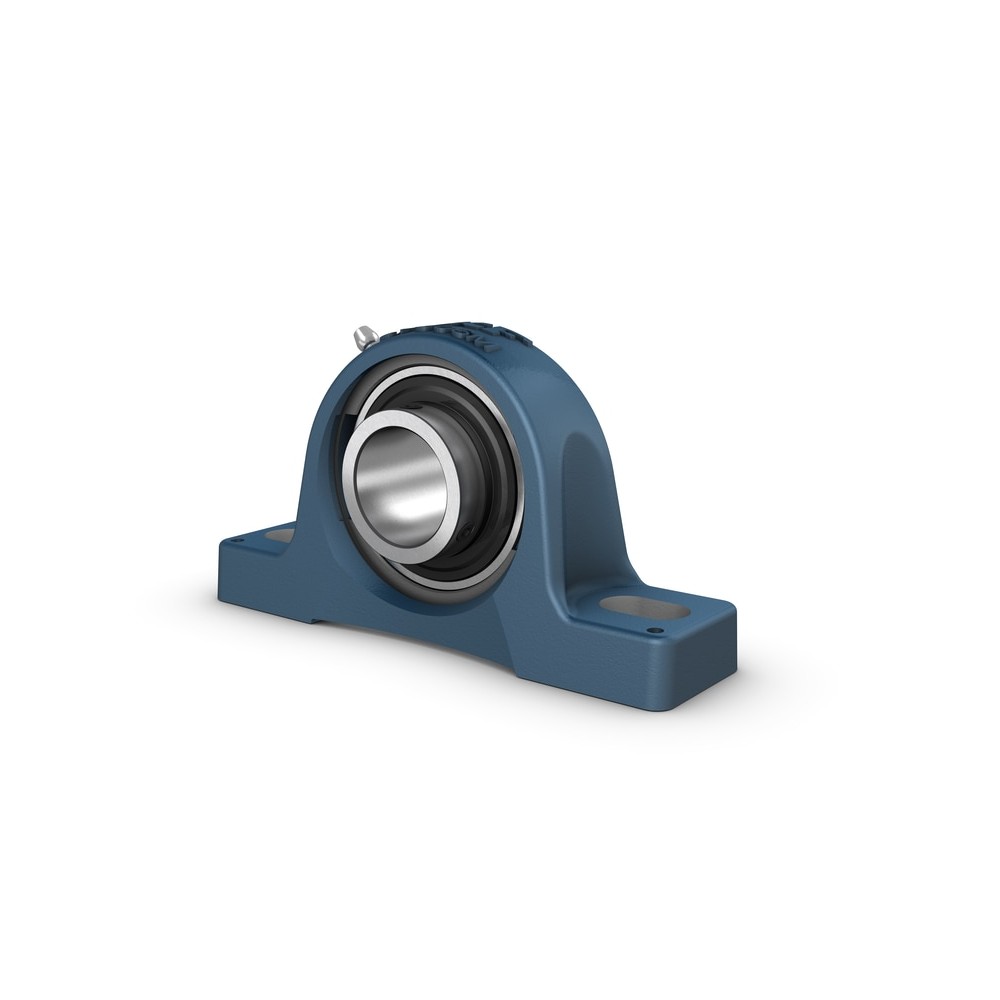

SKF SY 1.1/8 TF Ball bearing units

SKF SY 1.1/8 TF Ball bearing units

Product Code: SY 1.1/8 TF
Part/No: Eshop019918
Brand: SKF
Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.
Strong
Ready to mount
Lubricated and sealed bearing
Quick locking onto the shaft
Cost-effective
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 28.575 mm
Performance
Basic dynamic load rating 19.5 kN
Basic static load rating 11.2 kN
Limiting speed 6,300 r/min
Properties
Centre height pillow block 42.9 mm
Bearing width total 38.1 mm
Centre distance between bolt holes 117.5 mm
Housing overall width 40 mm
Note Limiting speed with shaft tolerance h6
Housing type Pillow block
Sealing type Contact, standard
Bore type Cylindrical
Lubricant Grease
Material housing Cast iron
Fastening bolt hole type Plain
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole With
Grease fitting With
Retaining feature inner ring Set screws
Rubber seating ring Without
Sealing bearing Seal and flinger on both sides
Sealing unit Optional end cover
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 1.119 kg
eClass name Bearing with spherical outside surface
EAN 7316577755599
Product net weight 1.565 kg
