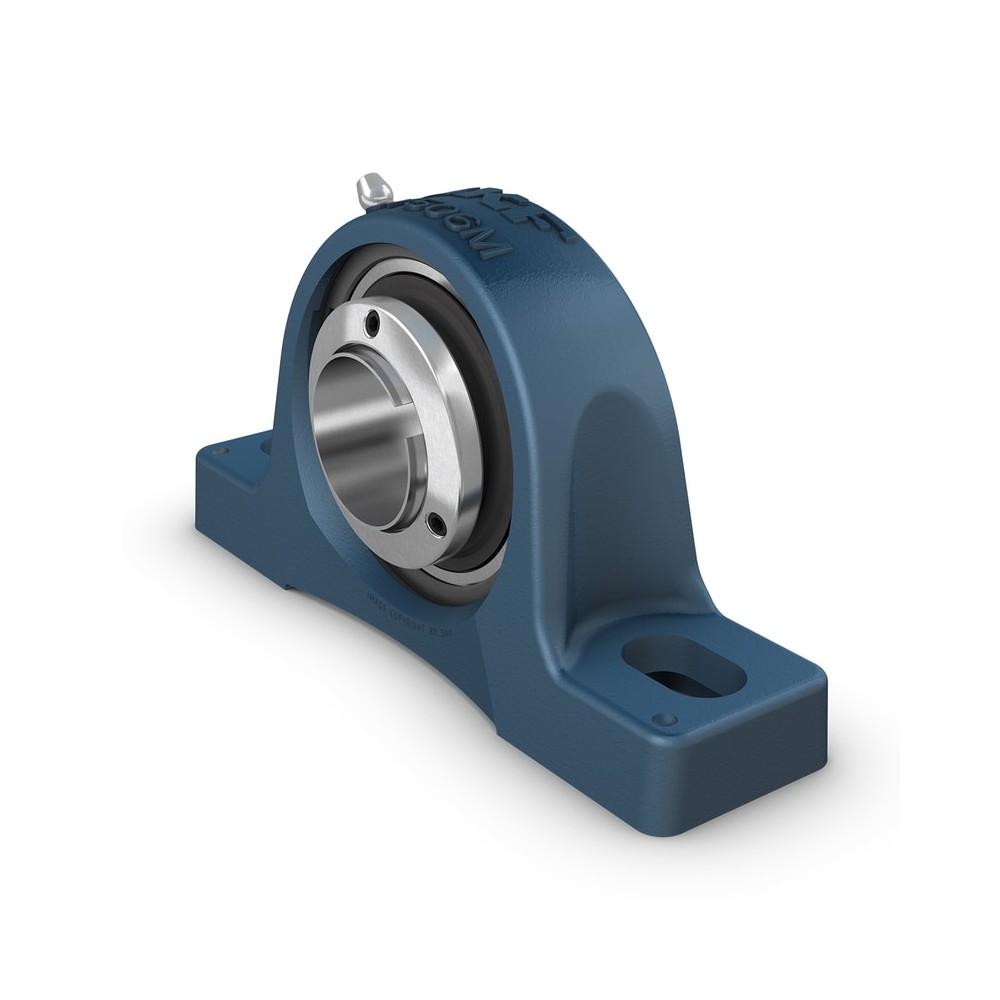

SKF SY 25 LF Ball bearing units

SKF SY 25 LF Ball bearing units

Product Code: SY 25 LF
Part/No: Eshop019962
Brand: SKF
Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. It has an inner ring extended on both sides and is locked onto the shaft by a SKF ConCentra locking, creating a true concentric tight fit, and setting the correct internal clearance within the bearing, and making it easy to mount.
Strong
Ready to mount
Lubricated and sealed bearing
Quick locking onto the shaft
Cost-effective
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 25 mm
Performance
Basic dynamic load rating 14 kN
Basic static load rating 7.8 kN
Limiting speed 7,000 r/min
Properties
Centre height pillow block 36.5 mm
Bearing width total 33.2 mm
Centre distance between bolt holes 102 mm
Housing overall width 36 mm
Housing type Pillow block
Sealing type Contact, standard
Bore type Cylindrical
Lubricant Grease
Material housing Cast iron
Fastening bolt hole type Plain
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole With
Grease fitting With
Retaining feature inner ring SKF ConCentra
Rubber seating ring Without
Sealing bearing Seal and flinger on both sides
Sealing unit Optional end cover
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 0.738 kg
eClass name Bearing with spherical outside surface
EAN 7316574718771
Product net weight 573.5 g
