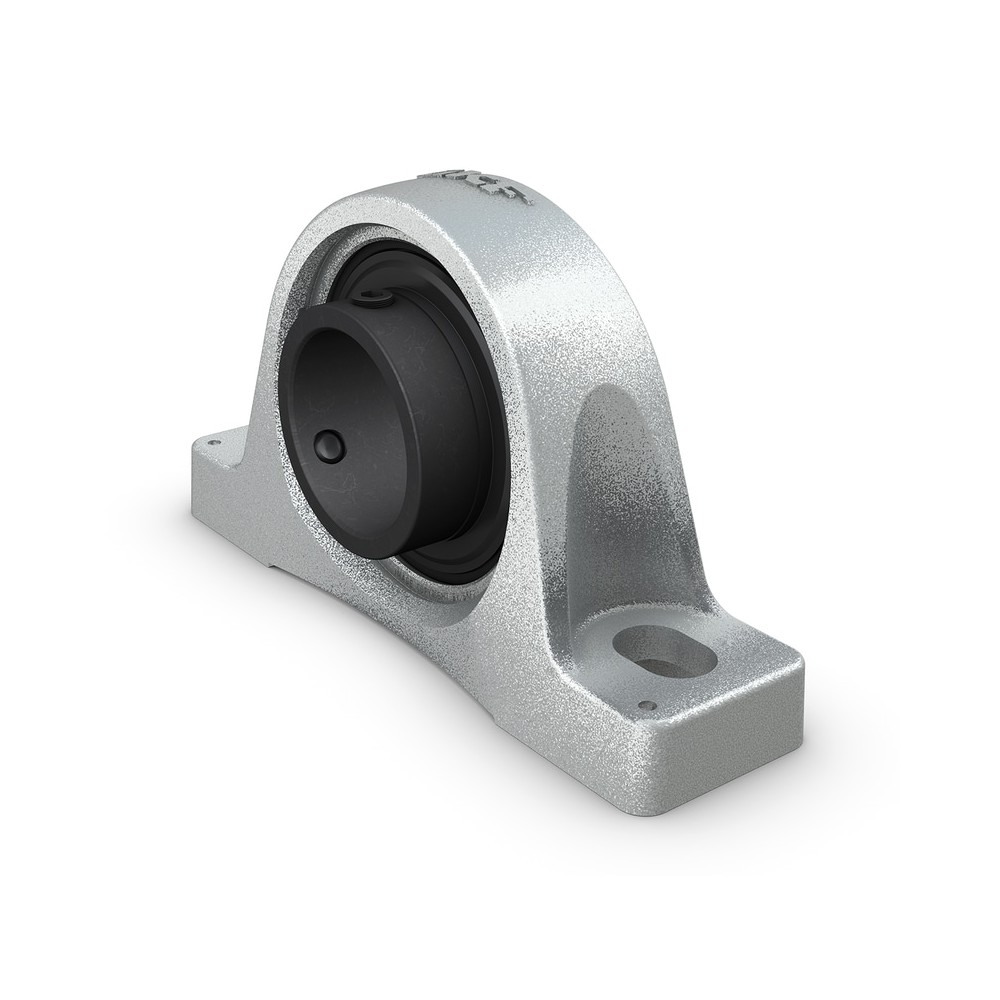

SKF SY 40 TF/VA228 Ball bearing units

SKF SY 40 TF/VA228 Ball bearing units

Product Code: SY 40 TF/VA228
Part/No: 042467
Brand: SKF
Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is suitable for high temperature applications, and for both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.
Strong
For high temperature applications
Designed for a constant and alternating rotation
Ready to mount
Lubricated and sealed bearing
Quick locking onto the shaft
€703.28
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Dimensions
Shaft diameter 40 mm
Performance
Basic dynamic load rating 30.7 kN
Basic static load rating 19 kN
Limiting speed 150 r/min
Properties
Centre height pillow block 49.2 mm
Bearing width total 49.2 mm
Centre distance between bolt holes 135.5 mm
Housing overall width 48 mm
Maximum operating temperature 350 °C
Housing type Pillow block
Sealing type Noncontact
Bore type Cylindrical
Lubricant Solid lubricant
Material housing Cast iron
Fastening bolt hole type Plain
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole Without
Grease fitting Without
Retaining feature inner ring Set screws
Rubber seating ring Without
Sealing bearing Shield and flinger on both sides
Sealing unit Without
Coating Zinccoated housing and manganese phosphate coated bearing
Material bearing High temperature steel
Logistics
Pack gross weight 1.991 kg
eClass name Rolling bearing, glide bearing, rocker bearing (other, non-classified)
EAN 7316571382371
Product net weight 1796.2 g
