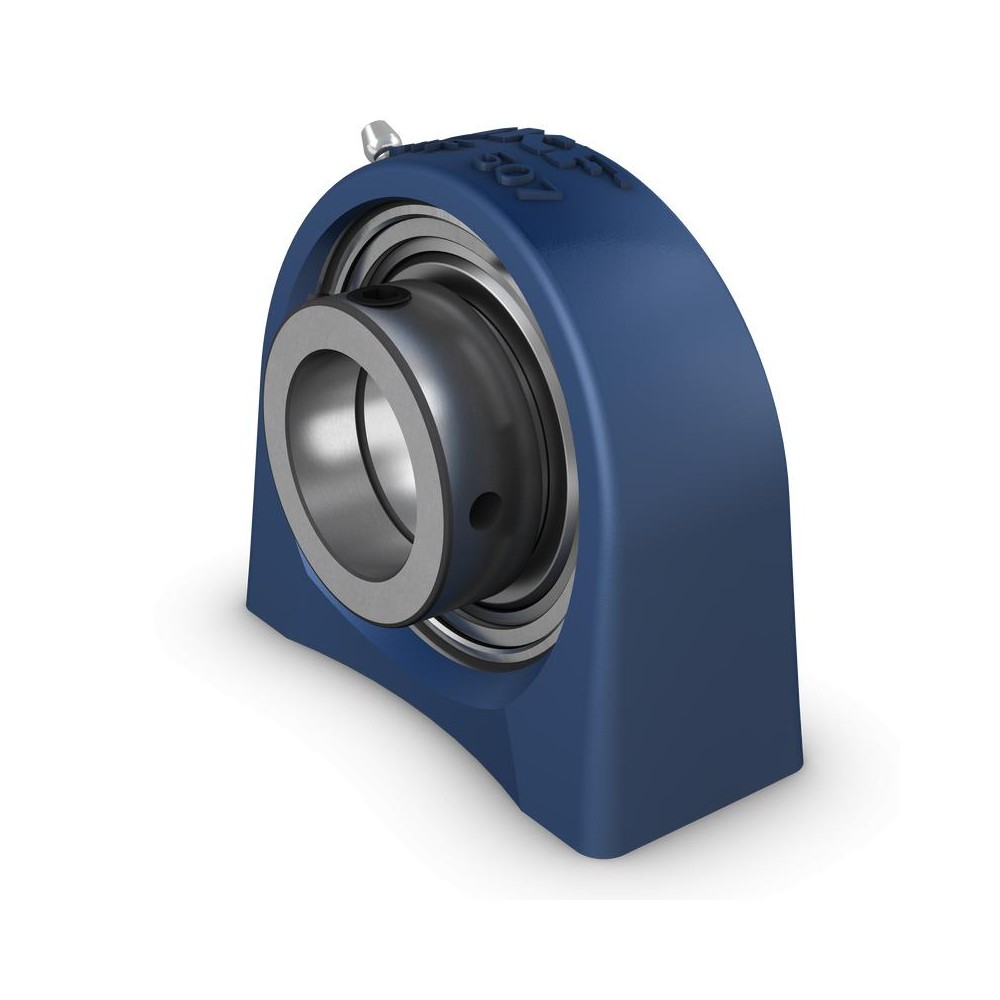

SKF SYF 25 FM/W64 Ball bearing units

SKF SYF 25 FM/W64 Ball bearing units

Product Code: SYF 25 FM/W64
Part/No: Eshop020001
Brand: SKF
Short base pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is intended for use in applications where the direction of rotation is constant. It has a narrow inner ring and is locked onto the shaft by an eccentric locking collar, making it easy to mount.
Strong
Narrow design
Ready to mount
Lubricated and sealed bearing
Designed for rotation in one direction
Accommodate static initial misalignment
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 25 mm
Performance
Basic dynamic load rating 14 kN
Basic static load rating 7.8 kN
Limiting speed 830 r/min
Properties
Centre height pillow block 36.5 mm
Bearing width total 31 mm
Centre distance between bolt holes 50.8 mm
Housing overall width 36 mm
Maximum operating temperature 85 °C
Note Limiting speed at 20 °C (70 °F) ambient temperature
Housing type Pillow block
Sealing type Contact, standard
Bore type Cylindrical
Lubricant Solid Oil
Material housing Cast iron
Fastening bolt hole type Threaded
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole With
Grease fitting With
Retaining feature inner ring Eccentric collar
Rubber seating ring Without
Sealing bearing Seal on both sides
Sealing unit Without
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 0.617 kg
eClass name Bearing with spherical outside surface
EAN 7316571265391
Product net weight 0.451 kg
