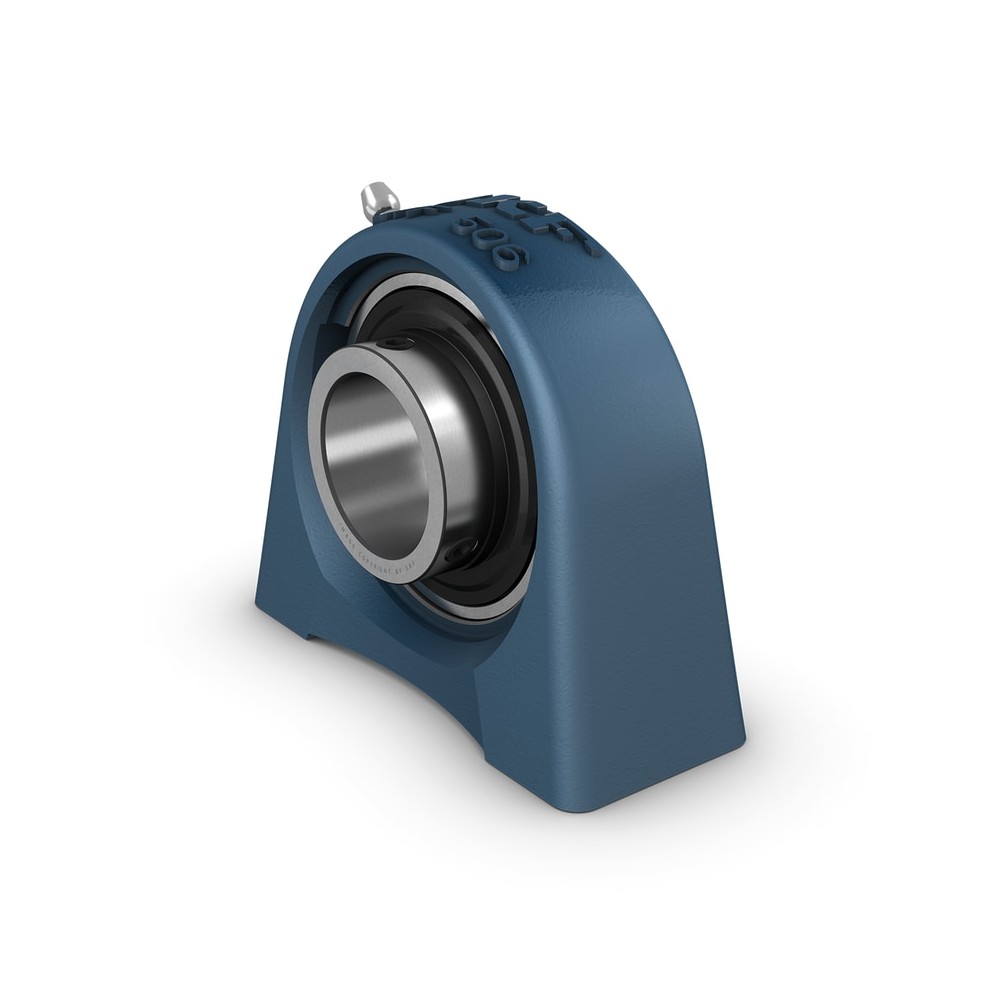

SKF SYF 50 TF Ball bearing units

SKF SYF 50 TF Ball bearing units

Product Code: SYF 50 TF
Part/No: 042510
Brand: SKF
Short base pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing. This variant has threads for attachment bolts and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.
Strong
Ready to mount
Designed for a constant and alternating rotation
Lubricated and sealed bearing
High degree of stiffness
Narrow design
€232.93
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Dimensions
Shaft diameter 50 mm
Performance
Basic dynamic load rating 35.1 kN
Basic static load rating 23.2 kN
Limiting speed 4,000 r/min
Properties
Centre height pillow block 57.2 mm
Bearing width total 51.6 mm
Centre distance between bolt holes 101.6 mm
Housing overall width 54 mm
Note Limiting speed with shaft tolerance h6
Housing type Pillow block
Sealing type Contact, standard
Bore type Cylindrical
Lubricant Grease
Material housing Cast iron
Fastening bolt hole type Threaded
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole With
Grease fitting With
Retaining feature inner ring Set screws
Rubber seating ring Without
Sealing bearing Seal and flinger on both sides
Sealing unit Without
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 2508 g
eClass name Bearing with spherical outside surface
EAN 7316570574197
Product net weight 1.954 kg
