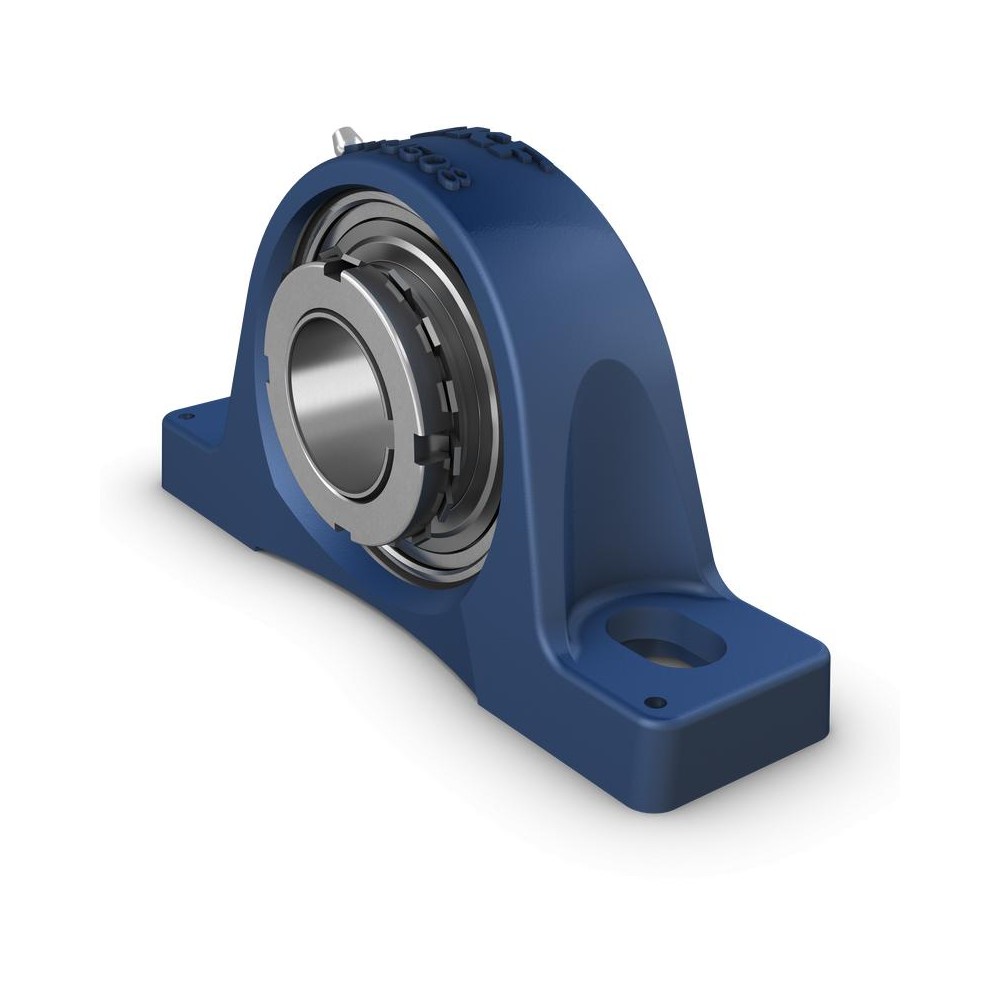

SKF SYJ 35 KF Ball bearing units

SKF SYJ 35 KF Ball bearing units

Product Code: SYJ 35 KF
Part/No: 042514
Brand: SKF
Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is suitable for applications with both constant and alternating directions of rotation. It is locked with an adapter sleeve, enabling quick and easy mounting onto the shaft. Adapter sleeve needs to be ordered separately.
Strong
Ready to mount
Designed for a constant and alternating rotation
Lubricated and sealed bearing
Quick locking onto the shaft
Cost-effective
€140.05
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 30 mm
Performance
Basic dynamic load rating 25.5 kN
Basic static load rating 15.3 kN
Limiting speed 5,300 r/min
Properties
Centre height pillow block 47.6 mm
Bearing width total 30.5 mm
Centre distance between bolt holes 129 mm
Housing overall width 46 mm
Housing type Pillow block
Sealing type Contact, standard
Bore type Tapered
Lubricant Grease
Material housing Cast iron
Fastening bolt hole type Plain
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole With
Grease fitting With
Retaining feature inner ring Adapter sleeve
Rubber seating ring Without
Sealing bearing Seal and flinger on both sides
Sealing unit Without
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 1.454 kg
eClass name Flanged housing unit
EAN 7316570122169
Product net weight 0.762 kg
