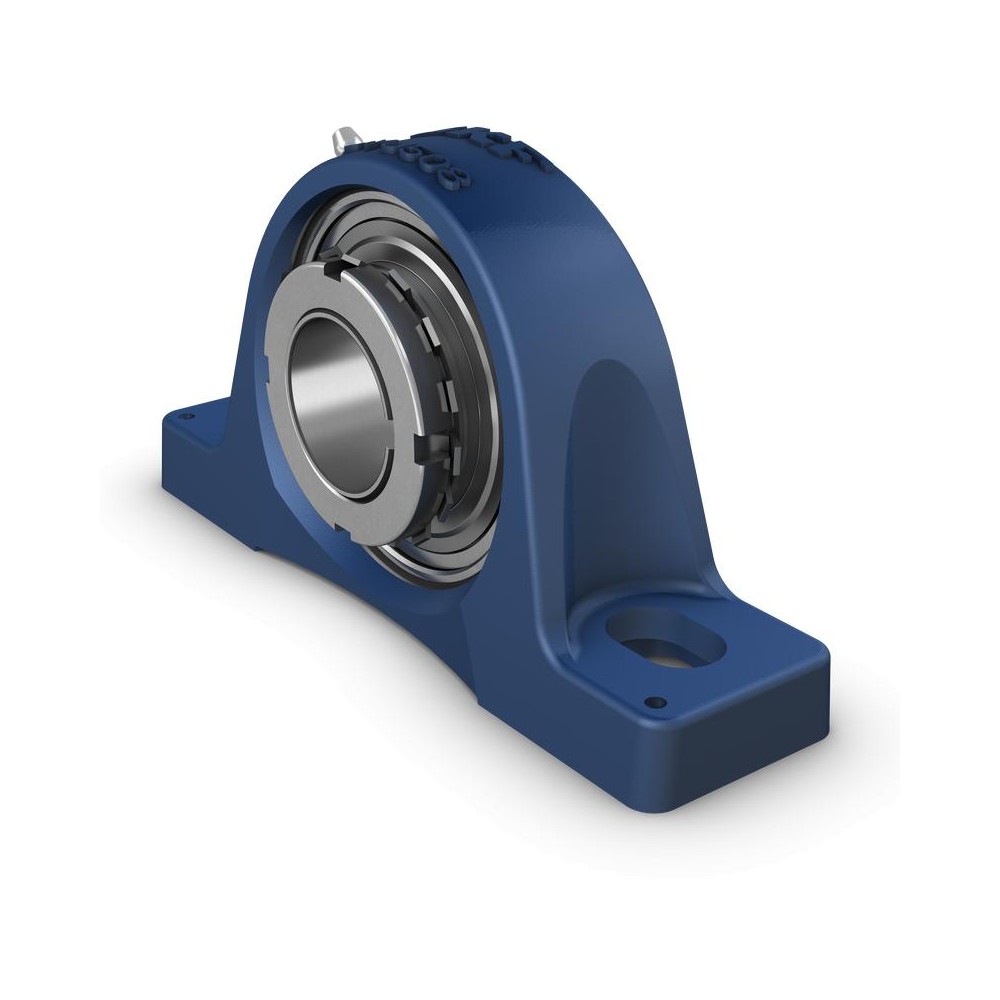

SKF SYJ 60 KF Ball bearing units

SKF SYJ 60 KF Ball bearing units

Product Code: SYJ 60 KF
Part/No: 042521
Brand: SKF
Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is suitable for applications with both constant and alternating directions of rotation. It is locked with an adapter sleeve, enabling quick and easy mounting onto the shaft. Adapter sleeve needs to be ordered separately.
Strong
Ready to mount
Designed for a constant and alternating rotation
Lubricated and sealed bearing
Quick locking onto the shaft
Cost-effective
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Dimensions
Shaft diameter 55 mm
Performance
Basic dynamic load rating 52.7 kN
Basic static load rating 36 kN
Limiting speed 3,400 r/min
Properties
Centre height pillow block 69.8 mm
Bearing width total 42.4 mm
Centre distance between bolt holes 188.5 mm
Housing overall width 65 mm
Housing type Pillow block
Sealing type Contact, standard
Bore type Tapered
Lubricant Grease
Material housing Cast iron
Fastening bolt hole type Plain
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole With
Grease fitting With
Retaining feature inner ring Adapter sleeve
Rubber seating ring Without
Sealing bearing Seal and flinger on both sides
Sealing unit Without
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 4.277 kg
eClass name Flanged housing unit
EAN 7316570045093
Product net weight 12.165 kg
