SKF SYK 20 TR Ball bearing units

SKF SYK 20 TR Ball bearing units

Product Code: SYK 20 TR
Part/No: Eshop020063
Brand: SKF

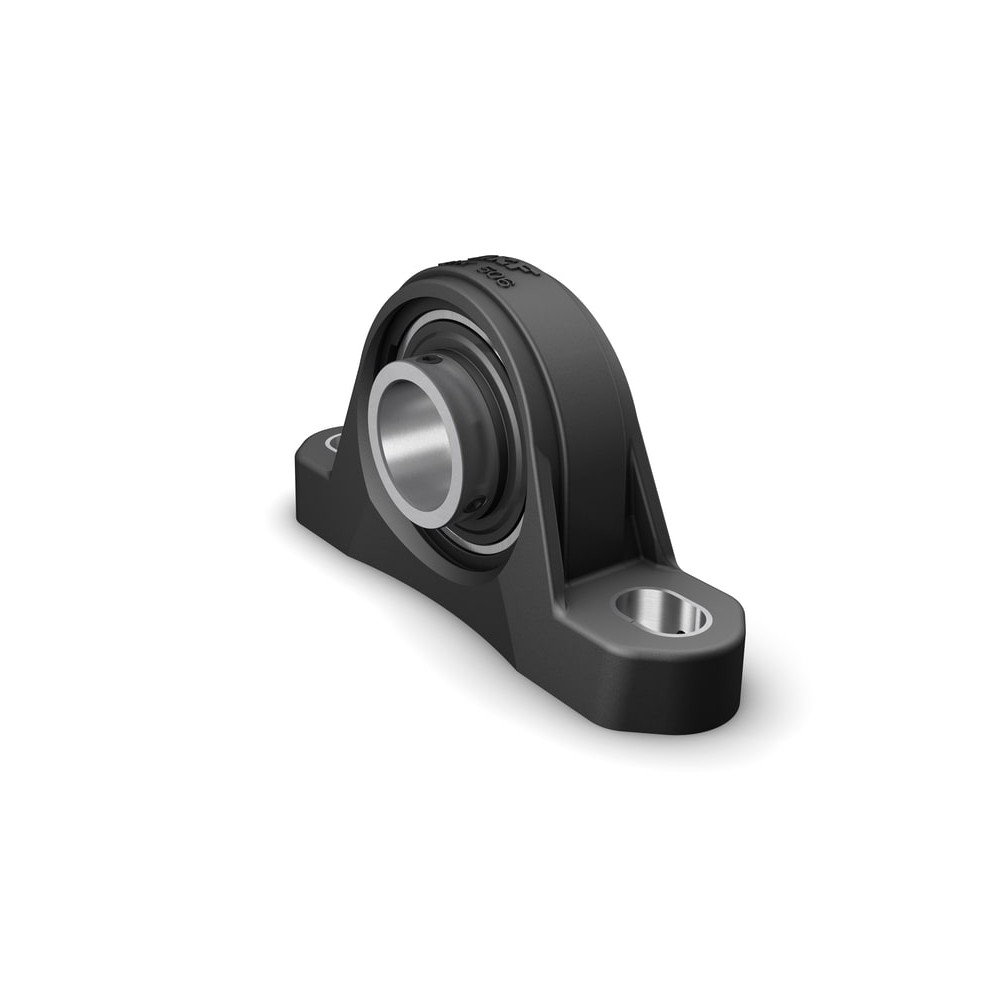

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a composite housing that is lightweight but robust and has excellent corrosion resistance. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.
Designed for a constant and alternating rotation
Excellent corrosion resistance
Lightweight
Recyclable
€89.27
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 20 mm
Performance
Basic dynamic load rating 12.7 kN
Basic static load rating 6.55 kN
Limiting speed 5,000 r/min
Properties
Centre height pillow block 33.3 mm
Bearing width total 31 mm
Centre distance between bolt holes 96.5 mm
Housing overall width 32 mm
Note Limiting speed with shaft tolerance h6
Housing type Pillow block
Sealing type Contact, multiple
Bore type Cylindrical
Lubricant Grease
Material housing Composite
Fastening bolt hole type Plain
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole Without
Grease fitting Without
Retaining feature inner ring Set screws
Rubber seating ring Without
Sealing bearing Seal and flinger on both sides
Sealing unit Optional end cover
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 274 g
eClass name Bearing with spherical outside surface
EAN 7316570979596
Product net weight 8.592 kg
