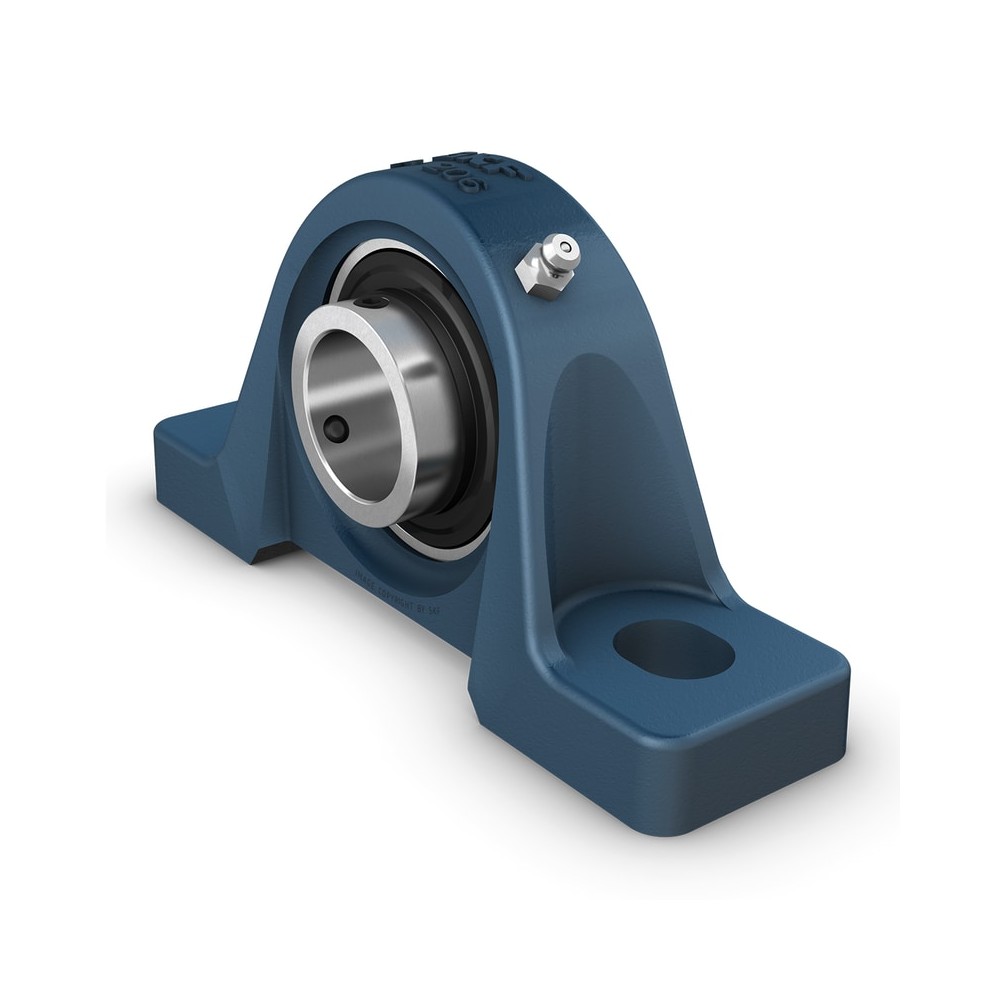

SKF UCP 207/H Ball bearing units

SKF UCP 207/H Ball bearing units

Product Code: UCP 207/H
Part/No: Eshop020670
Brand: SKF
Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is strong and stiff, and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.
Strong
Designed for a constant and alternating rotation
Ready to mount
Lubricated and sealed bearing
Quick locking onto the shaft
Cost-effective
€76.66
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 35 mm
Performance
Basic dynamic load rating 25.5 kN
Basic static load rating 15.3 kN
Limiting speed 4,300 r/min
Properties
Centre height pillow block 47.6 mm
Bearing width total 42.9 mm
Centre distance between bolt holes 127 mm
Housing overall width 46 mm
Note Limiting speed with shaft tolerance h6
Housing type Pillow block
Sealing type Contact, standard
Bore type Cylindrical
Lubricant Grease
Material housing Cast iron
Fastening bolt hole type Plain
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole With
Grease fitting With
Retaining feature inner ring Set screws
Rubber seating ring Without
Sealing bearing Seal and flinger on both sides
Sealing unit Without
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 1.589 kg
eClass name Flanged housing unit
EAN 7316579751841
Product net weight 1.236 kg
