SKF UCP 312 Ball bearing units

SKF UCP 312 Ball bearing units

Product Code: UCP 312
Part/No: 042906
Brand: SKF

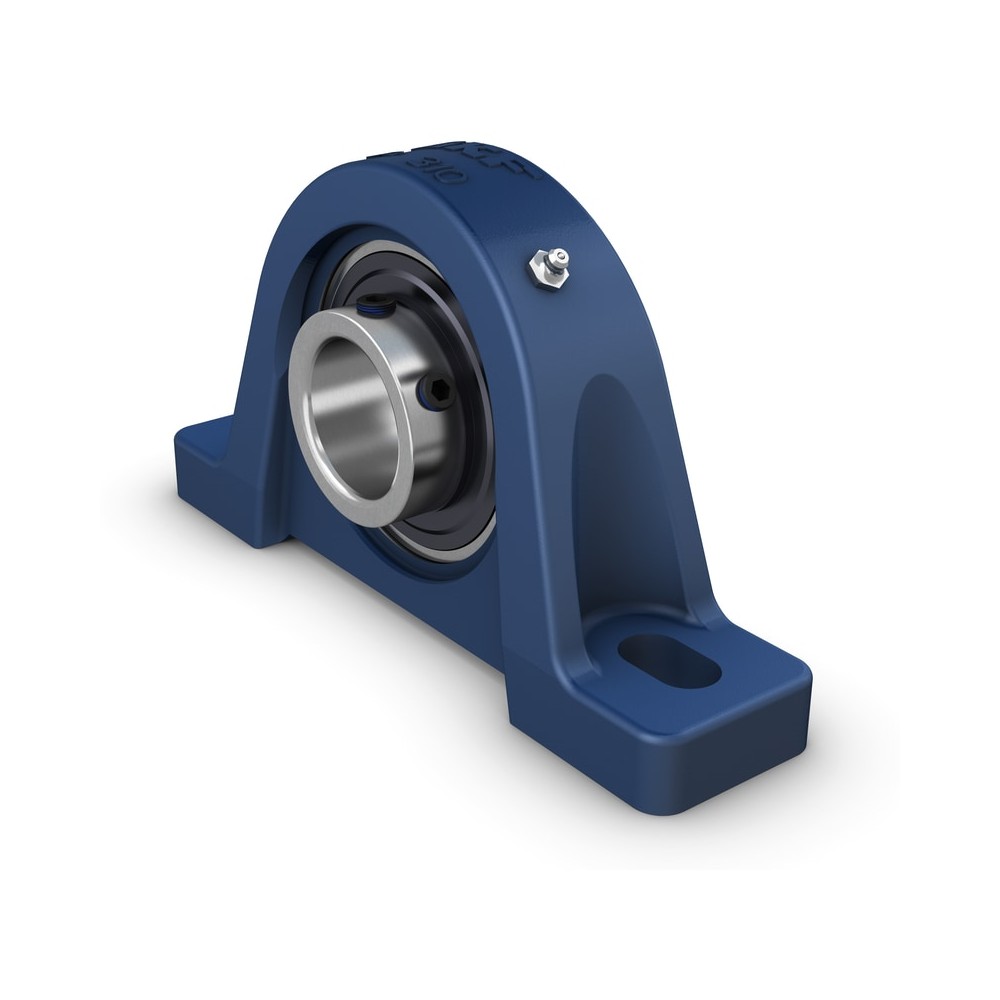

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is strong and stiff, and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.
Strong
Designed for a constant and alternating rotation
Ready to mount
Lubricated and sealed bearing
Quick locking onto the shaft
Cost-effective
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Dimensions
Shaft diameter 60 mm
Performance
Basic dynamic load rating 81.9 kN
Basic static load rating 52 kN
Limiting speed 2,900 r/min
Properties
Centre height pillow block 85 mm
Bearing width total 71 mm
Centre distance between bolt holes 250.5 mm
Housing overall width 72 mm
Note Limiting speed with shaft tolerance h6
Housing type Pillow block
Sealing type Contact, standard
Bore type Cylindrical
Lubricant Grease
Material housing Cast iron
Fastening bolt hole type Plain
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole With
Grease fitting With
Retaining feature inner ring Set screws
Rubber seating ring Without
Sealing bearing Seal and flinger on both sides
Sealing unit Without
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 9.876 kg
eClass name Flanged housing unit
EAN 7316579542265
Product net weight 5.05 kg
