SKF UCPA 205/H Ball bearing units

SKF UCPA 205/H Ball bearing units

Product Code: UCPA 205/H
Part/No: Eshop020697
Brand: SKF

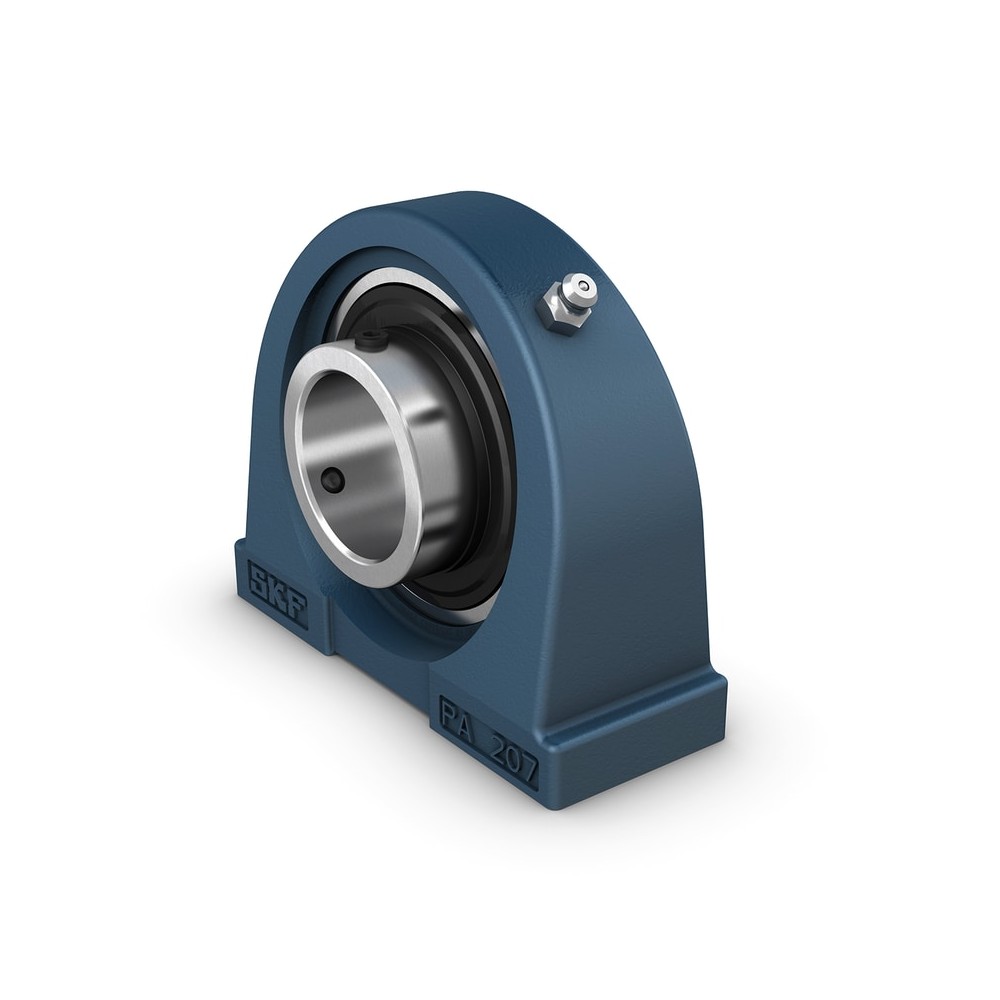

Short base pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing. This variant has threaded holes for attachment bolts and is suitable for applications where the direction of rotation is constant or alternating. It has an inner ring extended on both sides and is locked onto the shaft by tightening two set screws on the inner ring, making it easy to mount. The units are compliant with Japanese Industrial Standards (JIS).
Optimized for applications where space is limited
Ready to mount
Lubricated and sealed bearing
Quick locking onto the shaft
Extended inner ring for minimized shaft misalignment
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 25 mm
Performance
Basic dynamic load rating 14 kN
Basic static load rating 7.8 kN
Limiting speed 5,850 r/min
Properties
Centre height pillow block 36.5 mm
Bearing width total 34.1 mm
Centre distance between bolt holes 56 mm
Housing overall width 40 mm
Note Limiting speed with shaft tolerance h6
Housing type Pillow block
Sealing type Contact, standard
Bore type Cylindrical
Lubricant Grease
Material housing Cast iron
Fastening bolt hole type Threaded
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole With
Grease fitting With
Retaining feature inner ring Set screws
Rubber seating ring Without
Sealing bearing Seal and flinger on both sides
Sealing unit Without
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 0.782 kg
eClass name Flanged housing unit
EAN 7316579751865
Product net weight 36.7 kg
