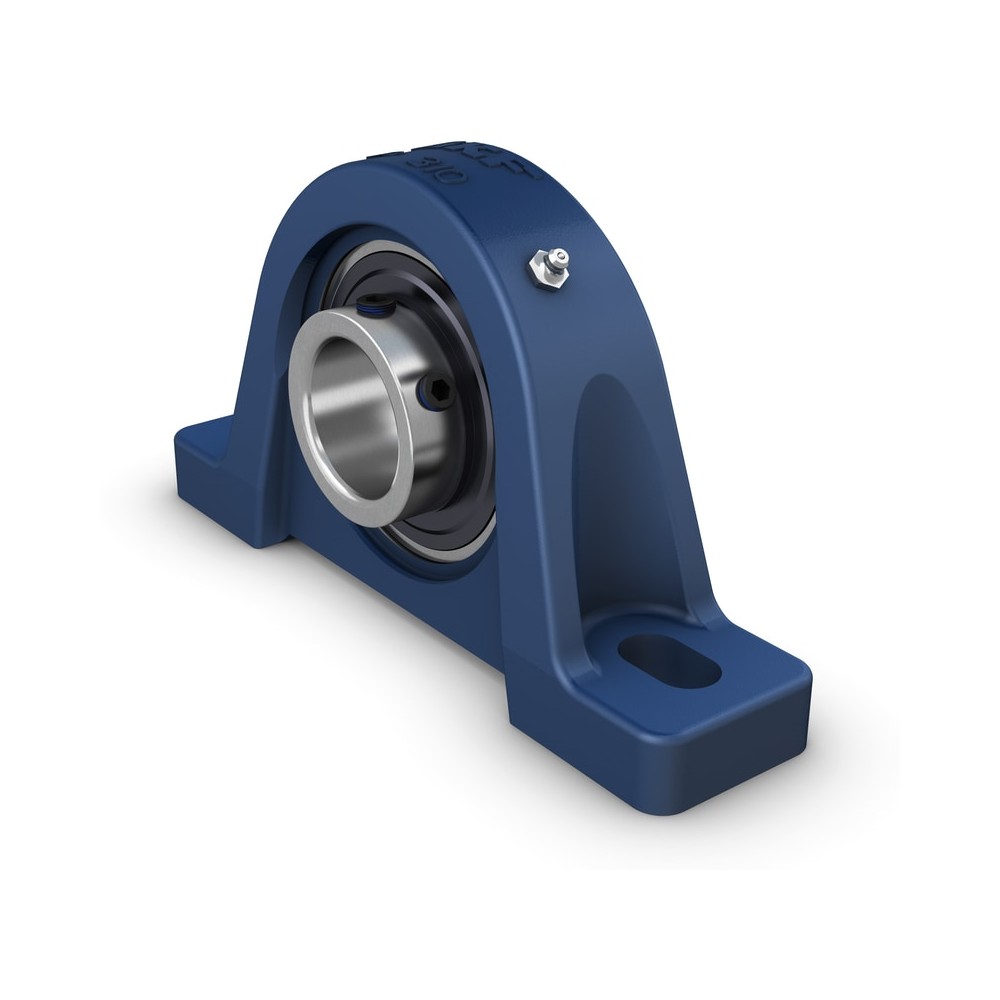

SKF UCPX16 Ball bearing units

SKF UCPX16 Ball bearing units

Product Code: UCPX16
Part/No: Eshop020713
Brand: SKF
Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is strong and stiff, and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.
Strong
Designed for a constant and alternating rotation
Ready to mount
Lubricated and sealed bearing
Quick locking onto the shaft
Cost-effective
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 80 mm
Performance
Basic dynamic load rating 83.2 kN
Basic static load rating 64 kN
Limiting speed 1,800 r/min
Properties
Centre height pillow block 95.2 mm
Bearing width total 85.7 mm
Centre distance between bolt holes 247 mm
Housing overall width 83 mm
Note Limiting speed with shaft tolerance h6
Housing type Pillow block
Sealing type Contact, standard
Bore type Cylindrical
Lubricant Grease
Material housing Cast iron
Fastening bolt hole type Plain
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole With
Grease fitting With
Retaining feature inner ring Set screws
Rubber seating ring Without
Sealing bearing Seal and flinger on both sides
Sealing unit Without
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 12.5 kg
eClass name Flanged housing unit
EAN 7316579952729
Product net weight 6.5 kg
