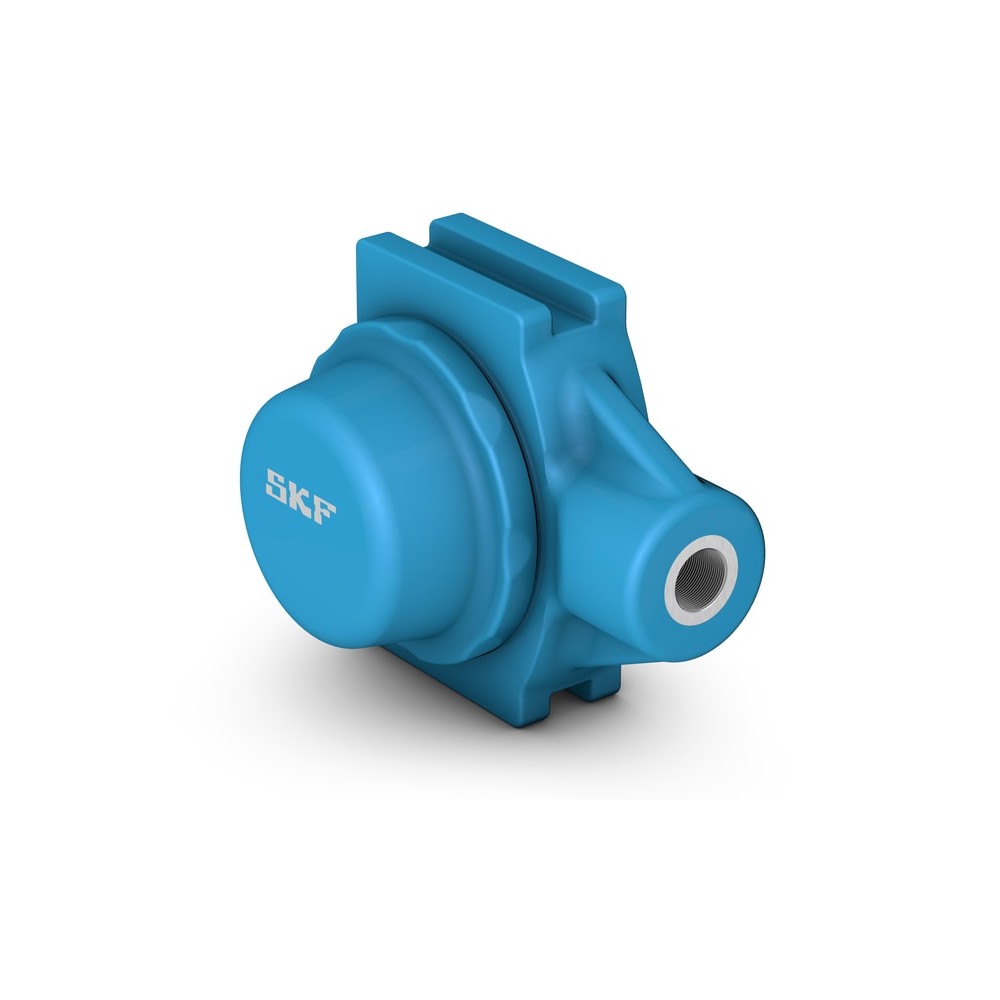

SKF WSTUC 30M-CPSS-DFH Ball bearing units

SKF WSTUC 30M-CPSS-DFH Ball bearing units

Product Code: WSTUC 30M-CPSS-DFH
Part/No: Eshop021074
Brand: SKF
Take-up ball bearing units for the SKF Food Line, consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a composite housing. They are strong, yet lightweight, and chemically resistant to detergents and contaminants. This variant is intended for use in applications where the direction of rotation is alternating. It has an inner ring extended on one side and is locked by tightening a set screw on the inner ring, which makes it easy to mount.
Strong, yet lightweight
Chemically resistant
Designed for an alternating rotation
Well suited to follow the highest food safety standards
Reliable in wet environments
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 30 mm
Performance
Basic dynamic load rating 16.3 kN
Basic static load rating 11.2 kN
Limiting speed 700 r/min
Properties
Bearing width total 31.2 mm
Housing overall width 39 mm
Housing type Takeup
Sealing type Contact, gutter
Bore type Cylindrical
Lubricant Grease
Material housing Composite for the SKF Food Line
Housing type 4 Takeup
Relubrication hole Without
Grease fitting Without
Retaining feature inner ring Set screws
Rubber seating ring Without
Sealing bearing Seal on both sides and flinger on one side
Sealing unit End cover and back seal
Coating Without
Material bearing Stainless steel
Logistics
Pack gross weight 0.586 kg
eClass name Bearing with spherical outside surface
EAN 7316577829092
Product net weight 0.352 kg
