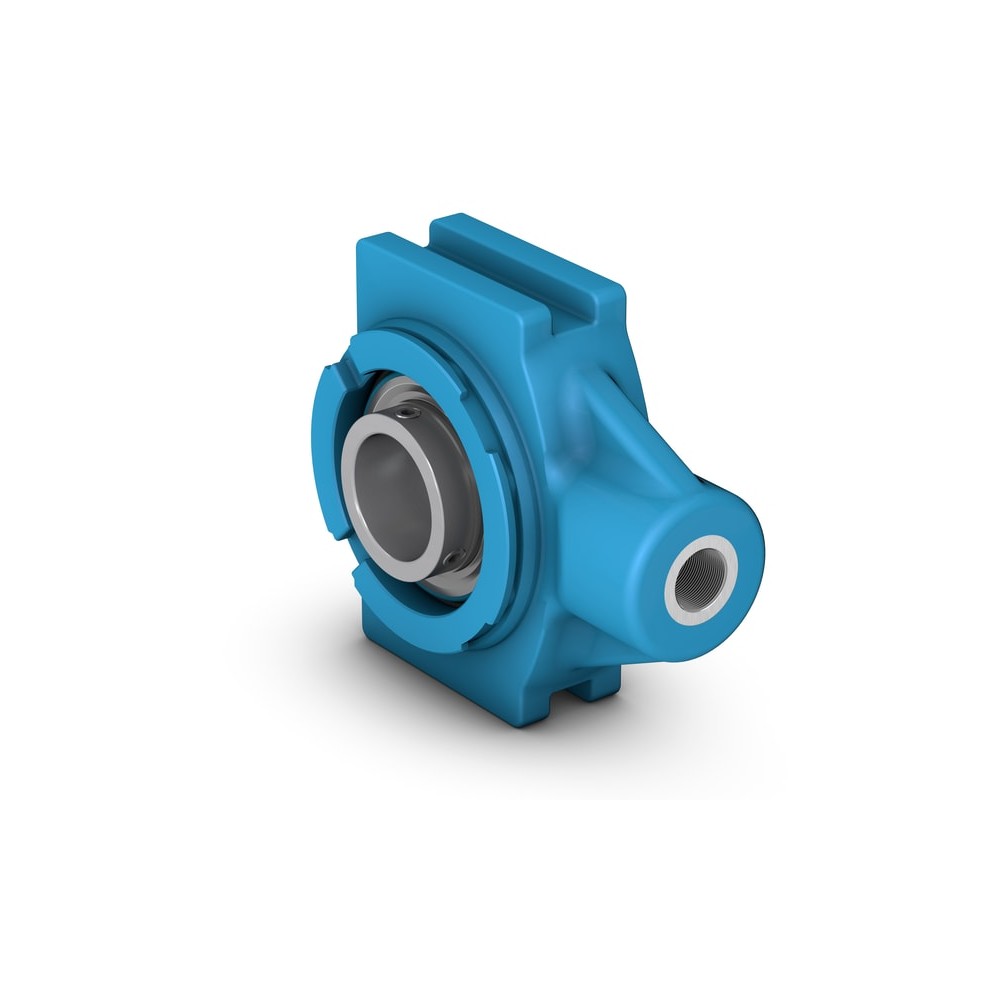

SKF WSTUC 30M-TPSS Ball bearing units

SKF WSTUC 30M-TPSS Ball bearing units

Product Code: WSTUC 30M-TPSS
Part/No: Eshop021075
Brand: SKF
Take-up ball bearing units for the SKF Food Line consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a composite housing. They are strong, yet lightweight, and chemically resistant to detergents and contaminants. Typically mounted in take-up frames, the unit has an inner ring extended on both sides and is locked by tightening a set screw on the inner ring, that makes it easy to mount.
Strong, yet lightweight
Chemically resistant
Designed for an alternating rotation
Well suited to follow the highest food safety standards
Reliable in wet environments
€155.95
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 30 mm
Bearing width total 38.1 mm
Housing overall width 39 mm
Performance
Basic dynamic load rating 16.3 kN
Basic static load rating 11.2 kN
Limiting speed 3.800 r/min
Note Limiting speed with shaft tolerance h6
Properties
Shaft diameter 30 mm
Bore type Cylindrical
Lubricant Grease
Coating Without
Sealing type Contact, gutter
Material bearing Stainless steel
Retaining feature inner ring Set screws
Rubber seating ring Without
Housing type Take-up
Material housing Composite for the SKF Food Line
Relubrication hole Without
Grease fitting Without
Sealing bearing Seal and flinger on both sides
Sealing unit Optional end cover
Logistics
EAN code 07316577831040
Product net weight 0.501 kg
eClass name Bearing with spherical outside surface
