SKF SAF 522 Bearing housings

SKF SAF 522 Bearing housings

Product Code: SAF 522
Part/No: Eshop019442
Brand: SKF

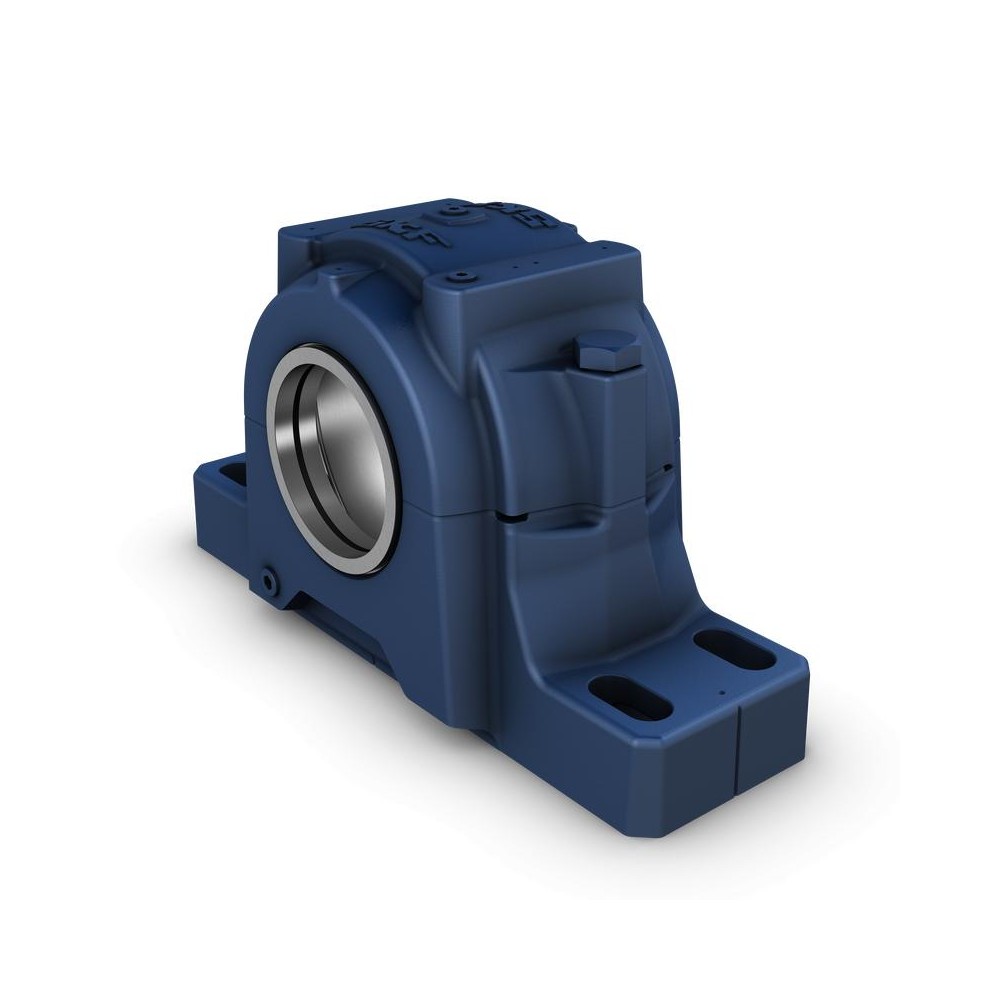

SAF split plummer (pillow) block housings have a two-piece, cast metal construction with inch dimensions. These housings have been developed to be the best choice for design, quality, robustness, and cost efficiency. SAF housings, when used with SKF bearings, seals and related components, provide a tailored solution to achieve maximum service life and reduce maintenance requirements for rotating equipment.
Robust design
Customizable configurations
Suitable for tough operating conditions
Cost-effective bearing solution
€1,034.20
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Centre height pillow block 125.4252 mm
Centre distance between bolt holes 344.4875 mm
Centre distance between bolt holes axial direction 69.85 mm
Diameter of bearing seat 200 mm
Properties
Housing type Pillow block
Material housing Cast iron
Number of bolt holes for fasteners 4
Bearing housing seal type Labyrinth seal
Housing configuration Two-piece
Mounting arrangement Through shaft/Shaft end
Housing lubrication feature possibility Grease/Oil
Logistics
EAN code 07316576670114
Product net weight 24 kg
eClass name Plummer block housing
