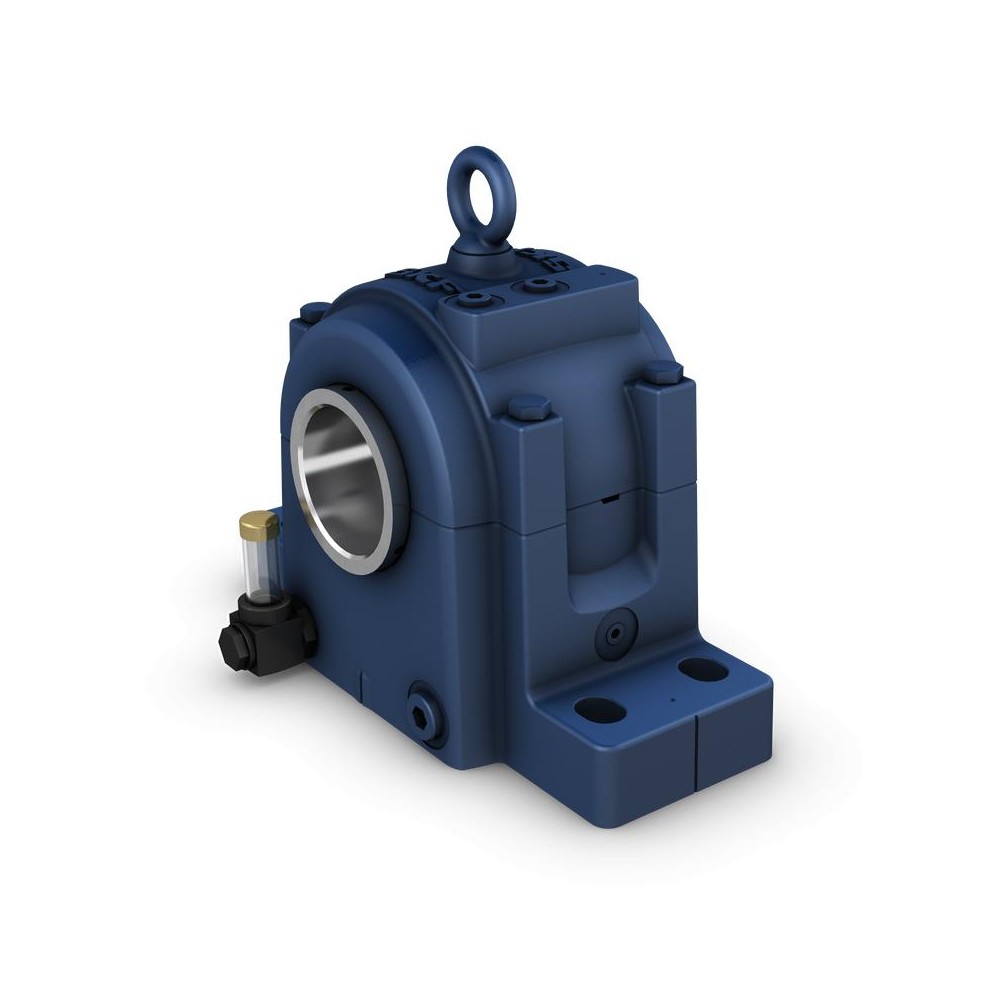

SKF SONL 218-518 K7 Bearing housings

SKF SONL 218-518 K7 Bearing housings

Product Code: SONL 218-518 K7
Part/No: Eshop019823
Brand: SKF
SONL pillow (plummer) block housings are specially designed for oil lubrication. They can accommodate high temperatures and bearings operating at high speeds. They have a strong, stiff design and are characterized by a number of built-in features that maximize the effects of the lubricant and extend bearing service life.
Designed for oil lubrication
Can accommodate high temperatures
Can accommodate high bearing operating speeds
Robust design
Long service life
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Properties
Centre distance between bolt holes axial direction 70 mm
Width of bearing seat 50 mm
Centre height pillow block 135 mm
Centre distance between bolt holes 290 mm
Diameter of bearing seat 160 mm
Attachment bolt diameter 20 mm
Housing type Plummer/pillow block
Housing configuration Twopiece
Material housing Cast iron
Bearing housing seal type Oil seal
Housing configuration 3 Twopiece
Housing type 4 Plummer/pillow block
Mounting arrangement Through shaft/Shaft end
Number of bolt holes for fasteners 4
Housing lubrication feature possibility Oil
Logistics
Pack gross weight 28.1 kg
eClass name Plummer block housing
EAN 7316572311295
Product net weight 8350.5 g
