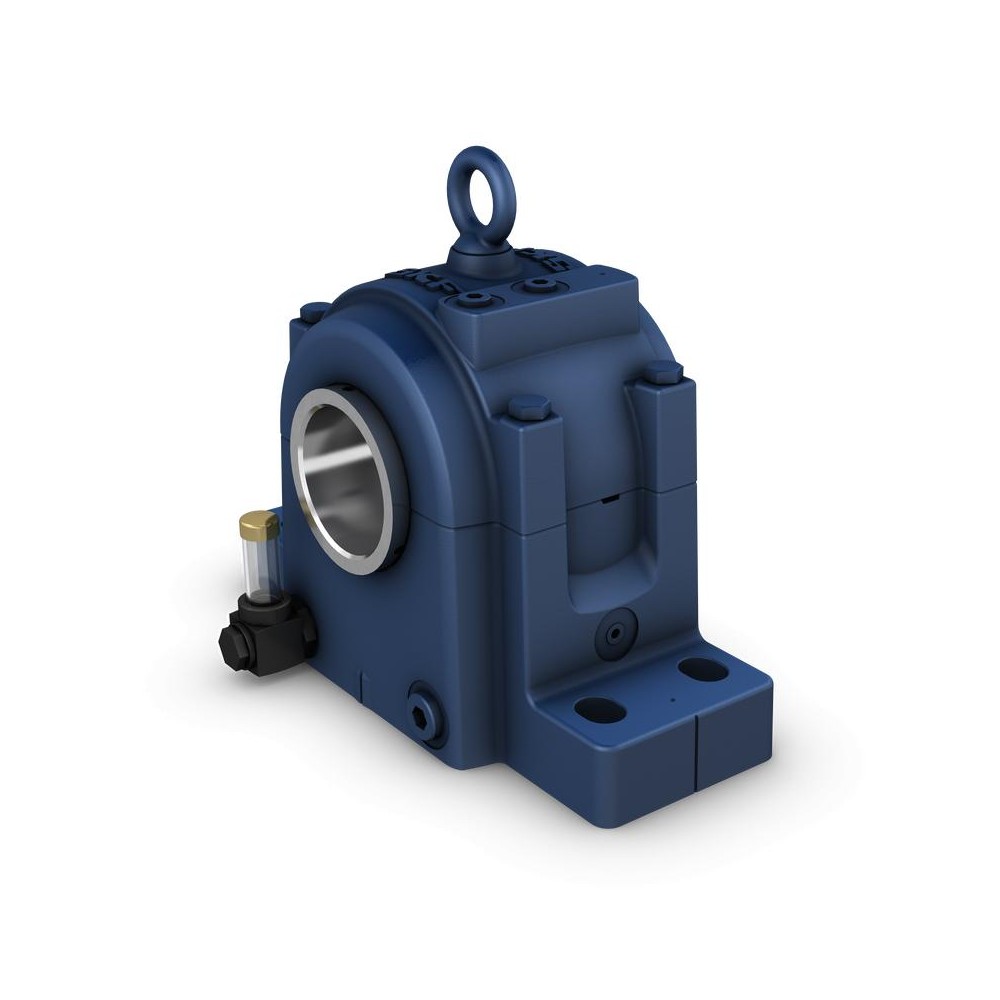

SKF SONL 222-522 Bearing housings

SKF SONL 222-522 Bearing housings

Product Code: SONL 222-522
Part/No: Eshop019825
Brand: SKF
SONL pillow (plummer) block housings are specially designed for oil lubrication. They can accommodate high temperatures and bearings operating at high speeds. They have a strong, stiff design and are characterized by a number of built-in features that maximize the effects of the lubricant and extend bearing service life.
Designed for oil lubrication
Can accommodate high temperatures
Can accommodate high bearing operating speeds
Robust design
Long service life
€5,024.18
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Properties
Centre distance between bolt holes axial direction 75 mm
Width of bearing seat 71 mm
Centre height pillow block 160 mm
Centre distance between bolt holes 347 mm
Diameter of bearing seat 200 mm
Attachment bolt diameter 24 mm
Housing type Plummer/pillow block
Housing configuration Twopiece
Material housing Cast iron
Bearing housing seal type Oil seal
Housing configuration 3 Twopiece
Housing type 4 Plummer/pillow block
Mounting arrangement Through shaft/Shaft end
Number of bolt holes for fasteners 4
Housing lubrication feature possibility Oil
Logistics
Pack gross weight 45.8 kg
eClass name Plummer block housing
EAN 7316572186053
Product net weight 28.1 kg
