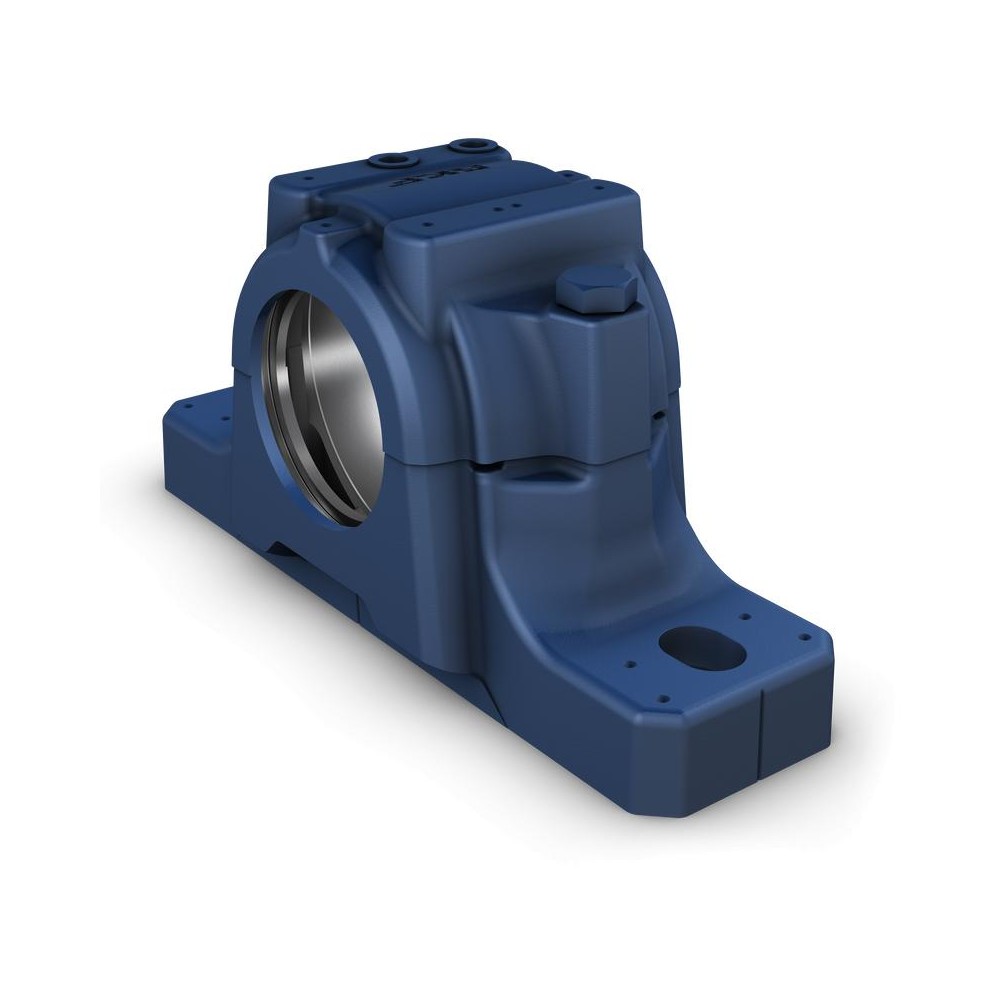

SKF SSNLD 518-615 Bearing housings

SKF SSNLD 518-615 Bearing housings

Product Code: SSNLD 518-615
Part/No: Eshop019871
Brand: SKF
SNL plummer (pillow) block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.
Easy to install
Cost-effective bearing arrangement
Reduce maintenance
Minimize lubricant leakage
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Properties
Width of bearing seat 65 mm
Centre height pillow block 100 mm
Centre distance between bolt holes 290 mm
Diameter of bearing seat 160 mm
Attachment bolt diameter 20 mm
Housing type Plummer/pillow block
Housing configuration Twopiece
Material housing Spheroidal graphite cast iron
Bearing housing seal type Without
Housing configuration 3 Twopiece
Housing type 4 Plummer/pillow block
Mounting arrangement Through shaft/Shaft end
Number of bolt holes for fasteners 2
Housing lubrication feature possibility Grease
Logistics
Pack gross weight 12.849 kg
eClass name Plummer block housing
EAN 7316571831145
Product net weight 9.5 kg
