SKF TKBA 21 Belt alignment tools

SKF TKBA 21 Belt alignment tools

Product Code: TKBA 21
Part/No: Eshop042441
Brand: SKF

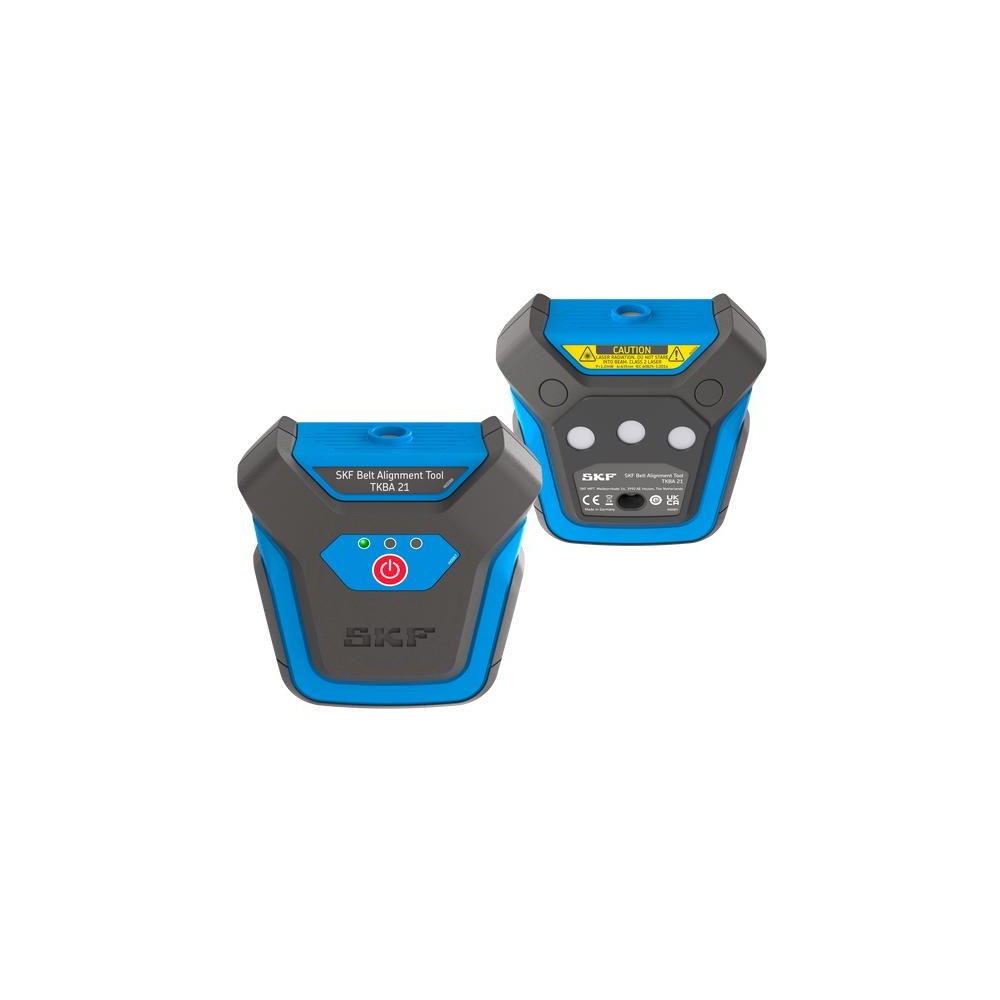

The TKBA 21 alignment tool has two components: a laser-emitting unit and a receiver unit. Each is attached quickly and easily – using a powerful magnet – to the inside or outside face of a belt pulley or chain sprocket. The TKBA 21 can be applied to most
Fast, easy attachment – using powerful magnets
Two laser receiver/transmitter units
Simplified alignment process
Simultaneous adjustment of tension and alignment
Applicable to most machines using V belts, banded belts, ribbed belts – as well a
€1,249.87
Tax included
Quantity

100% Shopping Security
  On Request
Properties
Content 2x TKBA 21 transmitter units,6x AAA batteries,1x printed instructions for use,1x Carrying case (size B)
Recommended applications Most machines using V belts, banded belts, ribbed belts, most other belts,Chain sprockets
Colour Blue, Dark Grey
Total product weight 1.62 kg
Housing material PC/ABS blend, overmoulded with TPU rubber
Relative humidity 10 to 90%, non-condensing
Recommended storage temperature -20 – 60 °C
Battery 3x AAA (Alkaline (incl.) or Rechargable)
Degree of protection (IP) IP 40
Operating temperature range 0 – 40 °C
Target type Second transmitter unit
Target weight 0.25 kg
Transmitter weight 0.25 kg
Battery Life 32 h
Laser power max 1 mW
Laser power class 2
Laser type Visible red line laser
Laser wavelength 635 nm
Laser line length (at 2 m) 2.4 m
Measurement accuracy angular (at 2 m) 0.02 °
Measurement accuracy offset 0.5 mm
Mounting Magnetic, side mounted
Logistics
EAN code 07316581937523
Product net weight 1.59 kg
eClass name Product for mounting and dismounting and for maintenance
Pack gross weight 1.74 kg
UNSPSC name Heat tracing equipment
