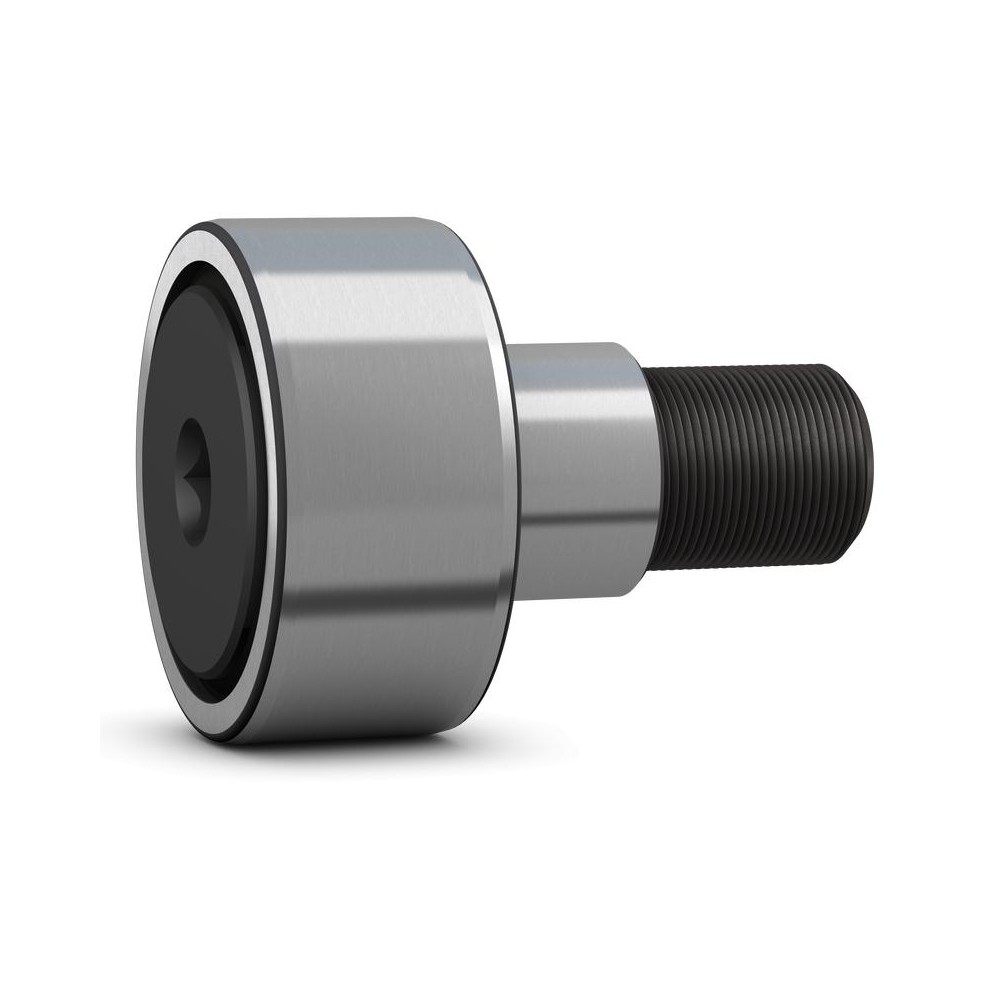

SKF KRE 47 PPA Cam followers

SKF KRE 47 PPA Cam followers

Product Code: KRE 47 PPA
Part/No: Eshop012946
Brand: SKF
Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. The design includes an eccentric collar pressed onto the stud, and a thick-walled outer ring with a crowned running surface. The bearings are supplied sealed and ready-to-mount, and can be relubricated via the stud.
High radial load carrying capacity
Accommodate axial loads due to skew or tilting
Long service life
Easy to mount
Sealed for increased reliability, with relubrication feature
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Width outer ring 24 mm
Functional outside diameter 47 mm
Length 66 mm
Stud diameter 24 mm
Performance
Basic dynamic load rating 14.7 kN
Basic static load rating 24.5 kN
Limiting speed 3.000 r/min
Properties
Sealing Seal on both sides
Cage With
Lubricant Grease
Number of rows 1
Radial internal clearance Between C2 and CN
Relubrication feature Centre of each stud end
Number of flanges outer ring 2
Coating Without
Sealing type Labyrinth
Material bearing Bearing steel
Tolerance class Other
Rolling elements Needle rollers
Outer ring profile Crowned
Stud alignment Centric stud with eccentric collar
Logistics
EAN code 07316571594941
Product net weight 0.4522 kg
eClass name Needle roller bearing
