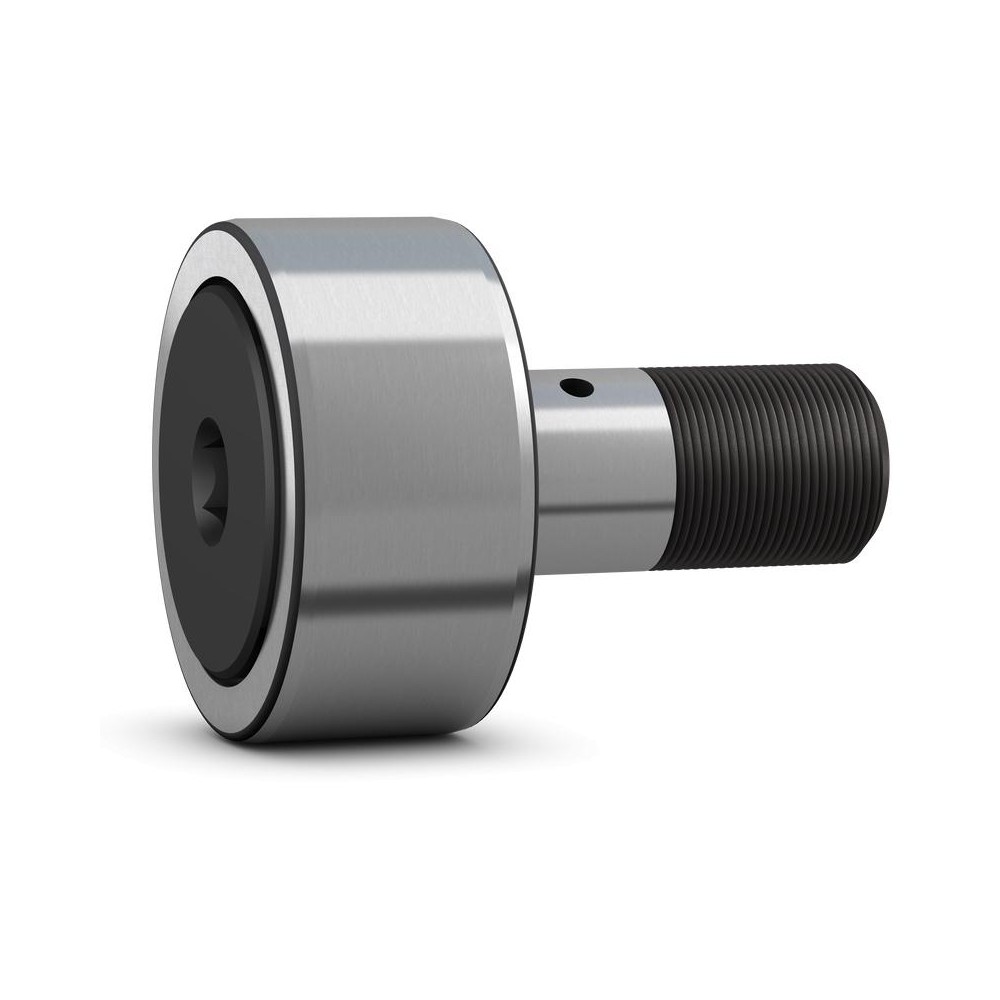

SKF KRV 30 B Cam followers

SKF KRV 30 B Cam followers

Product Code: KRV 30 B
Part/No: Eshop012963
Brand: SKF
Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied ready-to-mount. A narrow gap between the outer ring and the adjacent components forms a gap-type seal. The bearings can be relubricated via the stud.
High radial load carrying capacity
Accommodate axial loads due to skew or tilting
Long service life
Easy to mount
Sealed for increased reliability, with relubrication feature
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Width outer ring 14 mm
Functional outside diameter 30 mm
Length 40 mm
Stud diameter 12 mm
Performance
Basic dynamic load rating 8.97 kN
Basic static load rating 14.6 kN
Limiting speed 3.200 r/min
Properties
Sealing Seal on both sides
Cage Without
Lubricant Grease
Number of rows 1
Radial internal clearance Between C2 and CN
Relubrication feature Centre of each stud end and radial hole in stud shank
Number of flanges outer ring 2
Coating Without
Sealing type Gap-type
Material bearing Bearing steel
Tolerance class Other
Rolling elements Needle rollers
Outer ring profile Crowned
Stud alignment Centric
Logistics
EAN code 07316571590585
Product net weight 0.089 kg
eClass name Needle roller bearing
