SKF TMMK 10-35 Combined mounting and dismounting sets

SKF TMMK 10-35 Combined mounting and dismounting sets

Product Code: TMMK 10-35

Part/No: 033972

Brand: SKF

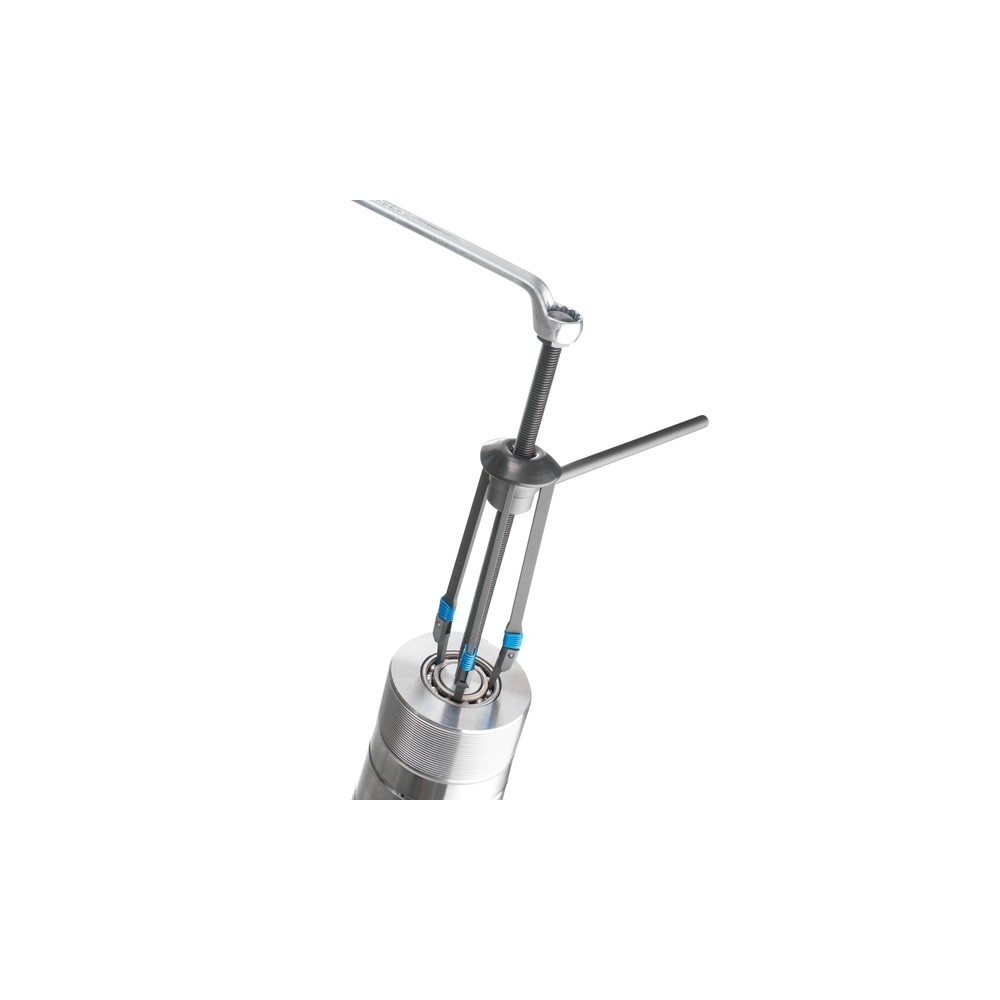

The SKF TMMK series is designed for the quick and precise mounting and dismounting of deep groove ball bearings from and in shafts, housings and blind housings. For mounting, a multi-purpose fitting tool is included which is suitable for mounting bearings as well as bushings, seal rings, belt pulleys and other similar products. The puller for dismounting grips inside the deep groove bearings raceway with especially designed claws.

For selected deep groove bearing the one kit to dismount and mount them
Allows dismounting bearings from all bearing arrangements
Easy to select and assemble puller
Dismounting force generation by hammer or spindle
Multi-purpose fitting tool included
Mounting force generation with a dead blow hammer for higher efficiency

€1,487.94

Tax included

Quantity

100% Shopping Security

Shipped within 24 hours

Dimensions

Performance

Properties

Material Rings: Impact resistant polyamide (PA);Sleeve material: Glassfiber filled polyamide (PA);Hammer: Steel,PU;Puller: Medium carbon steels and alloy engineering steels, black phosphated, hardened and tempered

Workpiece bore diameter For mounting: 10 to 35 mm;For dismounting 10 to 85 mm

Case dimensions (lxhxw) 530 x 110 x 360 mm

Hammer length 12.401574885 in

Hammer type Dead blow hammer

Sleeve, outer diameter A: 25 mm;B: 45 mm

Sleeve outer lengths A: 228 mm;B: 235 mm

Colour Hammer: Black/Blue;Puller: Black metallic;Rings: Black;Sleeves: Black

Suitable for bearing type (s) Mounting: All types;Dismounting SKF Deep Groove Ball Bearings (DGBB's)

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) Yes

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) Yes

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) 2 Yes

Dismounting force generation Mechanical spindle or Sliding hammer
