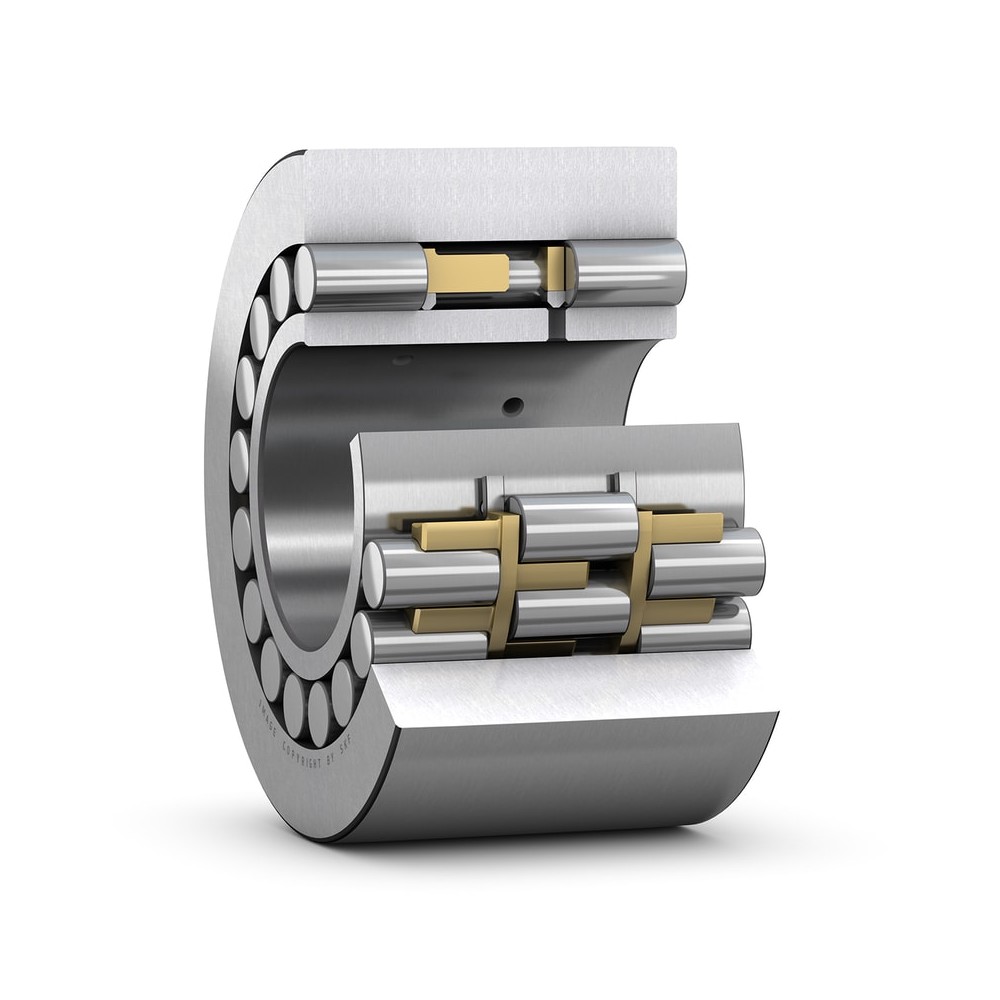

SKF 314833 B Cylindrical roller bearings

SKF 314833 B Cylindrical roller bearings

Product Code: 314833 B
Part/No: Eshop003501
Brand: SKF
Backing bearings have been specially developed for cold rolling mills of the cluster type, but can also be used for other applications, such as straightening or bending machines. These bearings have a particularly thick-walled outer ring and can be mounted on stationary support shafts to form backup or straightening rolls.
Super-precision quality for tolerances of run-out
Very tight tolerances for the cross-sectional height
Designed for high loads
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 130 mm
Width inner ring 172.64 mm
Width outer ring 172.64 mm
Performance
Basic dynamic load rating 1,170 kN
Basic static load rating 1,800 kN
Properties
Functional outside diameter 300 mm
Sealing Without
Bore type Cylindrical
Cage Machined metal
Number of rows 3
Radial internal clearance NSTD
Relubrication feature With
Tolerance class NSTD
Bearing part Complete bearing
Coating Without
Design Without axial guidance
Logistics
Pack gross weight 76.36 kg
EAN 7316570525045
Product net weight 72.252 kg
