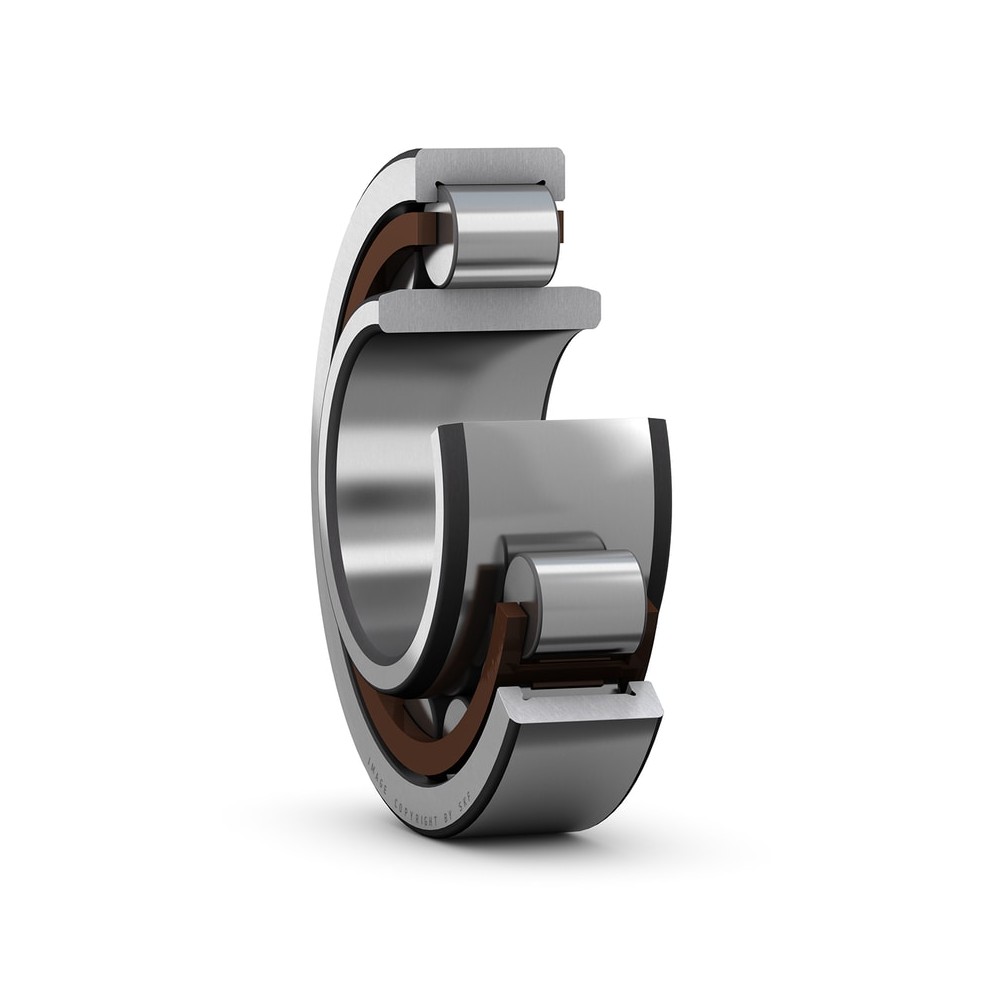

SKF BC1B 320330 A Cylindrical roller bearings

SKF BC1B 320330 A Cylindrical roller bearings

Product Code: BC1B 320330 A
Part/No: Eshop010014
Brand: SKF
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NUB design bearings can accommodate axial displacement in both directions. The inner ring is extended on both sides, enabling larger axial displacements. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 55 mm
Outside diameter 100 mm
Width 62 mm
Performance
Basic dynamic load rating 114 kN
Basic static load rating 118 kN
Limiting speed 8,000 r/min
Reference speed 7,000 r/min
Properties
Sealing Without
Bore type Cylindrical
Cage Nonmetallic
Locating feature bearing outer ring None
Lubricant None
Number of rows 1
Radial internal clearance C3
Relubrication feature Without
Tolerance class Normal
Bearing part Complete bearing
Number of flanges outer ring 2
Coating Without
Inner ring extension On both sides
Axial displacement capability In both directions
Logistics
Pack gross weight 1.147 kg
EAN 7316574933648
Product net weight 264.2 g
