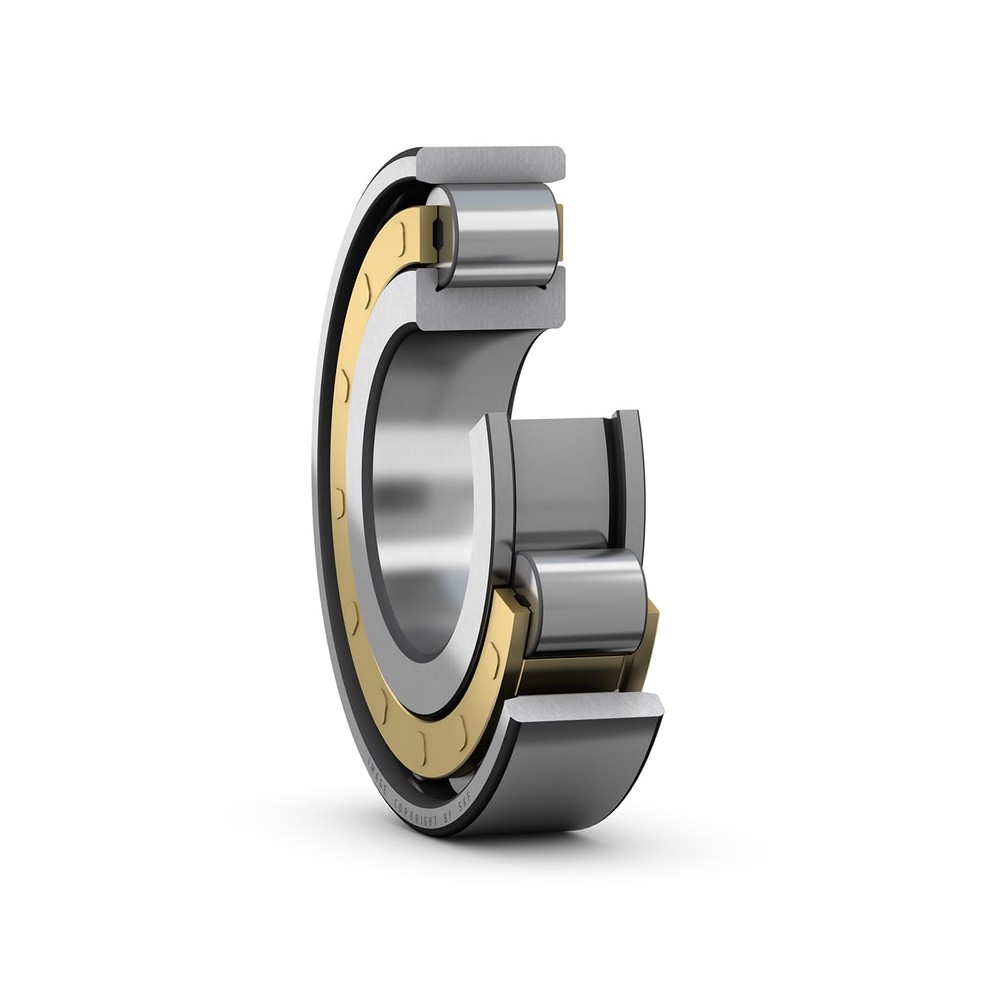

SKF N 326 ECM Cylindrical roller bearings

SKF N 326 ECM Cylindrical roller bearings

Product Code: N 326 ECM
Part/No: 043799
Brand: SKF
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the inner ring and no flanges on the outer ring, N design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Dimensions
Bore diameter 130 mm
Outside diameter 280 mm
Width 58 mm
Performance
Basic dynamic load rating 720 kN
Basic static load rating 750 kN
Limiting speed 3,000 r/min
Reference speed 2,400 r/min
Properties
SKF performance class SKF Explorer
Sealing Without
Bore type Cylindrical
Cage Machined metal
Locating feature bearing outer ring None
Lubricant None
Number of rows 1
Radial internal clearance CN
Relubrication feature Without
Tolerance class Normal
Bearing part Complete bearing
Number of flanges inner ring 2
Coating Without
Axial displacement capability In both directions
Logistics
Pack gross weight 18080.7 g
eClass name Cylindrical roller bearing
EAN 7316577054456
Product net weight 13.16 kg
