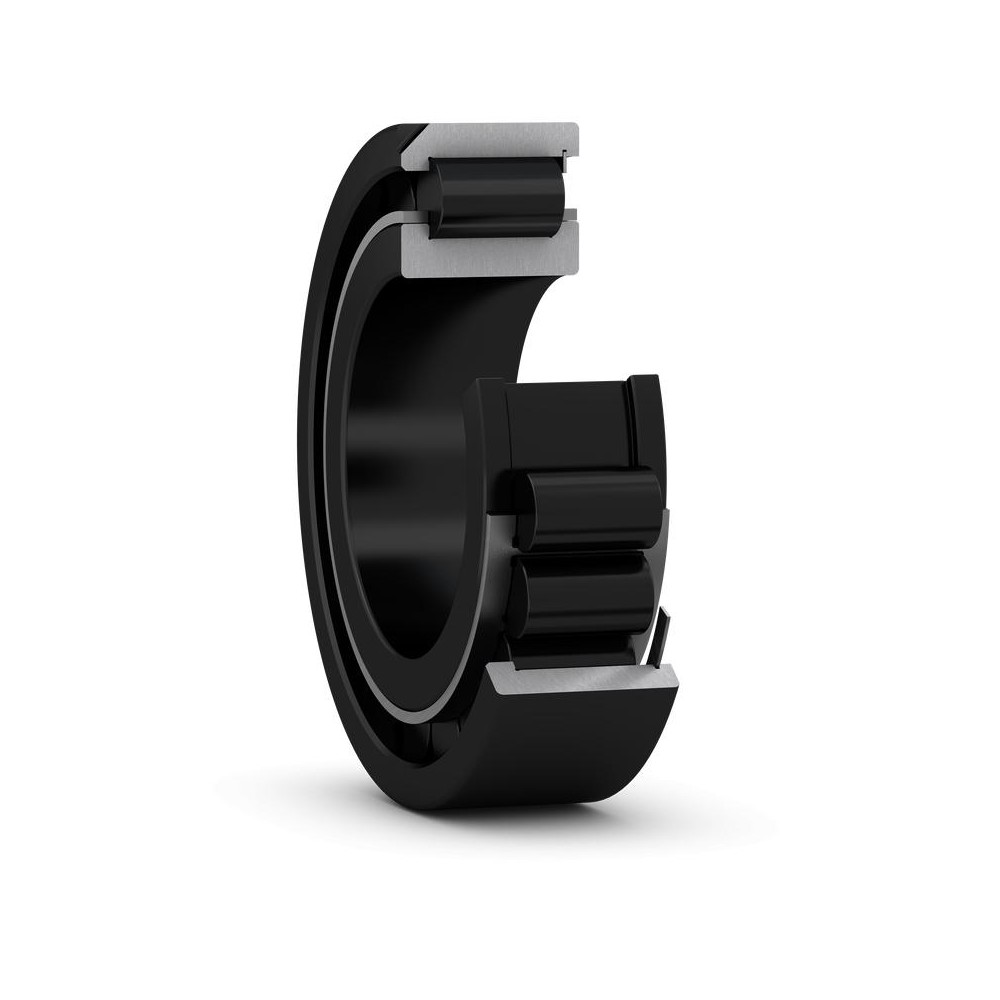

SKF NCF 2232 ECN1JB/L4BC3 Cylindrical roller bearings

SKF NCF 2232 ECN1JB/L4BC3 Cylindrical roller bearings

Product Code: NCF 2232 ECN1JB/L4BC3
Part/No: Eshop013669
Brand: SKF
SKF single row high-capacity cylindrical roller bearings have the very high load carrying capacity of full complement bearings and the high speed capability of bearings with a cage. They are designed for applications such as industrial gearboxes, wind turbine gearboxes and mining equipment. Their internal design enables the bearings to accommodate axial displacement in one direction. The bearings are of non-separable design.
Very high radial load carrying capacity
High speed capability
High radial stiffness
Long service life
Locate the shaft axially in one direction
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 160 mm
Outside diameter 290 mm
Width 80 mm
Performance
Basic dynamic load rating 980 kN
Basic static load rating 1,270 kN
Limiting speed 3,000 r/min
Reference speed 2,400 r/min
Properties
SKF performance class SKF Explorer
Sealing Without
Bore type Cylindrical
Cage Sheet metal
Locating feature bearing outer ring Locating slot
Lubricant None
Number of rows 1
Radial internal clearance C3
Relubrication feature Without
Tolerance class Normal
Bearing part Complete bearing
Number of flanges inner ring 2
Number of flanges outer ring 1
Coating Coated
Design Nonseparable
Axial displacement capability In one direction
Logistics
Pack gross weight 22.874 kg
eClass name Cylindrical roller bearing
EAN 7316573412922
Product net weight 11.25
