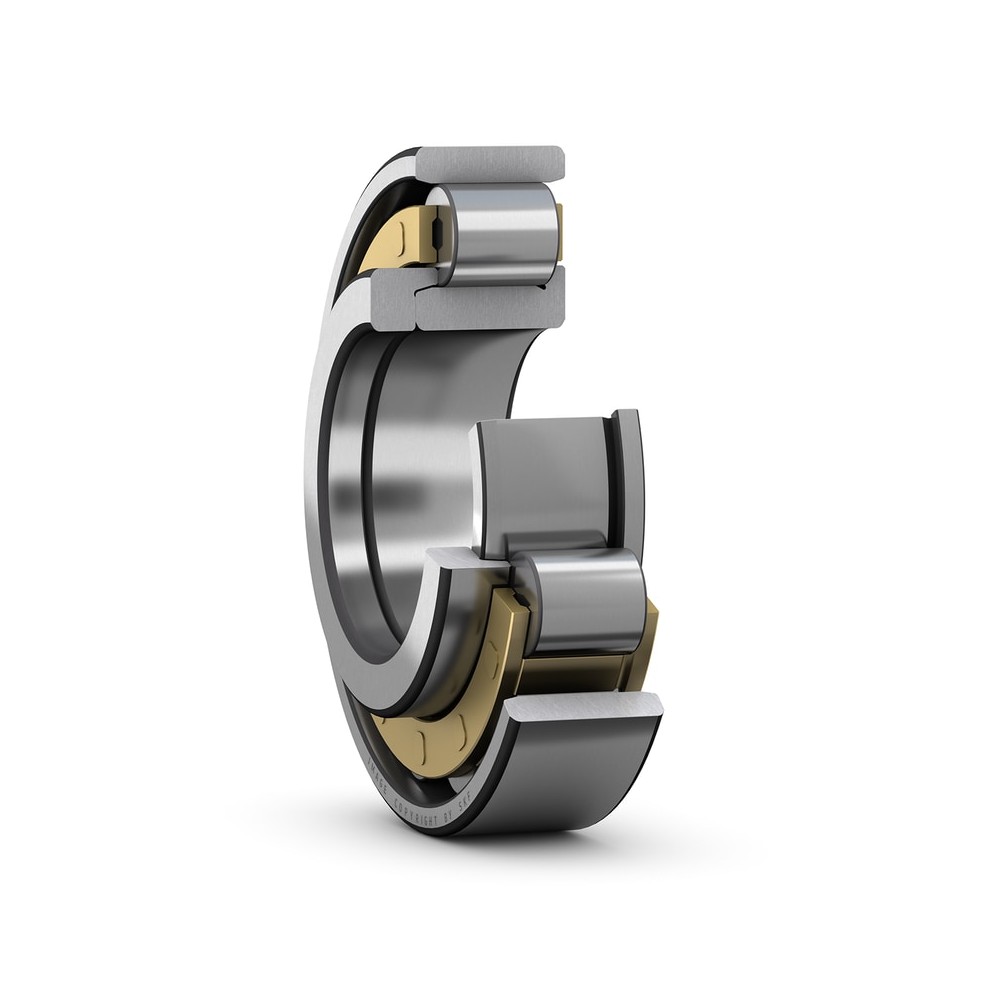

SKF NH 315 VAH Cylindrical roller bearings

SKF NH 315 VAH Cylindrical roller bearings

Product Code: NH 315 VAH
Part/No: Eshop013836
Brand: SKF
Single row cylindrical roller bearings are designed to accommodate high to very high radial loads in combination with medium to high speeds. The SKF assortment includes many designs and variants, such as standard, full complement and high capacity bearings. Depending on the configuration of the outer and inner rings, the bearings are available in locating as well as non-locating designs.
High to very high radial load carrying capacity
Low friction
Long service life
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 75 mm
Outside diameter 160 mm
Width 37 mm
Performance
Basic dynamic load rating 194 kN
Basic static load rating 208 kN
Limiting speed 5.300 r/min
Reference speed 4.500 r/min
Properties
Sealing Without
Bore type Cylindrical
Cage Machined metal
Locating feature bearing outer ring None
Lubricant None
Number of rows 1
Radial internal clearance NSTD
Relubrication feature Without
Bearing part Complete bearing
Number of flanges inner ring 1
Number of flanges outer ring 2
Coating Without
Logistics
EAN code 07316570277197
Product net weight 4.2709 kg
eClass name Cylindrical roller bearing
