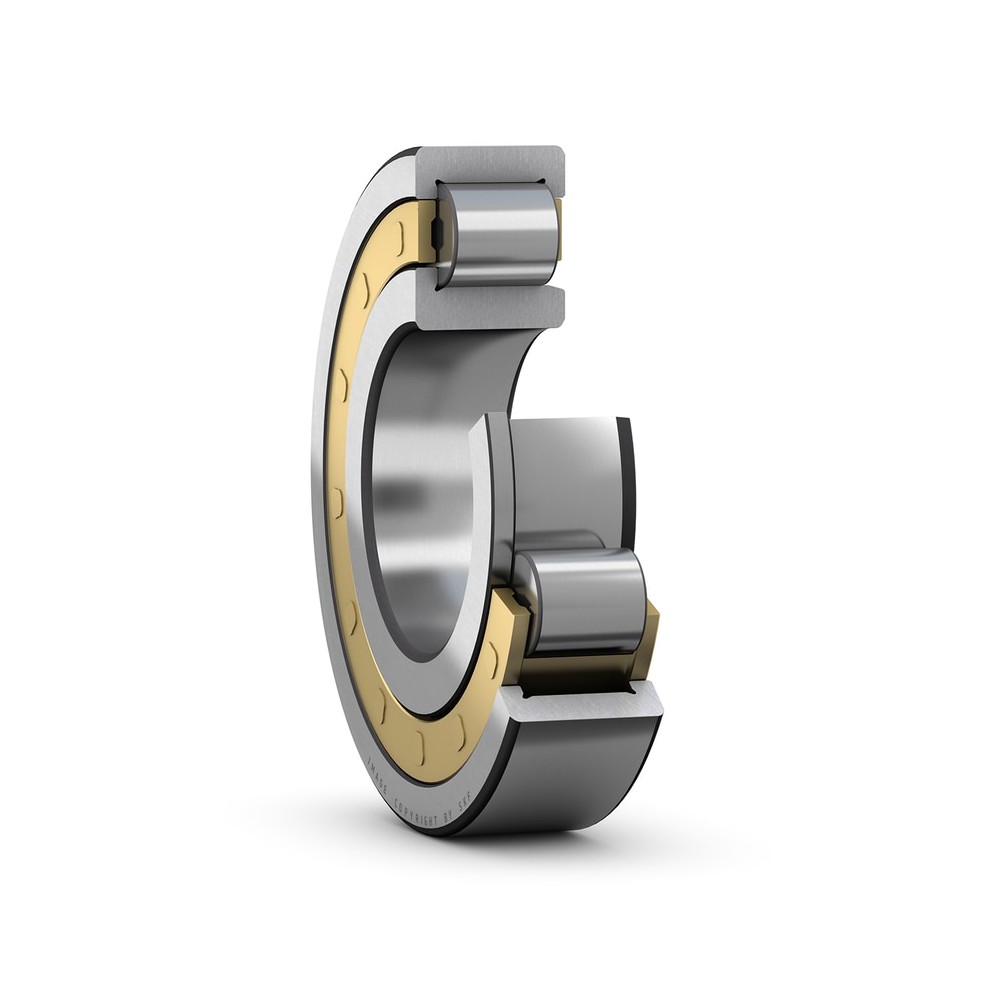

SKF NJ 320 ECM/C4VA301 Cylindrical roller bearings

SKF NJ 320 ECM/C4VA301 Cylindrical roller bearings

Product Code: NJ 320 ECM/C4VA301
Part/No: 041589
Brand: SKF
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design
€2,446.57
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 100 mm
Outside diameter 215 mm
Width 47 mm
Performance
Basic dynamic load rating 450 kN
Basic static load rating 440 kN
Limiting speed 3,800 r/min
Reference speed 3,200 r/min
Properties
Sealing Without
Bore type Cylindrical
Cage Machined metal
Locating feature bearing outer ring None
Lubricant None
Number of rows 1
Radial internal clearance C4
Relubrication feature Without
Tolerance class Normal
Bearing part Complete bearing
Number of flanges inner ring 1
Number of flanges outer ring 2
Coating Without
Axial displacement capability In one direction
Logistics
Pack gross weight 8.774 kg
EAN 7316570203592
Product net weight 7.64 kg
