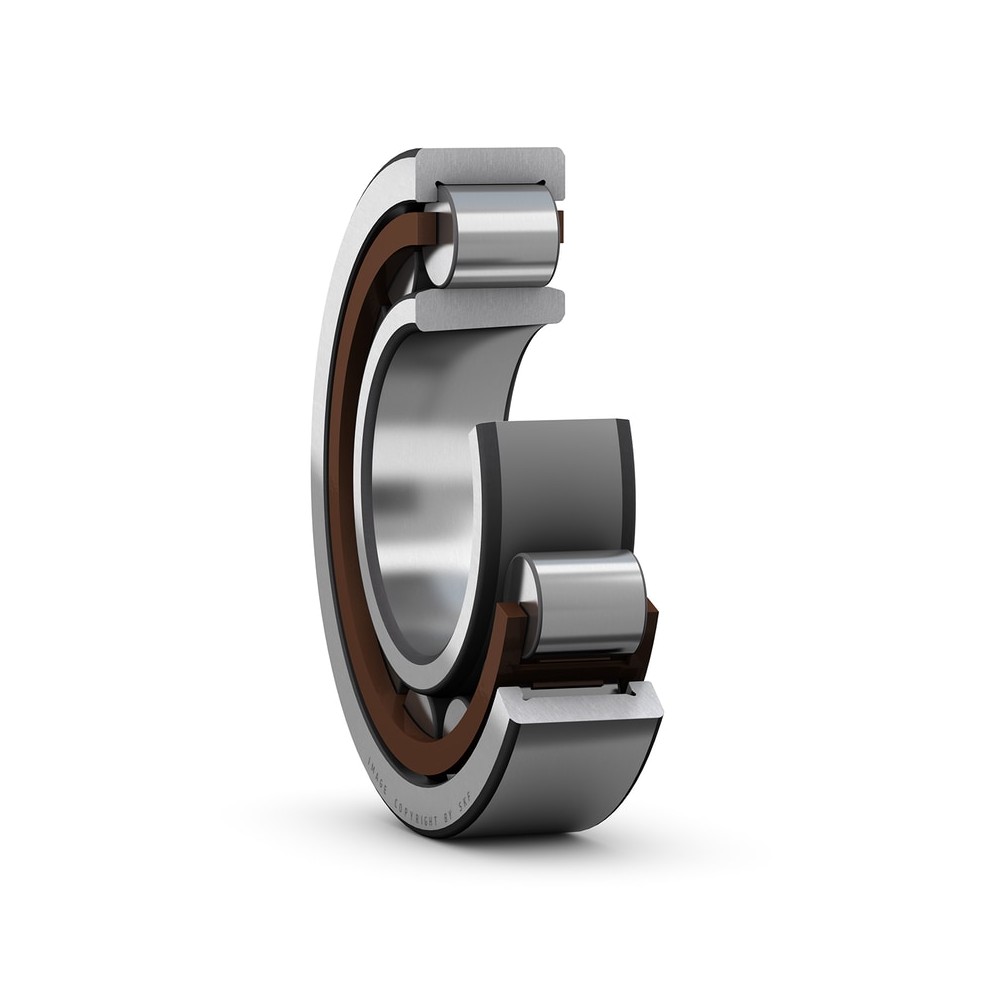

SKF NU 206 ECKP/C3 Cylindrical roller bearings

SKF NU 206 ECKP/C3 Cylindrical roller bearings

Product Code: NU 206 ECKP/C3
Part/No: Eshop015509
Brand: SKF
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. The tapered bore enables the bearings to be mounted on a tapered shaft seat or on a cylindrical shaft seat using an adapter or withdrawal sleeve. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
€173.58
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 30 mm
Outside diameter 62 mm
Width 16 mm
Performance
Basic dynamic load rating 44 kN
Basic static load rating 36.5 kN
Limiting speed 14,000 r/min
Reference speed 13,000 r/min
Properties
SKF performance class SKF Explorer
Sealing Without
Bore type Tapered 1:12
Cage Nonmetallic
Locating feature bearing outer ring None
Lubricant None
Number of rows 1
Radial internal clearance C3
Relubrication feature Without
Tolerance class Normal
Bearing part Complete bearing
Number of flanges outer ring 2
Coating Without
Axial displacement capability In both directions
Logistics
Pack gross weight 205.9 g
EAN 7316577027986
Product net weight 0.204 kg
