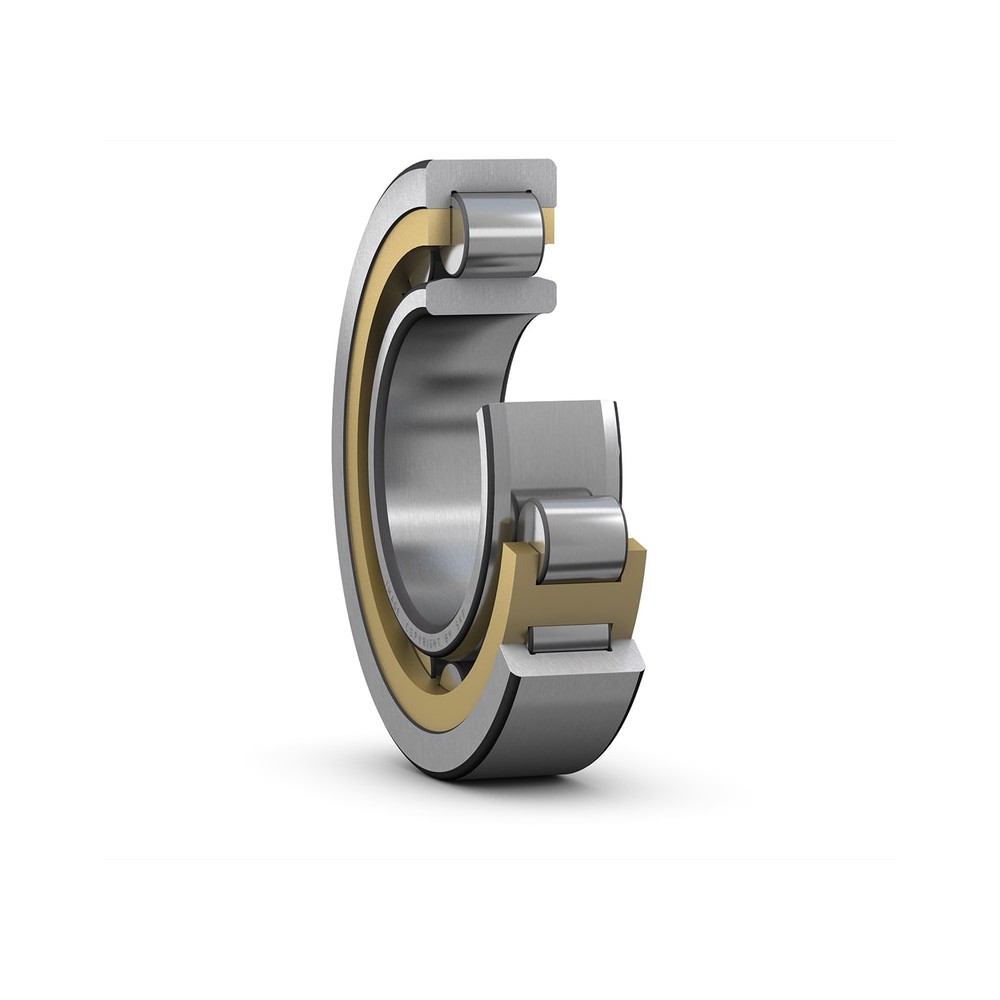

SKF NU 307 ECML/P63R Cylindrical roller bearings

SKF NU 307 ECML/P63R Cylindrical roller bearings

Product Code: NU 307 ECML/P63R
Part/No: Eshop016257
Brand: SKF
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 35 mm
Outside diameter 80 mm
Width 21 mm
Performance
Basic dynamic load rating 75 kN
Basic static load rating 63 kN
Limiting speed 17,000 r/min
Reference speed 9,500 r/min
Properties
SKF performance class SKF Explorer
Sealing Without
Bore type Cylindrical
Cage Machined metal
Locating feature bearing outer ring None
Lubricant None
Number of rows 1
Radial internal clearance C3R
Relubrication feature Without
Tolerance class Class 6 (P6)
Bearing part Complete bearing
Number of flanges outer ring 2
Coating Without
Axial displacement capability In both directions
Logistics
Pack gross weight 544.3 g
EAN 7316571541839
Product net weight 0.484 kg
