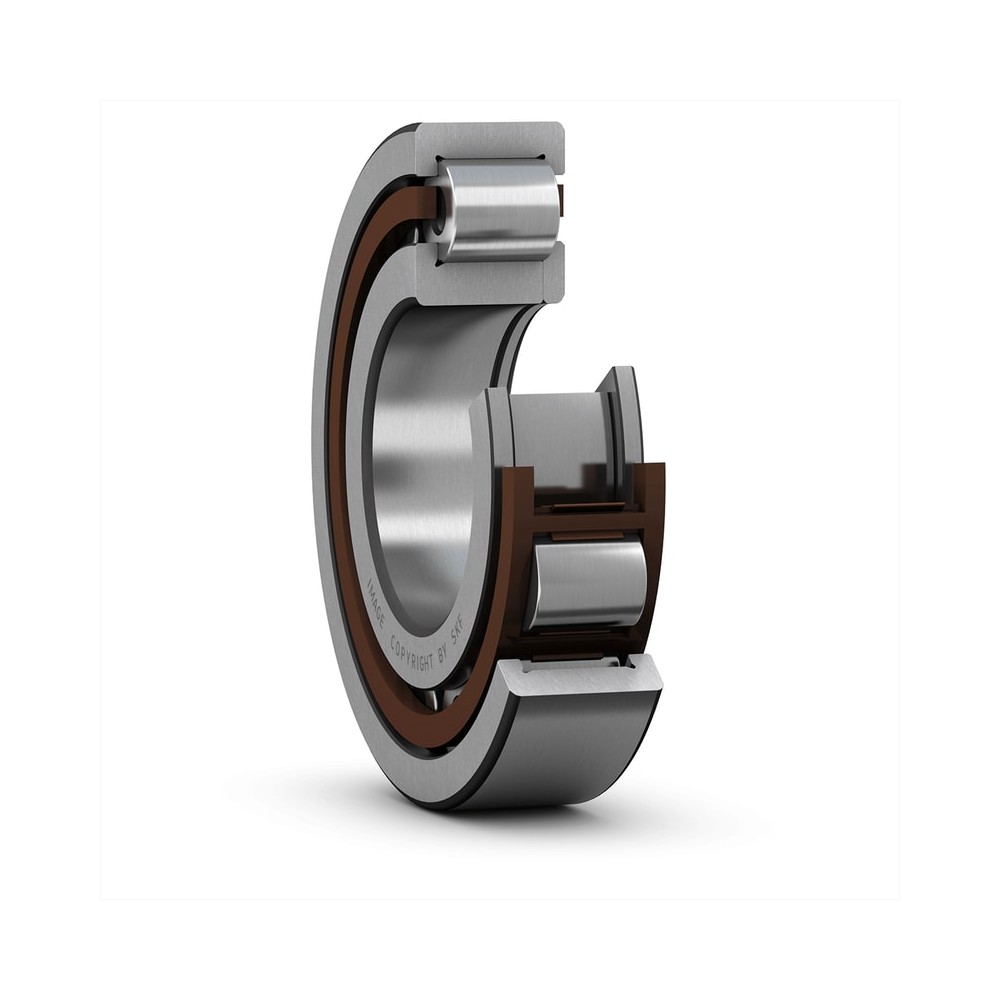

SKF NUP 312 ECP/C3 Cylindrical roller bearings

SKF NUP 312 ECP/C3 Cylindrical roller bearings

Product Code: NUP 312 ECP/C3
Part/No: 042062
Brand: SKF
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one integral flange and one loose flange ring on the inner ring, NUP design bearings can locate the shaft axially in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in both directions
Separable design
€530.86
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Dimensions
Bore diameter 60 mm
Outside diameter 130 mm
Width 31 mm
Performance
Basic dynamic load rating 173 kN
Basic static load rating 160 kN
Limiting speed 6,700 r/min
Reference speed 5,600 r/min
Properties
SKF performance class SKF Explorer
Sealing Without
Bore type Cylindrical
Cage Nonmetallic
Locating feature bearing outer ring None
Lubricant None
Number of rows 1
Radial internal clearance C3
Relubrication feature Without
Tolerance class Normal
Bearing part Complete bearing
Number of flanges inner ring 1
Number of flanges outer ring 2
Coating Without
Axial displacement capability None
Logistics
Pack gross weight 1.939 kg
EAN 7316570382860
Product net weight 1.93
